Icom IC-M2A Instruction Manual page 24

7

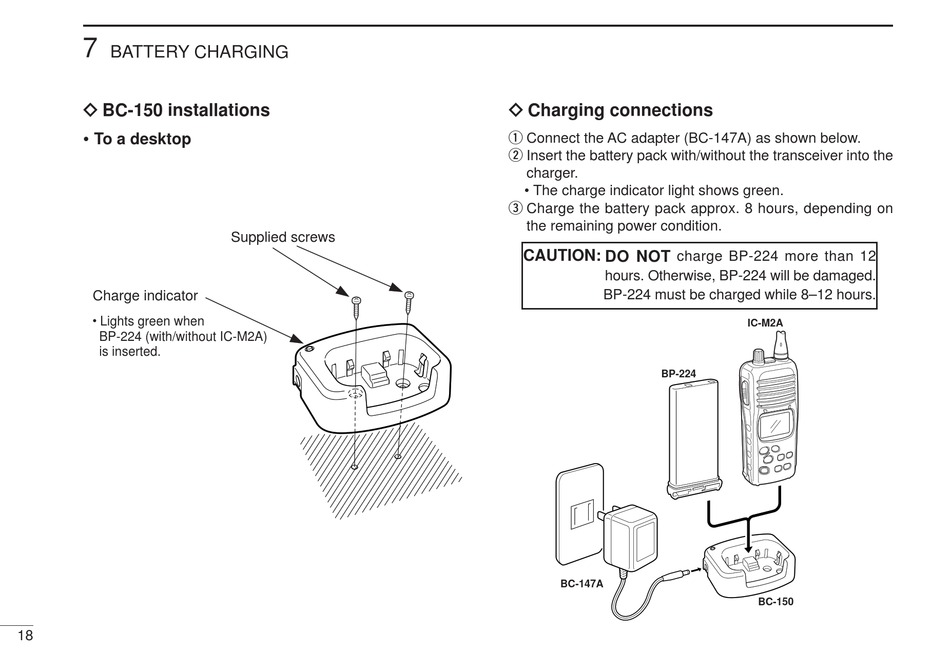

BATTERY CHARGING
ï BC-150 installations
•
To a desktop
Charge indicator
Lights green when
BP-224 (with/without IC-M2A)
is inserted.
18
Supplied screws
ï Charging connections
q Connect the AC adapter (BC-147A) as shown below.
w Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator light shows green.
e Charge the battery pack approx. 8 hours, depending on
the remaining power condition.
CAUTION: DO NOT
charge BP-224 more than 12
hours. Otherwise, BP-224 will be damaged.
BP-224 must be charged while 8–12 hours.
BP-224
BC-147A
IC-M2A
BC-150
