1.4 Server Chassis Features

Control Panel

The switches and LEDs located on the control panel are described below. The control panel
is located next to the left handle of the chassis. See Chapter 4 for details on the control panel
connections.
1
Item Feature
1 Power Button
2 Reset Button
3 Power LED
4 HDD LED
5 NIC1 LED
6 NIC2 LED
7 Information LED
2 3

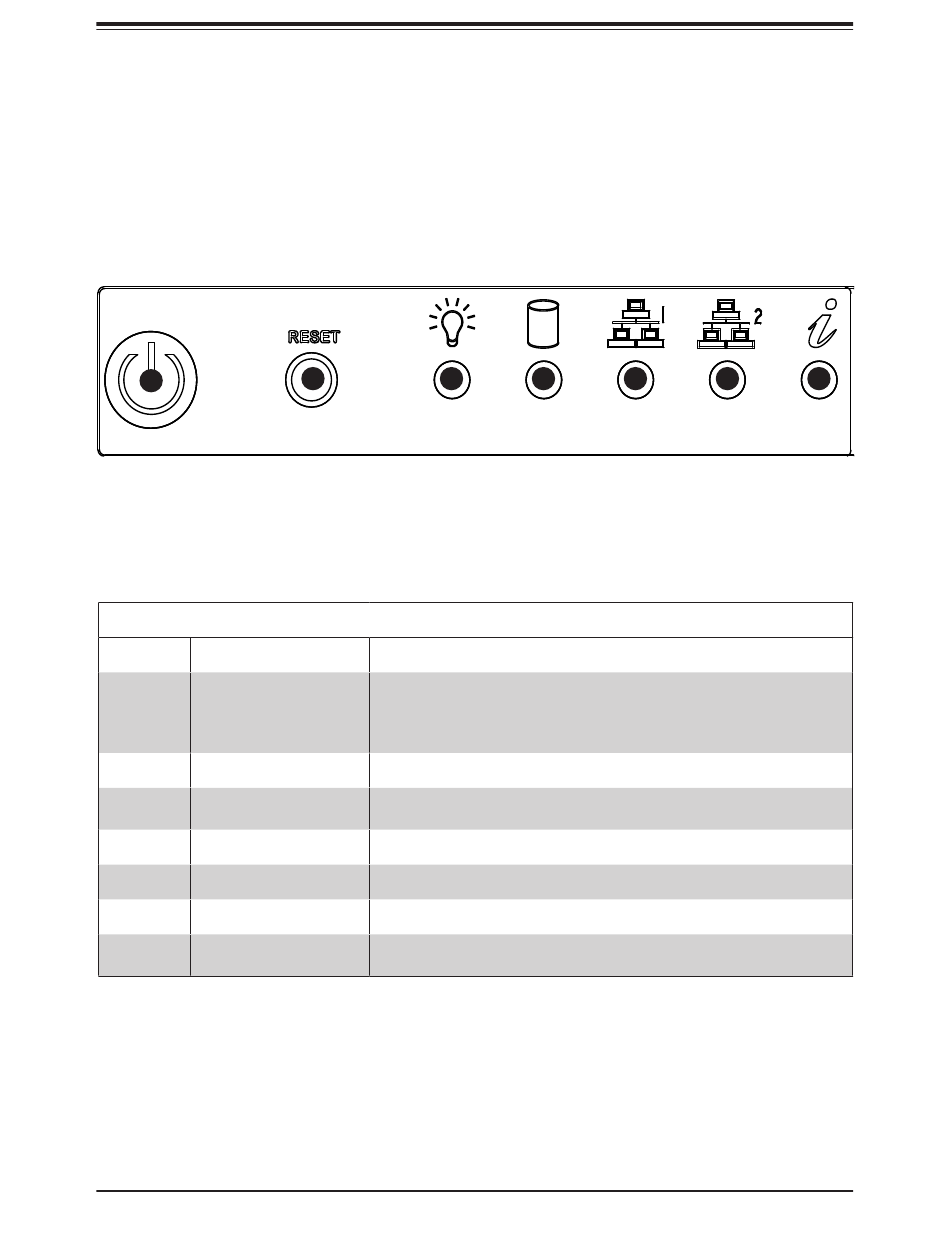

Figure 1-1. Control Panel View
Control Panel Features
Description
The main power button is used to apply or remove power from the power supply
to the server. Turning off system power with this button removes the main power
but maintains standby power. To perform maintenance tasks, you must also
unplug the system before servicing.
The reset button is used to reboot the system.
Indicates power is being supplied to the system power supply. This LED should
normally be illuminated when the system is operating.
Indicates hard drive activity when flashing.
Indicates network activity on LAN port 1 when flashing.
Indicates network activity on LAN port 2 when flashing.
Indicates one of multiple conditions. Refer to the following table for more
information.
9
Chapter 1: Introduction
4 5 6 7
