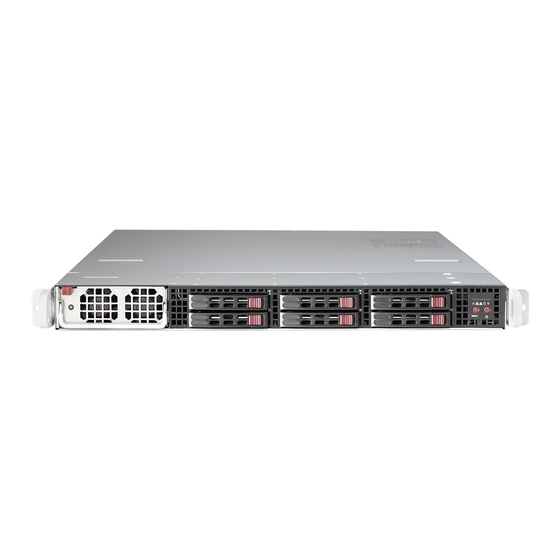

SuperServer
®
1019GP-TT
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperServer 1019GP-TT and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SuperServer 1019GP-TT

Summary of Contents for Supermicro SuperServer 1019GP-TT

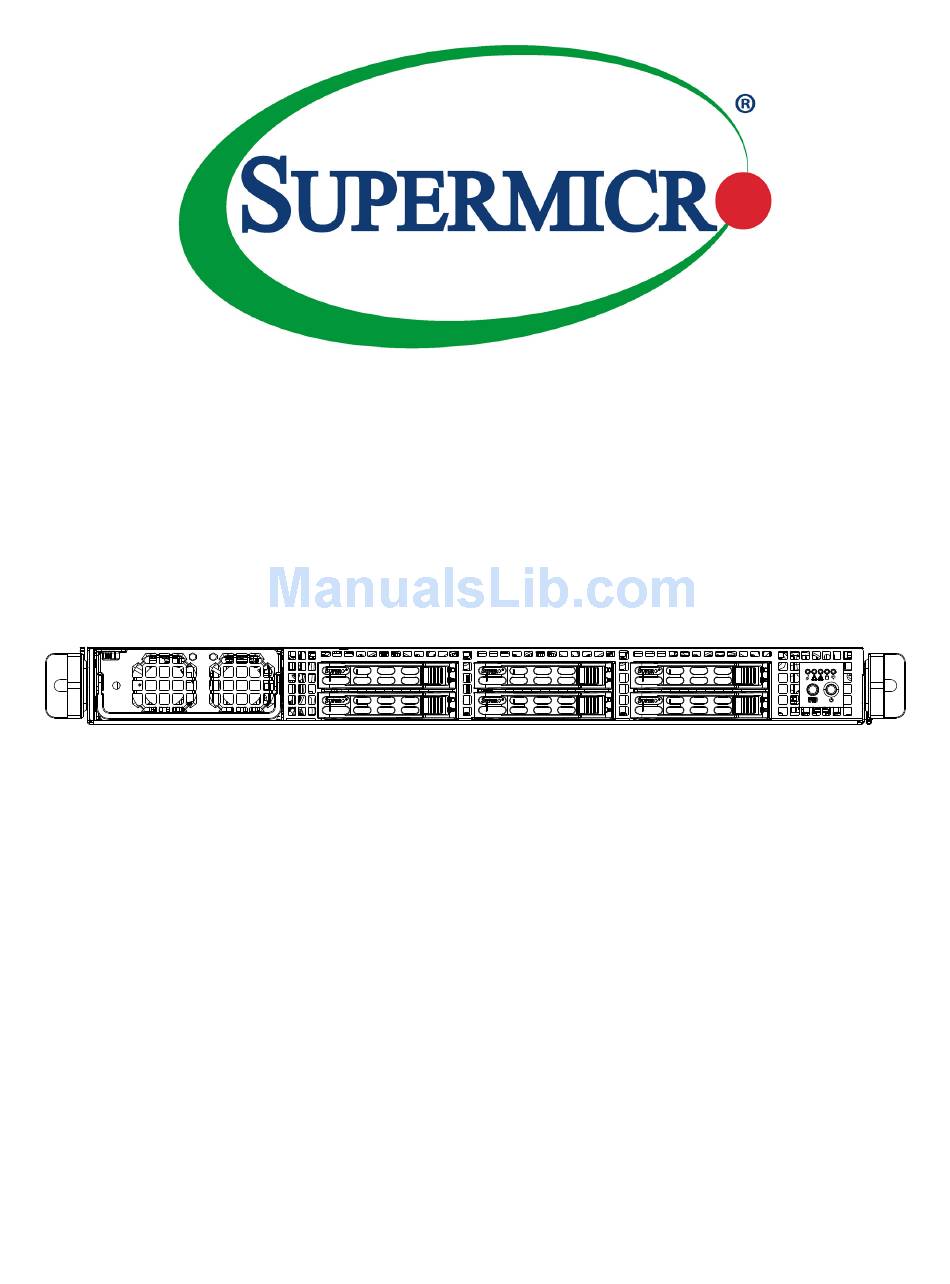

  • Page 1 SuperServer ® 1019GP-TT USER'S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

  • Page 3: About This Manual

    About this Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 1019GP-TT. Installation and maintenance should be performed by experienced technicians only. Please refer to the 1019GP-TT server specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).
  • Page 4 Preface Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Server Chassis Features ....................10 Control Panel ........................10 Front Features ........................11 Rear Features ........................12 1.5 Motherboard Layout ......................13 Quick Reference Table ......................14 Chapter 2 Server Installation 2.1 Overview ..........................17 2.2 Preparing for Setup ......................17 Choosing a Setup Location ....................17...
  • Page 5 SuperServer 1019GP-TT User's Manual 3.3 Motherboard Components ....................27 Processor and Heatsink Installation ..................27 Overview of the Processor Socket Assembly ..............28 Overview of the Processor Heatsink Module (PHM) ............29 Attaching the Non-F Model Processor to the Processor Clip to Create the Processor Carrier Assembly .......................30...
  • Page 6 Preface Rear I/O Ports ........................55 4.5 Jumpers ..........................58 Explanation of Jumpers ....................58 4.6 LED Indicators ........................60 Chapter 5 Software 5.1 OS Installation ........................62 Installing the Windows OS for a RAID System ..............62 Installing Windows to a Non-RAID System ..............62 5.2 Driver Installation ........................63 5.3 SuperDoctor 5 ........................64 ®...

  • Page 7: Contacting Supermicro

    SuperServer 1019GP-TT User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 8: Overview

    1 set 1.2 Unpacking the System Inspect the box the SuperServer 1019GP-TT was shipped in and note if it was damaged in any way. If any equipment appears damaged, please file a damage claim with the carrier who delivered it.

  • Page 9: System Features

    Chapter 1: Introduction 1.3 System Features The following table provides you with an overview of the main features of the 1019GP-TT. Please refer to Appendix C for additional specifications. System Features Motherboard X11SPG-TF Chassis SC118GTS-1K43BP Supports an Intel Xeon 81xx/61xx/51xx/41xx/31xx series (Socket P0-LGA3647) processor with a thermal design power (TDP) of up to 205W and 28 cores Socket Type Socket P0-LGA3647...

  • Page 10: Server Chassis Features

    SuperServer 1019GP-TT User's Manual 1.4 Server Chassis Features Control Panel The switches and LEDs located on the control panel are described below. See Chapter 4 for details on the control panel connections. Figure 1-1. Control Panel View Control Panel Features...

  • Page 11: Front Features

    Chapter 1: Introduction Front Features The SC118GTS-1K43BP is a 1U chassis See the illustration below for the features included on the front of the chassis. Figure 1-2. Chassis Front View Front Chassis Features Item Feature Description Power Supply 1400W power supply Drive Carriers Hot-swap 2.5"...

  • Page 12: Rear Features

    SuperServer 1019GP-TT User's Manual Rear Features The illustration below shows the features included on the rear of the chassis. Figure 1-3. Chassis Rear View Rear Chassis Features Item Feature Description GPU Card Slots Slots for add-on GPU cards (2x left side, 2x right side) I/O Backpanel Rear I/O ports (see Section 4.3 for full details)

  • Page 13: Motherboard Layout

    Chapter 1: Introduction 1.5 Motherboard Layout Below is a layout of the X11SPG-TF with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4. IPMI_LAN JPTG1 USB0...

  • Page 14: Quick Reference Table

    SuperServer 1019GP-TT User's Manual Quick Reference Table Jumper Description Default Setting JBT1 CMOS Clear Open (Normal) JPG1 VGA Enable/Disable Pins 1-2 (Enabled) JPME2 ME Manufacturing Mode Pins 1-2 (Normal) JPTG1 LAN Enable/Disable Pins 1-2 (Enabled) JWD1 Watch Dog Timer Pins 1-2 (Reset)
  • Page 15 Chapter 1: Introduction Connector Description MH10, MH12 M.2 Mounting Holes SLOT3 Middle CPU PCI-E 3.0 x16 Slot Internal Speaker/Buzzer S-SATA0, S-SATA1 SATA 3.0 ports with SATA DOM Power SXB1A, SXB1B Left PCI-E 3.0 x16 GPU Slot SXB2A, SXB2B Right PCI-E 3.0 x16 GPU Slot USB0, USB1 Back Panel Universal Serial Bus (USB) 2.0 Ports USB2/3...
  • Page 16 SuperServer 1019GP-TT User's Manual VCCP0 12v VR13 5+1 PHASE #F-1 #C-1 205W #E-1 #B-1 #D-1 #A-1 VCCP0 SNB CORE PECI:30 DDR-IV SOCKET ID:0 DMI3 DMI3 PCI-E X16 G3 PCI-E X16 G3 PCI-E X16 G3 6.0 Gb/S PCI-E X4 G3 #8~11 M.2 SSD...

  • Page 17: Overview

    SuperServer 1019GP-TT User's Manual Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory etc., refer to Chapter 4 for details on installing those specific components.

  • Page 18: Server Precautions

    Chapter 2: Server Installation • Always make sure the rack is stable before extending a server or other component from the rack. • You should extend only one server or component at a time - extending two or more simul- taneously may cause the rack to become unstable.

  • Page 19: Circuit Overloading

    SuperServer 1019GP-TT User's Manual Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

  • Page 20: Installing The Rails

    Chapter 2: Server Installation 2.3 Installing the Rails There are a variety of rack units on the market, which may require a slightly different assembly procedure. The following is a basic guideline for installing the system into a rack with the rack mounting hardware provided.

  • Page 21: Installing The Optional Inner Rail Extensions

    SuperServer 1019GP-TT User's Manual Installing the Optional Inner Rail Extensions Attaching the optional inner rail extensions allows you to pull the server farther out of the rack. Do not put downward force on the chassis when it is fully extended.

  • Page 22: Installing The Outer Rails Onto The Rack

    Chapter 2: Server Installation Secure to the rear of the rack Slide outer rails together Round Hole Secure to the front of the rack Assembling the sections of the outer rail Outer rail assembled Bracket with Square Pegs Figure 2-3. Assembling the Outer Rails Installing the Outer Rails onto the Rack Each end of the assembled outer rail includes a bracket with square pegs to fit into your rack holes.

  • Page 23: Sliding The Chassis Onto The Rack Rails

    SuperServer 1019GP-TT User's Manual Figure 2-4. Installing the Outer Rails to the Rack Note: Figure is for illustrative purposes only. Always install servers to the bottom of a rack first. Warning: Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing.

  • Page 24: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Figure 2-5. Installing the Server into a Rack Note: Figure is for illustrative purposes only. Always install servers to the bottom of a rack first. Installing the Server into a Telco Rack Optional brackets (p/n MCP-290-00016-0N) are needed to install the server to a two post (telco type) rack.
  • Page 25 SuperServer 1019GP-TT User's Manual Figure 2-6. Installing the Server into a Telco Rack Note: Figures are for illustrative purposes only. Always install servers to the bottom of a rack first.

  • Page 26: Removing Power

    SuperServer 1019GP-TT User's Manual Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 27: Motherboard Components

    CPU socket cap is in place and that none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. • Please follow the instructions given in the ESD Warning section on the first page of this chapter before handling, installing, or removing system components.

  • Page 28: Overview Of The Processor Socket Assembly

    SuperServer 1019GP-TT User's Manual Overview of the Processor Socket Assembly The processor socket assembly contains 1) the Intel processor, 2) the processor clip, 3) the dust cover, and 4) the CPU socket. Note: Be sure to cover the CPU socket with the dust cover when the CPU is not installed.

  • Page 29: Overview Of The Processor Heatsink Module (Phm)

    Chapter 3: Maintenance and Component Installation Overview of the Processor Heatsink Module (PHM) The Processor Heatsink Module (PHM) contains 1) a heatsink, 2) a processor clip, and 3) the processor. 3. Processor 2. Processor Clip 1. Heatsink (Bottom View for a non-F Model)

  • Page 30: Attaching The Non-F Model Processor To The Processor Clip To Create The Processor Carrier Assembly

    SuperServer 1019GP-TT User's Manual Attaching the Non-F Model Processor to the Processor Clip to Create the Processor Carrier Assembly To properly install the CPU into the processor clip, please follow the steps below. 1. Locate pin 1 (notch A), which is the triangle located on the top of the processor clip.

  • Page 31: Attaching The Non-F Model Processor Carrier Assembly To The Heatsink To Form The Processor Heatsink Module (Phm)

    Chapter 3: Maintenance and Component Installation Attaching the Non-F Model Processor Carrier Assembly to the Heatsink to Form the Processor Heatsink Module (PHM) After you have made a processor carrier assembly by following the instructions on the previous page, please follow the steps below to mount the processor carrier assembly onto the heatsink to create the Processor Heatsink Module (PHM).

  • Page 32: Preparing The Cpu Socket For Installation

    Remove the dust cover from the CPU socket. Do not touch the socket pins! Socket Pins Figure 3-3. Removing the Dust Cover from the CPU Socket Note: Visit the product page on the Supermicro website for possible updates to CPU support (www.supermicro.com).

  • Page 33: Installing The Processor Heatsink Module (Phm)

    Chapter 3: Maintenance and Component Installation Installing the Processor Heatsink Module (PHM) 1. Once you have assembled the processor heatsink module (PHM) by following the instructions listed on page 29, you are ready to install the processor heatsink module (PHM) into the CPU socket on the motherboard. To install the PHM into the CPU socket, follow the instructions below.

  • Page 34: Removing The Processor Heatsink Module (Phm) From The Motherboard

    SuperServer 1019GP-TT User's Manual Removing the Processor Heatsink Module (PHM) from the Motherboard Before removing the processor heatsink module (PHM), unplug power cord from the power outlet. 1. Using a T30 Torx-bit screwdriver, turn the screws on the PHM counterclockwise to loosen them from the socket, starting with the screw marked #4 (in the sequence of 4, 3, 2, 1).

  • Page 35: Memory Support And Installation

    Chapter 3: Maintenance and Component Installation Memory Support and Installation Note: Check the Supermicro website for recommended memory modules. Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Memory Support The X11SPG-TF supports up to 192GB of RDIMM, 384GB of LRDIMM, and 768GB of 3DS LRDIMM ECC DDR4-2666 memory in six memory slots.

  • Page 36: Dimm Module Population Sequence

    SuperServer 1019GP-TT User's Manual DIMM Module Population Sequence When installing memory modules, the DIMM slots must be populated in the following order: DIMMA1, DIMMD1, DIMMB1, DIMME1, DIMMC1, DIMMF1. • Always use DDR4 memory of the same type, size and speed.

  • Page 37: Pci Expansion Card Installation

    Chapter 3: Maintenance and Component Installation PCI Expansion Card Installation The SC118GTS chassis includes slots for two double-width, high-end graphics processing units (GPUs), in the areas shown below. Alternatively, these slots can house four full-height PCI-Express expansion cards. The chassis also supports one low profile PCI-E expansion card.
  • Page 38 SuperServer 1019GP-TT User's Manual Screwdriver Icon Riser Card Bracket Riser Card Low Profile Expansion Card Figure 3-5. Installing the Riser and Expansion Cards to the Bracket...

  • Page 39: Chassis Components

    Chapter 3: Maintenance and Component Installation 3.4 Chassis Components Front Bezel If your system has an optional bezel attached to the front of the chassis, you will need to remove it to gain access to the drive bays. 1. Unlock the front of the chassis and then press the release knob. 2.

  • Page 40: Hard Drive Carrier Indicators

    See the table below for details. Figure 3-7. Removing a Drive Carrier Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro website at https://www.

  • Page 41: Installing The Air Shroud

    Chapter 3: Maintenance and Component Installation Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system as described in section 3.1. 1.

  • Page 42: Checking The Air Flow

    SuperServer 1019GP-TT User's Manual Figure 3-12. Installing the Air Shroud Checking the Air Flow 1. Make sure there are no wires or other objects obstructing the airflow in and out of the server. Pull all excess cabling out of the airflow path or use shorter cables.
  • Page 43 Chapter 3: Maintenance and Component Installation Replacing a System Fan If the IPMI is not utilized to determine which fan has failed, open the top cover of the chassis while the system is running to locate the position of the failed fan. Never run the server for an extended period of time with the top cover open.

  • Page 44: Adding Additional Fans

    SuperServer 1019GP-TT User's Manual Adding Additional Fans Some SC118GTS chassis may be configured with extra space to provide room for an optional additional fan tray, should additional cooling be required. Adding an Additional System Fan Tray Begin by removing power from the system as described in Section 3.1 and removing the cover as described in Section 3.2.

  • Page 45: Power Supply

    Power Supply Replacement If the power supply unit fails, the system will shut down and you will need to replace the unit. Replacement units can be ordered directly from Supermicro. Replacing the Power Supply 1. If the system is still running, power down the system as described in Section 3.1.

  • Page 46: Power Connections

    SuperServer 1019GP-TT User's Manual Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A serverboard layout indicating component locations may be found in Appendix B.

  • Page 47: Headers And Connectors

    Chapter 4: Motherboard Connections 8-Pin Power Connector JPWR6 is an 8-pin 12V DC power connector for the GPU. Refer to the table below for pin definitions.. 8-pin Power Pin Definitions Pin# Definition 1 - 4 Ground 5 - 8 P12V (12V Power) Required Connection 4.2 Headers and Connectors Fan Headers...
  • Page 48 SuperServer 1019GP-TT User's Manual Disk-On-Module Power Connector The Disk-On-Module (DOM) power connectors at JSD1 and JSD2 provide 5V power to a solid-state DOM storage device connected to one of the SATA ports. See the table below for pin definitions. DOM Power...
  • Page 49 Ground No Connection NVMe I C Header Connector JNVI C1 is a management header for the Supermicro AOC NVMe PCI-E peripheral cards. Please connect the I C cable to this connector. Power SMB (I C) Header The Power System Management Bus (I...

  • Page 50: Chassis Intrusion

    SuperServer 1019GP-TT User's Manual Chassis Intrusion A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to the header to inform you when the chassis is opened. Chassis Intrusion Pin Definitions Pins...
  • Page 51 Intel PCH C621 chipset. SATA ports provide serial-link signal connections, which are faster than the connections of Parallel ATA. Note: Supermicro SuperDOMs are yellow SATADOM connectors with power pins built in and do not require separate external power cables. These connectors are backwards compatible with non-Supermicro SATADOMS that require an external power supply.

  • Page 52: Front Control Panel

    JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.
  • Page 53 Chapter 4: Motherboard Connections Power Fail LED The Power Fail LED connection is located on pins 5 and 6 of JF1. Refer to the table below for pin definitions. Power Fail LED Pin Definitions (JF1) Pin# Definition 3.3V PWR Supply Fail Overheat (OH)/Fan Fail Connect an LED cable to pins 7 and 8 of the Front Control Panel to use the Overheat/Fan Fail LED connections.
  • Page 54 SuperServer 1019GP-TT User's Manual Power LED The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for pin definitions. Power LED Pin Definitions (JF1) Pins Definition 3.3V PWR LED NMI Button The non-maskable interrupt (NMI) button header is located on pins 19 and 20 of JF1. Refer to the table below for pin definitions.

  • Page 55: Ports

    Chapter 4: Motherboard Connections 4.4 Ports Rear I/O Ports See the figure below for the locations and descriptions of the various I/O ports on the rear of the motherboard. Figure 4-2. Rear I/O Ports Rear I/O Ports Description No. Description No.
  • Page 56 SuperServer 1019GP-TT User's Manual Universal Serial Bus (USB) Ports There are two USB 2.0 ports (USB0, USB1) and two USB 3.0 ports (USB4/5) located on the I/O back panel. The motherboard also has one front access USB 2.0 header (USB2/3) and one front access USB 3.0 header (USB6/7).
  • Page 57 Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://Www.supermicro.com. UID Switch...

  • Page 58: Jumpers

    SuperServer 1019GP-TT User's Manual 4.5 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.
  • Page 59 Chapter 4: Motherboard Connections VGA Enable/Disable JPG1 allows you to enable or disable the VGA port using the onboard graphics controller. The default setting is Enabled. VGA Enable/Disable Jumper Settings Jumper Setting Definition Pins 1-2 Enabled Pins 2-3 Disabled Watch Dog JWD1 controls the Watch Dog function.

  • Page 60: Led Indicators

    SuperServer 1019GP-TT User's Manual 4.6 LED Indicators LAN LEDs Two LAN ports (LAN 1 and LAN 2) are located on the I/O back panel of the motherboard. Each Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link LED may be green, amber, or off to indicate the speed of the connection.
  • Page 61 Chapter 4: Motherboard Connections Onboard Power LED The Onboard Power LED is located at LE2 on the motherboard. When this LED is on, the system is on. Be sure to turn off the system and unplug the power cord before removing or installing components.

  • Page 62: Os Installation

    You must first configure RAID settings (if using RAID) before you install the Windows OS and the software drivers. To configure RAID settings, please refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals. Installing the Windows OS for a RAID System 1.

  • Page 63: Driver Installation

    Chapter 5: Software 5.2 Driver Installation The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp.supermicro. com. Some of these must be installed, such as the chipset driver. After accessing the FTP site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 64: Superdoctor ® 5

    5.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 65: Ipmi

    The X11SPG-TF support the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, please visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm.

  • Page 66: Starting The Setup Utility

    SuperServer 1019GP-TT User's Manual Chapter 6 BIOS 6.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 67: Main Setup

    Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after RTC reset. Supermicro X11SPG-TF BIOS Version This item displays the version of the BIOS ROM used in the system.
  • Page 68 SuperServer 1019GP-TT User's Manual CPLD Version This item displays the Complex Programmable Logic Device version. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 69: Advanced Setup Configurations

    Chapter 6: BIOS 6.3 Advanced Setup Configurations Use the arrow keys to select the Advanced menu and press <Enter> to access the submenu items: Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to default manufacturer settings.
  • Page 70 SuperServer 1019GP-TT User's Manual Wait For "F1" If Error Use this feature to force the system to wait until the "F1" key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...

  • Page 71: Cpu Configuration

    Chapter 6: BIOS Power Button Function This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button.
  • Page 72 SuperServer 1019GP-TT User's Manual Execute Disable Bit (Available if supported by the OS & the CPU) Select Enable to enable the Execute-Disable Bit, which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or virus from flooding illegal codes to overwhelm the processor or damage the system during an attack.

  • Page 73: Advanced Power Management Configuration

    Chapter 6: BIOS AES-NI Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Disable and Enable. Advanced Power Management Configuration Power Technology This feature allows the user to configure CPU power management settings. The options are Disable, Energy Efficient, and Custom.
  • Page 74 SuperServer 1019GP-TT User's Manual EIST PSD Funtion This feature allows the user to choose between Hardware and Software to control the processor's frequency and performance (P-state). In HW_ALL mode, the processor hard- ware is responsible for coordinating the P-state, and the OS is responsible for keeping the P-state request up to date on all Logical Processors.

  • Page 75: Chipset Configuration

    Chapter 6: BIOS Package C State Control Package C State This feature allows the user to set the limit on the C State package register. The options are C0/C1 State, C2 State, C6 (Non Retention) State, C6 (Retention) State, No Limit, and Auto.
  • Page 76 SuperServer 1019GP-TT User's Manual Link L0p Enable Select Enable for the QPI to enter the L0p state for power saving. The options are Dis- able, Enable, and Auto. Link L1 Enable Select Enable for the QPI to enter the L1 state for power saving. The options are Dis- able, Enable, and Auto.

  • Page 77: Memory Configuration

    Chapter 6: BIOS Stale AtoS This feature optimizes A to S directory. When all snoop responses found in directory A are found to be RspI, then all data is moved to directory S and is returned in S-state. The options are Disable, Enable, and Auto. LLC Dead Line Alloc Select Enable to optimally fill dead lines in LLC.

  • Page 78: Memory Topology

    SuperServer 1019GP-TT User's Manual 2X REFRESH Use this feature to select the memory controller refresh rate to 2x refresh mode. The options are Auto and Enable. Page Policy This feature allows the user to determine the desired page mode for IMC. When Auto is selected, the memory controller will close or open pages based on the current operation.

  • Page 79: Iio Configuration

    Chapter 6: BIOS SDDC Plus One Single device data correction +1 (SDDC Plus One) organizes data in a single bundle (x4/x8 DRAM). If any or all the bits become corrupted, corrections occur. The x4 con- dition is corrected on all cases. The x8 condition is corrected only if the system is in Lockstep Mode.
  • Page 80 SuperServer 1019GP-TT User's Manual IOU2 (II0 PCIe Br3) This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.  IOAT Configuration Disable TPH Transparent Huge Pages (TPH) is a Linux memory management system that enables communication in larger blocks (pages).
  • Page 81 Chapter 6: BIOS Use this feature to enable Non-Isoch VT-d Engine Address Translation Services (ATS) support. ATS translates virtual addresses to physical addresses. The options are En- able and Disable. Posted Interrupt Use this feature to enable VT_D Posted Interrupt. The options are Enable and Disable. Coherency Support (Non-Isoch) Use this feature to maintain setting coherency between processors or other devices.

  • Page 82: South Bridge

    SuperServer 1019GP-TT User's Manual VMD Config for PStack2 Intel® VMD for Volume Management Device Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable. *If the item above is set to Enable, the following items will be dislayed: CPU SLOT3 PCI-E 3.0 x16 VMD (Available when the device is detected by...

  • Page 83: Server Me Configuration

    Chapter 6: BIOS Server ME Configuration  The following General ME Configuration will display: • Oper. Firmware Version • Backup Firmware Version • Recovery Firmware Version • ME Firmware Status #1 • ME Firmware Status #2 • Current State • Error Code PCH SATA Configuration ...
  • Page 84 SuperServer 1019GP-TT User's Manual SATA RSTe Boot Info Select Enable to provide full int13h support for the devices attached to SATA controller. The options are Disable and Enable. SATA RAID Option ROM/UEFI Driver Select UEFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot.
  • Page 85 Chapter 6: BIOS SATA HDD Unlock This feature allows the user to remove any password-protected SATA disk drives. The options are Disable and Enable. Aggressive Link Power Management When this item is set to Enable, the SATA AHCI controller manages the power usage of the SATA link.
  • Page 86 SuperServer 1019GP-TT User's Manual PCIe/PCI/PnP Configuration  The following information will display: • PCI Bus Driver Version • PCI Devices Common Settings: Above 4G Decoding (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address.

  • Page 87: Network Stack Configuration

    Chapter 6: BIOS VGA Priority Use this feature to select VGA priority when multiple VGA devices are detected. Select On- board to give priority to your onboard video device. Select Offboard to give priority to your graphics card. The options are Onboard and Offboard. M.2-H_1 PCI-E 3.0 x4 OPROM Use this feature to select which firmware type to be loaded for the add-on card in this slot.

  • Page 88: Super Io Configuration

    SuperServer 1019GP-TT User's Manual Ipv6 PXE Support Select Enabled to enable IPv6 PXE boot support. The options are Disabled and Enabled. Ipv6 HTTP Support Select Enabled to enable IPv6 HTTP boot support. The options are Disabled and Enabled. PXE Boot Wait Time Use this option to specify the wait time to press the ESC key to abort the PXE boot.

  • Page 89: Serial Port Console Redirection

    Chapter 6: BIOS Serial Port Console Redirection  SOL/COM1 Console Redirection Select Enabled to enable console redirection support for a serial port specified by the user. The options are Enabled and Disabled. *If the item above is set to Enabled, the following items will become available for configuration: SOL/COM1 Console Redirection Settings Use this feature to specify how the host computer will exchange data with the client...
  • Page 90 SuperServer 1019GP-TT User's Manual Flow Control Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

  • Page 91: Acpi Settings

    Chapter 6: BIOS *If the item above is set to Enabled, the following items will become available for configuration: EMS Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Out-of-Band Mgmt Port The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server.

  • Page 92: Trusted Computing

    SuperServer 1019GP-TT User's Manual High Precision Event Timer Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU.

  • Page 93: Iscsi Configuration

    Chapter 6: BIOS TXT Support Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confidentiality and integrity of data stored or created on the system. Use this feature to enable to disable TXT Suppport. The options are Disabled and Enabled. iSCSI Configuration ...

  • Page 94: Event Logs

    SuperServer 1019GP-TT User's Manual 6.4 Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Change this item to enable or disable all features of the SMBIOS Event Logging during system boot.

  • Page 95: View Smbios Event Log

    Chapter 6: BIOS SMBIOS Event Log Standard Settings Log System Boot Event This option toggles the System Boot Event logging to enabled or disabled. The options are Disabled and Enabled. MECI The Multiple Event Count Increment (MECI) counter counts the number of occurences that a duplicate event must happen before the MECI counter is incremented.

  • Page 96: Ipmi

    SuperServer 1019GP-TT User's Manual 6.5 IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system.

  • Page 97: Bmc Network Configuration

    Chapter 6: BIOS When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.
  • Page 98 SuperServer 1019GP-TT User's Manual Station MAC Address This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers. Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

  • Page 99: Security

    Chapter 6: BIOS 6.6 Security This menu allows the user to configure the following security settings for the system. Administrator Password Press Enter to create a new, or change an existing, Administrator password. Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility.
  • Page 100 SuperServer 1019GP-TT User's Manual CSM Support Select Enabled to support the EFI Compatibility Support Module (CSM), which provides compatibility support for traditional legacy BIOS for system boot. The options are Enabled and Disabled.  Key Management This submenu allows the user to configure the following Key Management settings.
  • Page 101 Chapter 6: BIOS Append Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.  Authorized Signatures Set New Select Yes to load the database from the manufacturer's defaults. Select No to load the DB from a file.
  • Page 102 SuperServer 1019GP-TT User's Manual  OsRecovery Signature This item uploads and installs an OSRecovery Signature. You may insert a factory default key or load from a file. The file formats accepted are: 1) Public Key Certificate a. EFI Signature List b.

  • Page 103: Boot

    Chapter 6: BIOS 6.7 Boot Use this feature to configure Boot settings. Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and Dual. Legacy to EFI Support Select Enabled to boot EFI OS support after Legacy boot order has failed.
  • Page 104 SuperServer 1019GP-TT User's Manual • Legacy/UEFI/Dual Boot Option #6 • Legacy/UEFI/Dual Boot Option #7 • Legacy/UEFI/Dual Boot Option #8 • UEFI/Dual Boot Option #9 • Dual Boot Option #10 • Dual Boot Option #11 • Dual Boot Option #12 •...
  • Page 105 Chapter 6: BIOS *If any storage media is detected, the following items will become available for configuration:  Add New Boot Option This feature allows the user to add a new boot option to the boot priority features for your system.

  • Page 106: Save & Exit

    SuperServer 1019GP-TT User's Manual 6.8 Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below: Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer.
  • Page 107 Chapter 6: BIOS Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save As User Defaults To set this feature, select Save as User Defaults from the Save &...
  • Page 108 SuperServer 1019GP-TT User's Manual Appendix A BIOS Codes A.1 BIOS Error POST (Beep) Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 109 When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.
  • Page 110 Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 111 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

  • Page 112: Installation Instructions

    SuperServer 1019GP-TT User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬...

  • Page 113: Circuit Breaker

    Appendix B: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 114 SuperServer 1019GP-TT User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.

  • Page 115: Power Disconnection Warning

    Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...

  • Page 116: Equipment Installation

    SuperServer 1019GP-TT User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원...

  • Page 117: Restricted Area

    Appendix B: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 118 SuperServer 1019GP-TT User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial,...

  • Page 119: Battery Handling

    Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...

  • Page 120: Redundant Power Supplies

    SuperServer 1019GP-TT User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제...
  • Page 121 Appendix B: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.

  • Page 122: Backplane Voltage

    SuperServer 1019GP-TT User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.

  • Page 123: Comply With Local And National Electrical Codes

    Appendix B: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.

  • Page 124: Product Disposal

    SuperServer 1019GP-TT User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.
  • Page 125 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 126 SuperServer 1019GP-TT User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 127 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 128 ‫.قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح‬ ‫ لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحي‬UL ‫ وأ‬CSA ‫( ةمالع لمحت يتلاو‬UL/CSA) ‫ لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عم‬Supermicro.
  • Page 129 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 130: System Specifications

    SuperServer 1019GP-TT User's Manual Appendix C System Specifications Processors Single Intel Xeon 81xx/61xx/51xx/41xx/31xx processor in an Socket P0-LGA3647 Note: Please refer to the motherboard specifications pages on our website for updates to supported processors. Chipset Intel PCH C621 chipset BIOS 256 Mb AMI®...
  • Page 131 Appendix C: System Specifications Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/3-3, CISPR 22 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) Perchlorate Warning California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products...
  • Page 132 Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 133 USB device or a writable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website www.supermicro.com to download the BIOS image into a USB flash device and rename it to "Super.ROM" for BIOS recovery use.
  • Page 134 SuperServer 1019GP-TT User's Manual 4. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below. Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.
  • Page 135 Appendix D: UEFI BIOS Recovery 6. After the BIOS recovery process is completed, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a USB flash drive. 8. Press <Del> continuously during system boot to enter the BIOS setup utility. From the top of the tool bar, click on Boot and press <Enter>...
  • Page 136 SuperServer 1019GP-TT User's Manual 9. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 7. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process.

Table of Contents
