Supermicro SuperServer User Manual

Hide thumbs Also See for SuperServer:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
S
S
®
UpER
ERvER
1019S-Mp
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SuperServer

Summary of Contents for Supermicro SuperServer

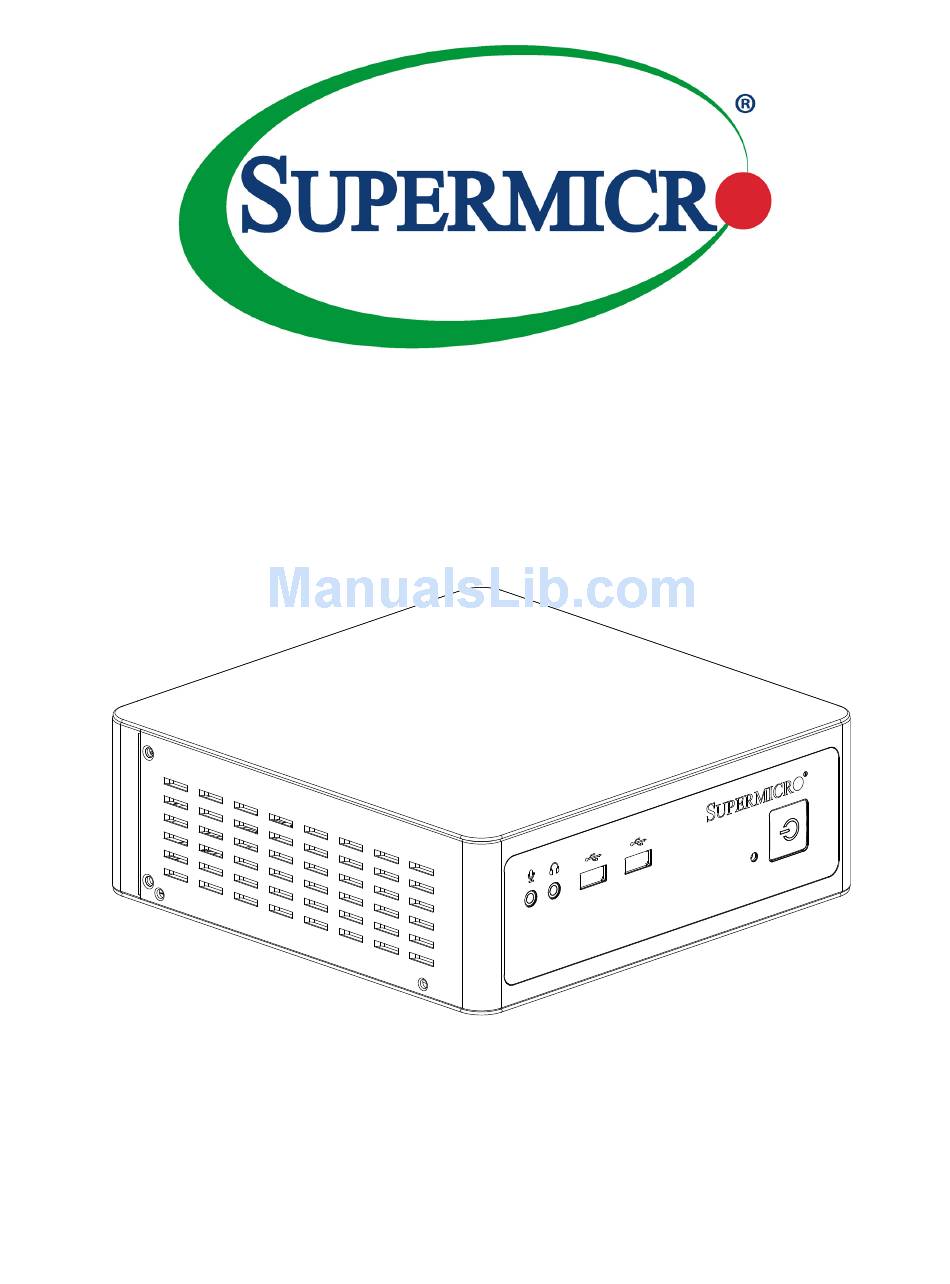

  • Page 1 ® UpER ERvER 1019S-Mp USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

  • Page 3: About This Manual

    About this Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 1019S-MP. Installation and maintainance should be performed by experienced technicians only. Please refer to the 1019S-MP server specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).

  • Page 4: Table Of Contents

    SuperServer 1019S-MP User's Manual Contents Chapter 1 Introduction 1.1 Overview ..........................7 1.2 System Features ........................8 1.3 Chassis Features .........................9 Front Features ........................9 Rear Features ........................10 1.4 Motherboard Layout ......................11 System Block Diagram ......................13 1.5 Server Installation and Setup .....................14 Unpacking the System ......................14 Warnings and Precautions ....................14...
  • Page 5 Preface Chapter 4 Software 4.1 Driver Installation ........................38 4.2 SuperDoctor 5 ........................39 ® 4.3 IPMI ............................40 Chapter 5 BIOS 5.1 Introduction .........................41 Starting the Setup Utility ....................41 5.2 Main Page ..........................42 5.3 Advanced Page ........................43 5.4 Security ..........................63 5.5 Boot Settings ........................66 5.6 Save &...

  • Page 6: Contacting Supermicro

    SuperServer 1019S-MP User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 7: Chapter 1 Introduction

    Introduction 1.1 Overview The SuperServer 1019S-MP is a compact, embedded system comprised of the SC101iF chassis and the X11SSV-M4 single processor motherboard. Refer to our website for information on operating systems that have been certified for use with the system (www.

  • Page 8: System Features

    SuperServer 1019S-MP User's Manual 1.2 System Features The following table provides an overview of the main features of the 1019S-MP system System Features Chassis Mini ITX Box SC101iF Motherboard X11SSV-M4 Single Intel Xeon E3-1515M v5 processor in a FCBGQ 1440 socket;...

  • Page 9: Chassis Features

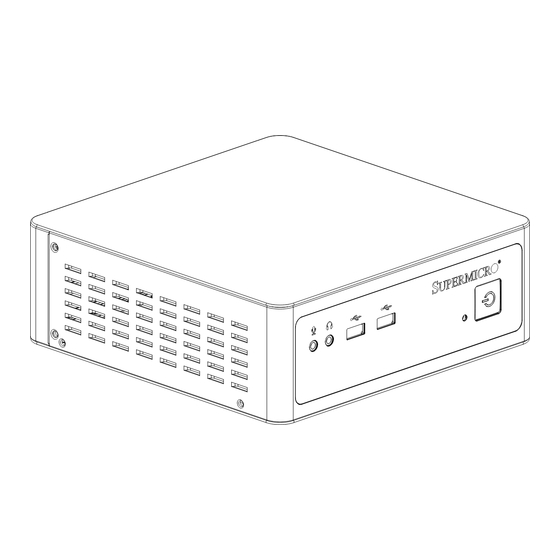

    Chapter 1: Introduction 1.3 Chassis Features The SC101iF is a compact embedded mini-ITX chassis. Front Features Figure 1-1. Chassis Front and Control Panel Front Panel Features Item Features Description The front panel features a power button that displays a multicolored LED. The colors indicate server activity.

  • Page 10: Rear Features

    SuperServer 1019S-MP User's Manual Rear Features The chassis rear holds input/output ports. Figure 1-2. Rear Chassis View Rear Chassis Features Item Features Description Power Input Unplug the system to perform most maintenance tasks, DisplayPort, develped by the VESA consortium, delivers digital display and fast DisplayPort refresh rate.

  • Page 11: Motherboard Layout

    Chapter 1: Introduction 1.4 Motherboard Layout Below is a layout of the X11SSV-M4 motherboard with jumper, connector and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 3. m-PCIE COM1 DVI-I...
  • Page 12 SuperServer 1019S-MP User's Manual Jumper Description Default Setting JBR1 BIOS Recovery Pins 1-2 (Normal) JBT1 CMOS Clear Open (Normal) C1/JI SMB to PCI-E Slots Enable/Disable Pins 2-3 (Disabled) JPAC1 Audio Enable Pins 1-2 (Enabled) JPME1 ME Recovery Pins 1-2 (Normal)

  • Page 13: System Block Diagram

    Chapter 1: Introduction Description Color/State Status BMC: Normal LED2 Power LED Solid Green: Power On System Block Diagram IMVP8 PVCC_CPU ,VCCSA SVID PCIe3.0_x16 IMVP8 PCIe x16 SLOT PVCC_GT ,PVCC_GTX 8.0GT/s INTEL BGA 1440 Digital port D DVI-I DDI 3 DDR4 (CHA) DIMMA1 eDP-to-VGA DDI E...

  • Page 14: Server Installation And Setup

    SuperServer 1019S-MP User's Manual 1.5 Server Installation and Setup The server is shipped with the onboard processor and the motherboard installed in the chassis. Several steps are necessary to begin using your server. You must add memory, mount the hard disk drive, and mount the system in place.

  • Page 15: Installing Mounting Brackets

    Chapter 1: Introduction Installing Mounting Brackets The chassis includes mounting brackets that allow it to be mounted in any convenient space. They may be installed in either of two orientations. Figure 1-3. Brackets Under Chassis Figure 1-4. Brackets Extending from Chassis Installing Mounting Brackets 1.

  • Page 16: Chapter 2 Maintenance And Component Installation

    SuperServer 1019S-MP User's Manual Chapter 2 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 17: Accessing The System

    Chapter 2 Maintenance and Component Installation 2.2 Accessing the System The 1019S-MP features a removable top cover to access to the inside of the chassis. Figure 2-1. Removing the Chassis Cover Removing the Top Cover 1. Power down the system as described in section 2.1. 2.

  • Page 18: Motherboard Components

    2133 MHz, in two slots. Populating these DIMM slots with memory modules of the same type and size will result in interleaved memory, which will improve memory performance. Note: Check the Supermicro website for recommended memory modules. Installing Memory When installing memory modules, the DIMM slots should be populated in the following order: DIMMA1, DIMMB1.

  • Page 19: Removing Memory

    Chapter 2 Maintenance and Component Installation Installing Memory Begin by removing power from the system as described in Section 2.1. 1. Position the SO-DIMM module's bottom key so it aligns with the receptive point on the slot. Take note of the module's side notches and the locking clips on the socket. Align 2.

  • Page 20: Solid State Storage

    SuperServer 1019S-MP User's Manual Solid State Storage This motherboard supports an internally mounted solid state storage card by means of an M.2 slot supporting SATA. JPAC1:AUDIO 1-2:ENABLE 2-3:DISABLE HDMI AUDIO USB3/4 JVRM1 COM1 LAN3/4 LAN1/2 USB1/2 USB9 JVRM2 Intel SRW1...

  • Page 21: Motherboard Battery

    Chapter 2 Maintenance and Component Installation Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Figure 2-4. Installing the Onboard Battery Replacing the Battery 1.

  • Page 22: Chassis Components

    SuperServer 1019S-MP User's Manual 2.4 Chassis Components Installing the Storage Drive The SC101iF chassis can accommodate a single fixed 2.5" storage drive of 9.5 mm thickness. It is installed to a mounting tray inside the chassis. Use an enterprise quality drive.
  • Page 23 Chapter 2 Maintenance and Component Installation 3. Place the drive into the tray and secure it to the tray with the screws provided with drive. 4. Return the drive tray assembly into the chassis, aligning the tabs of the tray with the slots in the chassis.

  • Page 24: System Cooling

    SuperServer 1019S-MP User's Manual System Cooling The SC101iF includes two 6-cm fans. Replacing the System Fan 1. Power down the system as described in section 2.1 and remove the AC power cord and the chassis cover. 2. Remove the failed fan power cable from motherboard.

  • Page 25: Chapter 3 Motherboard Connections

    Chapter 3 Motherboard Connections Chapter 3 Motherboard Connections This section describes the connections on the X11SSV-M4 motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

  • Page 26: Headers And Connectors

    SuperServer 1019S-MP User's Manual 3.2 Headers and Connectors Fan Headers This motherboard has three 4-pin fan headers. Although pins 1-3 of the fan headers are backward compatible with the traditional 3-pin fans, we recommend you use 4-pin fans to take advantage of the fan speed control via Pulse Width Modulation through the BMC. This allows the fan speeds to be automatically adjusted based on the motherboard temperature.
  • Page 27 The JTPM1 header is used to connect a Trusted Platform Module (TPM). A TPM can securely store artifacts used to authenticate the platform. These artifacts can include passwords, certificates, or encryption keys. Morei information at http://www.supermicro.com/manuals/ other/TPM.pdf. Trusted Platform Module Header...
  • Page 28 SRW3 SuperServer 1019S-MP User's Manual JWD1 I-SGPIO1/I-SGPIO2 The Serial Link General Purpose Input/Output (I-SGPIO) header is used to communicate with the enclosure management chip in the system. Serial Link General Purpose Headers Pin Definitions Pin# Definition Definition JPME1 Ground DATA Out...
  • Page 29 Chapter 3 Motherboard Connections Power SMBus (I C) Connector Power System Management Bus (I C) Connector (JPI C1) monitors the power supply, fan and system temperatures. Power SMBus Pin Definitions Pin# Definition Clock Data Power Fail Ground +3.3V System Management Bus Header A PCH System Management Bus header for additional replica devices or sensors is located at JSMB1.

  • Page 30: Control Panel

    SuperServer 1019S-MP User's Manual Control Panel JF1 contains header pins for various control panel connections. See the figure below for the pin locations and definitions of the control panel buttons and LED indicators. All JF1 wires have been bundled into a single cable to simplify this connection. Make sure the red wire plugs into pin 1 as marked on the motherboard.
  • Page 31 Chapter 3 Motherboard Connections Power Fail LED The Power Fail LED connection is located on pins 5 and 6 of JF1. Power Fail LED Pin Definitions (JF1) Pin# Definition 3.3V PWR Supply Fail Overheat (OH)/Fan Fail Connect an LED cable to pins 7 and 8 of JF1 (Front Control Panel) to use the Overheat/Fan Fail/Power Fail and UID LED connections.

  • Page 32: Ports

    SuperServer 1019S-MP User's Manual HDD LED/UID Switch The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate the status of HDD-related activities, including SATA activities. HDD LED Pin Definitions (JF1) Pin# Definition 3.3V Standby/UID Switch...
  • Page 33 Chapter 3 Motherboard Connections Ethernet Ports Four Gigabit Ethernet ports (LAN1-4) and an IPMI LAN port are located on the I/O back panel to provide network connections. These ports accept RJ45 type cables. Universal Serial Bus (USB) Ports Four USB 3.0 ports (USB1-4) are located on the I/O back panel. The motherboard also provides four USB 2.0 connections via USB headers (USB5/6 and USB7/8).

  • Page 34: Jumpers

    SuperServer 1019S-MP User's Manual 3.4 Jumpers Explanation of Jumpers To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.
  • Page 35 Chapter 3 Motherboard Connections PCI-E Slot SMB Enable (JI C1/JI C1 and JI C2 are used to enable PCI-E SMB (System Management Bus) support to improve system management for the onboard PCI-E slot. Both jumpers must be set to the same setting. SMB to PCI-E Slots (JI C1/JI Jumper Settings...
  • Page 36 SuperServer 1019S-MP User's Manual Onboard Audio Enable JPAC1 allows you to enable or disable the onboard audio support. The default position is on pins 1-2 to enable onboard audio connections. Audio Enable/Disable Jumper Settings Jumper Setting Definition Pins 1-2 Enabled (Default)

  • Page 37: Led Indicators

    Chapter 3 Motherboard Connections 3.5 LED Indicators LAN LEDs The Ethernet ports have two LEDs. On each port, one LED indicates activity when flashing while the other LED may be green, amber or off to indicate the speed of the connection. 1GbE LAN LEDs (Connection Speed Indicator) LED Color...

  • Page 38: Chapter 4 Software

    This section describes the installation of drivers and management programs for the system. 4.1 Driver Installation The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp.supermicro. com. Some of these must be installed, such as the chipset driver.

  • Page 39: Superdoctor ® 5

    4.2 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 40: Ipmi

    SuperServer 1019S-MP User's Manual 4.3 IPMI The X11SSV-M4 supports the Intelligent Platform Management Interface (IPMI) v2.0. IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, please visit our website at:...

  • Page 41: Chapter 5 Bios

    Chapter 5 BIOS Chapter 5 BIOS 5.1 Introduction This chapter describes the AMI BIOS setup utility for the X11SSV-M4 motherboard. It also provides the instructions on how to navigate the AMI BIOS setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 42: Main Page

    SuperServer 1019S-MP User's Manual 5.2 Main Page When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen.

  • Page 43: Advanced Page

    Chapter 5 BIOS 5.3 Advanced Page Use this tab page to set some boot, power, CPU, SATA, server ME, and input/output settings. Caution: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to the default to the manufacture default settings.

  • Page 44: Power Configuration

    SuperServer 1019S-MP User's Manual Bootup NumLock State Use this feature to set the Power on state for the <Numlock> key. The options are Off and On. Wait For "F1" If Error Use this feature to force the system to wait until the "F1" key is pressed if an error occurs.

  • Page 45: Cpu Configuration

    Chapter 5 BIOS Power Button Function This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button.
  • Page 46 SuperServer 1019S-MP User's Manual • CPU C9 state • CPU C10 state • L1 Data Cache • L1 Code Cache • L2 Cache • L3 Cache • L4 Cache Hyper-threading (Available when supported by the CPU) Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance.
  • Page 47 Chapter 5 BIOS CPU AES Select Enabled to enable Intel CPU Advanced Encryption Standard (AES) Instructions for CPU to enhance data integrity. The options are Disabled and Enabled. Boot Performance Mode This feature allows the user to select the performance state that the BIOS will set before the operating system handoff.
  • Page 48 SuperServer 1019S-MP User's Manual 4-Core Ratio Limit Override This increases (multiplies) 4 clock speeds in the CPU core in relation to the bus speed when three CPU cores are active. Press "+" or "-" on your keyboard to change the value. Enter 0 to use the manufacture default setting.

  • Page 49: Chipset Configuration

    Chapter 5 BIOS ACPI 3.0 T-States Select Enabled to support CPU throttling by the operating system to reduce power consumption. The options are Disabled and Enabled. Chipset Configuration Warning: Setting the wrong values in the following features may cause the system to malfunc- tion.
  • Page 50 SuperServer 1019S-MP User's Manual Graphics Configuration Primary Display Use this feature to select the graphics device to be used as the primary display. The options are Auto, IGFX, PEG, and PCIE. Internal Graphics Select Auto to keep an internal graphics device installed on an expansion slot supported by the CPU to be automatically enabled.
  • Page 51 Chapter 5 BIOS DMI/OPI Configuration The following DMI information will be displayed: • DMI VC1 Control Use this feature to enable or disable DMI Virtual Channel 1. The options are Enabled and Disabled. DMI VCm Control Use this feature to enable or disable the DMI Virtual Channel map. The options are Enabled and Disabled.

  • Page 52: Memory Configuration

    SuperServer 1019S-MP User's Manual PEG0 ASPM Use this item to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disabled, Auto, ASPM L0s, ASPM L1, and ASPM L0s &...

  • Page 53: Sata Configuration

    Chapter 5 BIOS Max TOLUD This feature sets the maximum TOLUD value, which specifies the "Top of Low Usable DRAM" memory space to be used by internal graphics devices, GTT Stolen Memory, and TSEG, respectively, if these devices are enabled. The options are Dynamic, 1 GB, 1.25 GB, 1.5 GB, 1.75 GB, 2 GB, 2.25 GB, 2.5 GB, 2.75 GB, 3 GB, 3.25 GB, and 3.5 GB.
  • Page 54 SuperServer 1019S-MP User's Manual SATA Controller(s) This item enables or disables the onboard SATA controller supported by the Intel PCH chip. The options are Enabled and Disabled. SATA Mode Selection Use this item to select the mode for the installed SATA drives. The options are AHCI and RAID.
  • Page 55 Chapter 5 BIOS PCIe/PCI/PnP Configuration The following information will be displayed: • PCI Bus Driver Version • PCI Devices Common Settings: PCI PERR/SERR Support Select Enabled to allow a PCI device to generate a PERR/SERR number for a PCI Bus Signal Error Event.

  • Page 56: Super Io Configuration

    SuperServer 1019S-MP User's Manual Onboard LAN4 Option ROM Use this item to select the Option ROM type for onboard LAN4. The options are Disabled and PXE. Onboard Video Option ROM Use this item to select the onboard Video Option ROM type. The options are Disabled, Legacy, and EFI.

  • Page 57: Serial Port Console Redirection

    Chapter 5 BIOS I/O and IRQ address. The options are Auto, (IO=3F8h; IRQ=4;); (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;); (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;); and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;). PCH-FW Configuration The following firmware information will be displayed: •...
  • Page 58 SuperServer 1019S-MP User's Manual *If the item above set to Enabled, the following items will become available for user's configuration: COM1 Console Redirection Settings This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.
  • Page 59 Chapter 5 BIOS COM1 VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled. COM1 Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server.

  • Page 60: Acpi Settings

    SuperServer 1019S-MP User's Manual Terminal Type Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 61 Chapter 5 BIOS integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disable and Enable. *If the item above set to Enable, the following items will become available for user's configuration: TPM State This feature changes the TPM State.

  • Page 62: Iscsi Configuration

    SuperServer 1019S-MP User's Manual Fan Speed Control Mode Use this feature to select the fan speed control mode. The options are Standard and Full Speed. • CPU FAN Speed • FAN2 Speed • FAN3 Speed • Vcpu • • VDIMM •...

  • Page 63: Security

    Chapter 5 BIOS 5.4 Security Use this tab page to manage security settings. Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.
  • Page 64 SuperServer 1019S-MP User's Manual Secure Boot Control Use this item to enable secure boot. The options are Disabled and Enabled. Secure Boot Mode Use this item to select the secure boot mode. The options are Standard and Custom. This feature must be set to Custom in order to confiugre Key Management features.
  • Page 65 Chapter 5 BIOS  Authorized Signatures Set New Key Select Yes to load the database from the manufacturer's defaults. Select No to load the DB from a file. The options are Yes and No. Append Key Select Yes to add the database from the manufacturer's defaults to the existing DB. Select No to load the DB from a file.

  • Page 66: Boot Settings

    SuperServer 1019S-MP User's Manual Append OsRecovery Signature This item uploads and adds an OSRecovery Signature into the Key Management. You may insert a factory default key or load from a file. When prompted, select "Yes" to load Factory Defaults or "No" to load from a file.
  • Page 67 Chapter 5 BIOS Fixed Boot Order Priorities This option prioritizes the order of bootable devices that the system to boot from. Press <Enter> on each entry from top to bottom to select devices. *If the item above set to Legacy, UEFI, or Dual the following items will be displayed: •...

  • Page 68: Save & Exit

    SuperServer 1019S-MP User's Manual 5.6 Save & Exit Use this tab page to manage your exit from the Setup Utility. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.
  • Page 69 Chapter 5 BIOS Default Options Restore Optimized Defaults To set this feature, select Restore Optimized Defaults from the Save & Exit menu and press <Enter>. These are factory settings designed for maximum system stability, but not for maximum performance. Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 70: Appendix A Bios Error Codes

    When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.

  • Page 71: Appendix B Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 72 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

  • Page 73: Installation Instructions

    SuperServer 1019S-MP User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬...

  • Page 74: Circuit Breaker

    Appendix B: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 75 SuperServer 1019S-MP User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.

  • Page 76: Power Disconnection Warning

    Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...

  • Page 77: Equipment Installation

    SuperServer 1019S-MP User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원...

  • Page 78: Restricted Area

    Appendix B: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 79 SuperServer 1019S-MP User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial,...

  • Page 80: Battery Handling

    Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...

  • Page 81: Redundant Power Supplies

    SuperServer 1019S-MP User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제...
  • Page 82 Appendix B: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.

  • Page 83: Backplane Voltage

    SuperServer 1019S-MP User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.

  • Page 84: Comply With Local And National Electrical Codes

    Appendix B: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.

  • Page 85: Product Disposal

    SuperServer 1019S-MP User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.
  • Page 86 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 87 SuperServer 1019S-MP User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 88 Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター...
  • Page 89 ‫.قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح‬ ‫ لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحي‬UL ‫ وأ‬CSA ‫( ةمالع لمحت يتلاو‬UL/CSA) ‫ لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عم‬Supermicro.
  • Page 90 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 91: Appendix C System Specifications

    Appendix C: System Specifications Appendix C System Specifications Processors Single Intel Xeon E3-1515M v5, single socket FCBGQ 1440, PI up to 8.0GT/s, CPU TDP support 45W Note: Please refer to the motherboard specifications pages on our website for updates to supported processors. Chipset Intel PCH CM236 BIOS...
  • Page 92 SuperServer 1019S-MP User's Manual Regulatory Compliance Electromagnetic Emissions: FCC Class B, EN 55022 Class B, EN 61000-3-2/3-3, CISPR 22 Class B Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11)

  • Page 93: Appendix D Uefi Bios Recovery Instructions

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 94 SuperServer 1019S-MP User's Manual 2. Insert the USB device that contains the new BIOS image ("Super.ROM") into your USB drive and power on the system 3. While powering on the system, keep pressing <Ctrl> and <Home> simultaneously on your keyboard until your hear two short beeps. This may take from a few seconds to one minute.
  • Page 95 Appendix D UEFI BIOS Recovery Instructions 6. After the process has completed, press any key to reboot the system.
  • Page 96 SuperServer 1019S-MP User's Manual 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When the DOS prompt appears, enter AMI.BAT BIOSname.###. Note: Do not interrupt this process until BIOS flashing has completed. 9. After receiving the message that the BIOS update is complete, unplug the AC power cable from the power supply to clear CMOS, then plug the AC power cable in the power supply again to power on the system.
