SC846 Chassis Manual
Rear LED Indicators
D45 D47 D49 D51 D3 D36 D89
LED
D45
D47
D49
D51
D3
D36
D89
D53
D54

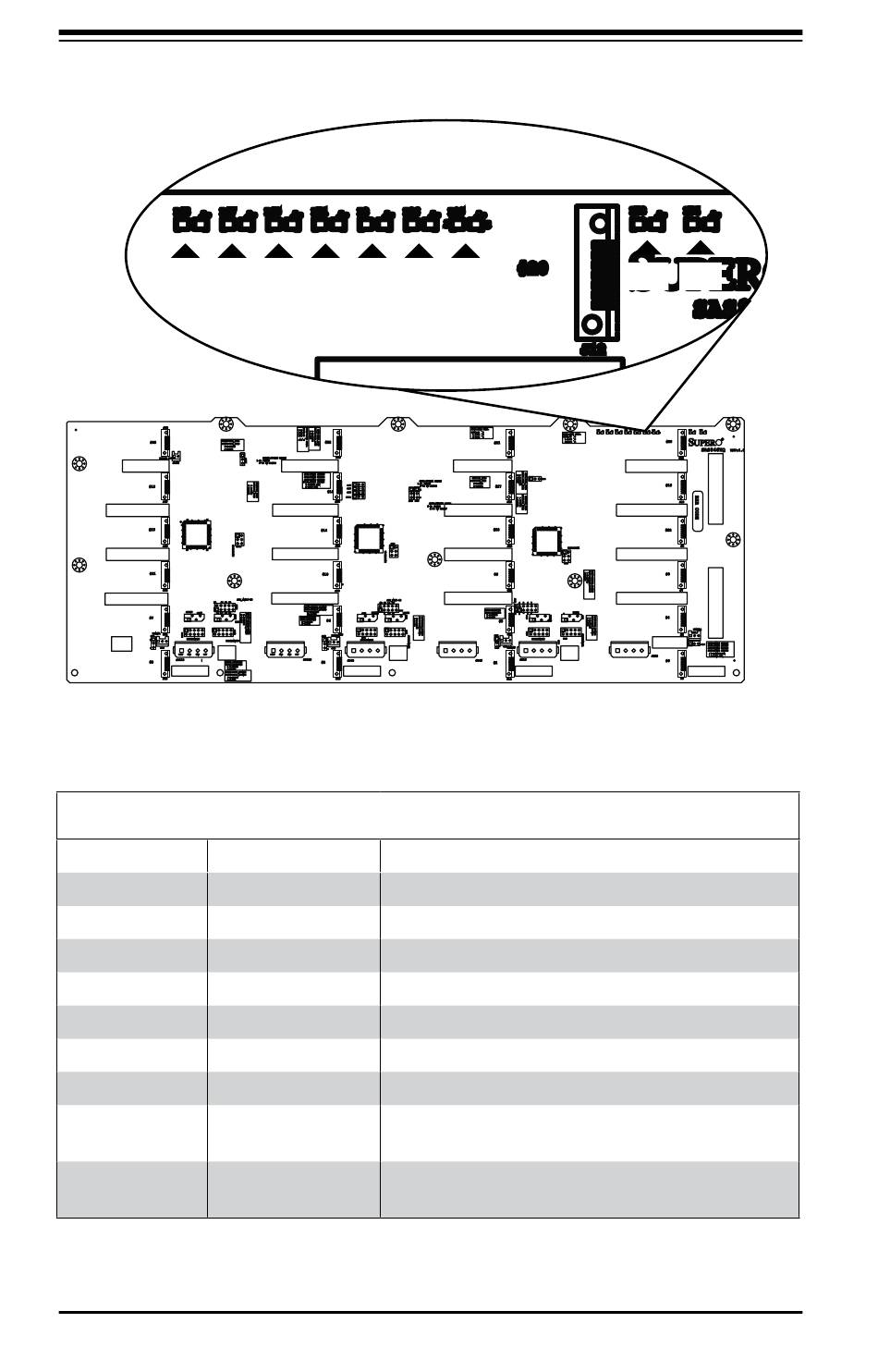

Figure B-4: Rear LEDs
Rear LEDs
State
On
Failure in Fan #1
On
Failure in Fan #2
On
Failure in Fan #3
On
Failure in Fan #4
On
Alarm #1: Overheat/drive failure in Channel 1
On
Alarm #2: Overheat/drive failure in Channel 2
On
Alarm #3: Overheat/drive failure in Channel 3
+5V: Backplane power failure. Light is on dur-
Off
ing normal operation.
+12V: Backplane power failure. Light is on dur-
Off
ing normal operation.
B-10
D53 D54
