SC846 Chassis User's Manual
Cable Name: iPass (Mini-SAS) to iPass (Mini-SAS)
Part #: CBL-0108L-02
Part #: CBL-0109L-02
Part #: CBL-0110L-02
Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (36-pin) at
each end. It connects from the HBA to the SAS2-846EL backplane.
Supported External HBA to Backplane Cable
Use the following cable if your external HBA has an InfiniBand connector.
Cable Name: SAS InfiniBand to Mini SAS X4 1M cable, PBF
Part #: CBL-0200L
Description: This cable has an InfiniBand connector (SFF-8470) on one end and
an SFF-8088-1X (26-pin) at the other end.
Length: 39 cm (15 inches)
Length: 22 cm (9 inches)
Length: 18 cm (7 inches)

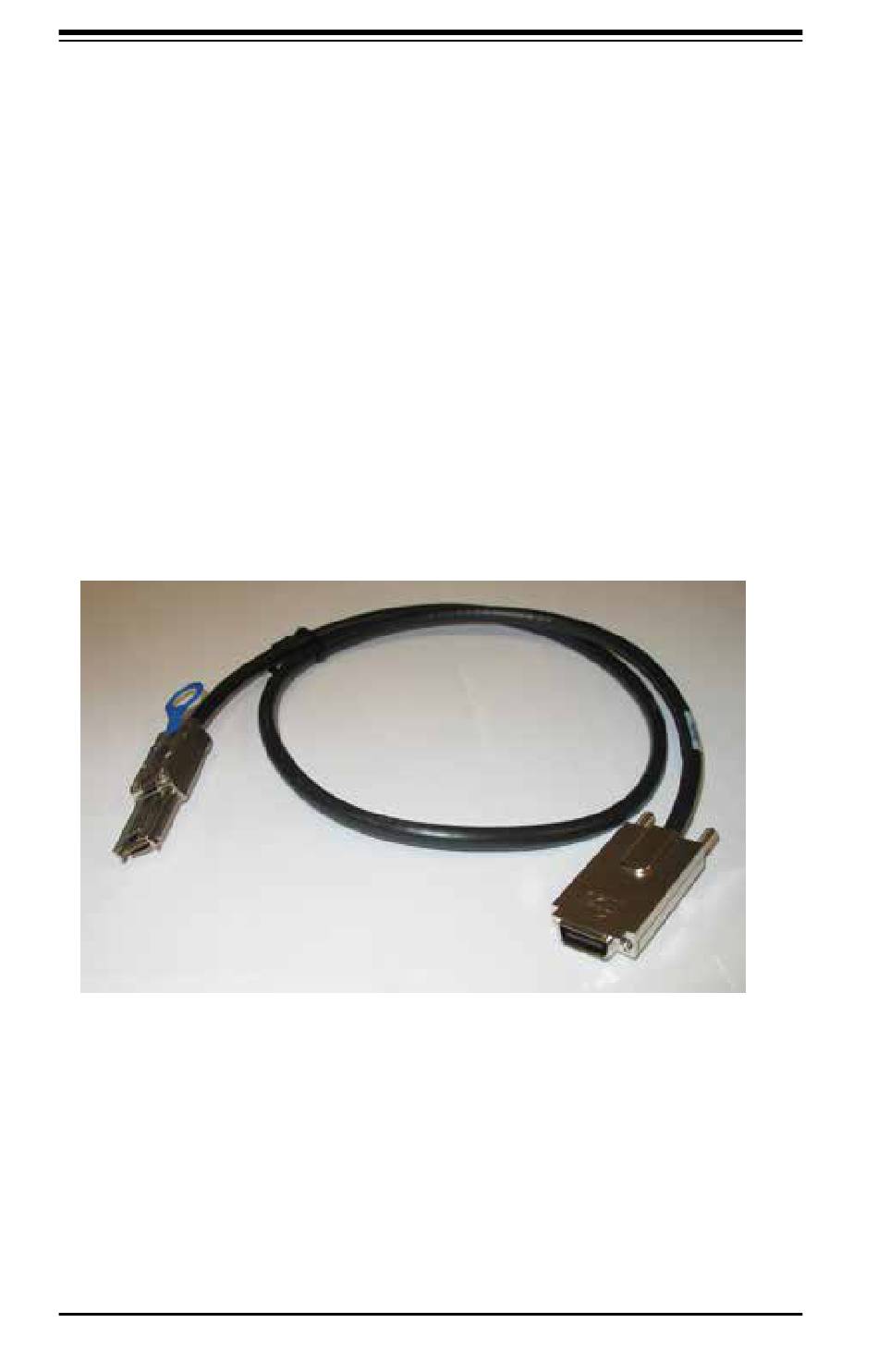

Figure D-8: The CBL-0200L Cable
Length: 1 meter
D-14
