SC846 Chassis Manual
Connecting an Internal Host Bus Adapter to the
Backplane
The following section lists the most common cables used to connect the Host Bus
Adapter (HBA) to the backplane.

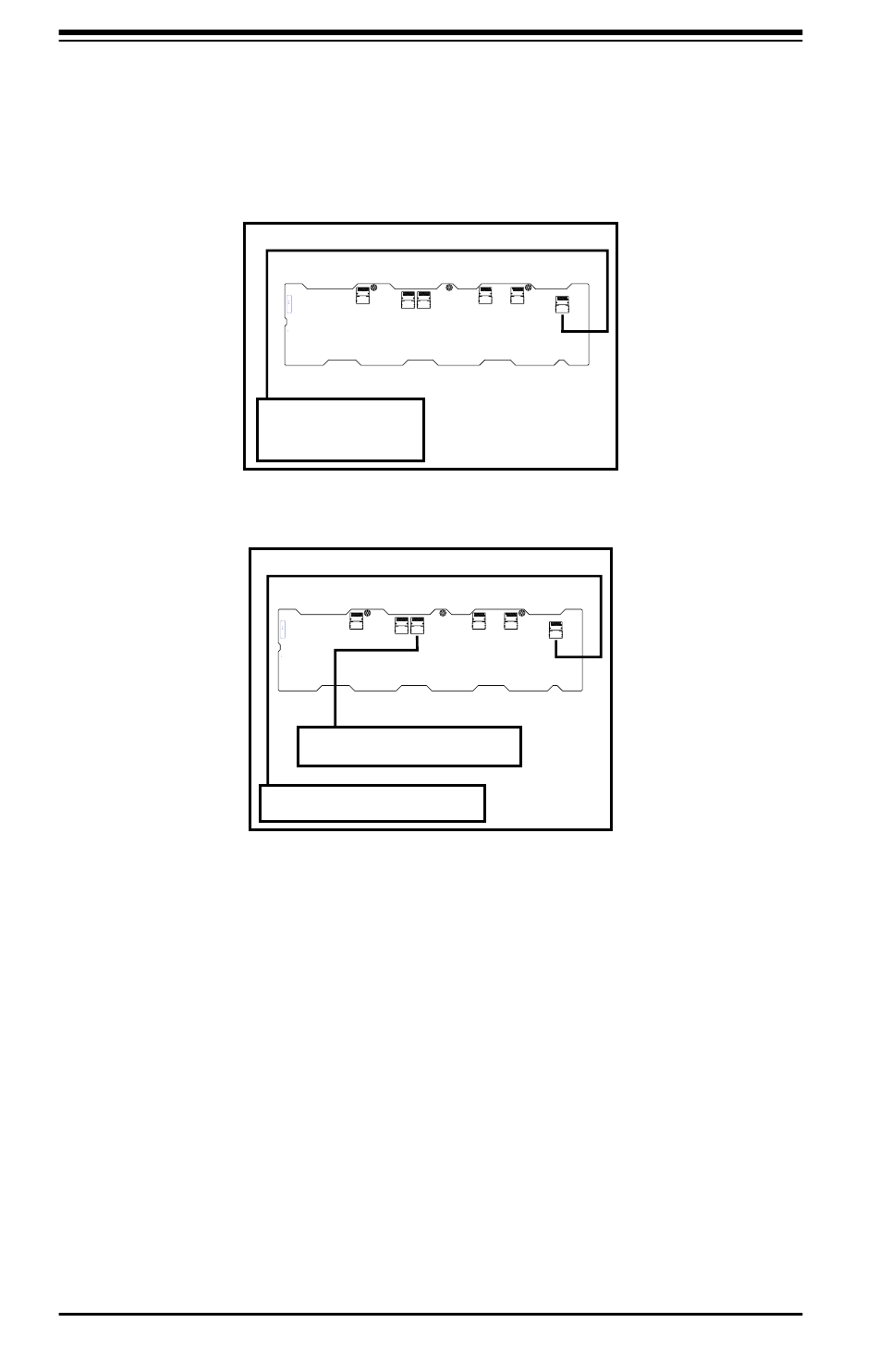

Figure C-11: Single Internal Host Bus Adapter
IMPORTANT: See Section C-12 of this manual, Failover with RAID Cards and
Multiple HBAs for important information on supported configurations.
Supported Internal HBA Cables
Use the following listed cables to create connections between the internal HBA and
SAS-846EL backplane. The cables required depend on the HBA connector.
Cable Name: iPass TO 4-lane
Part #: CBL-0117L
Description: This cable has one SFF-8484 (32-pin) connector on one end and
iPass (SFF-8087/Mini-SAS) connector (36-pin) at the other. This cable connects
from the HBA to the SAS-846EL backplane.
SEC_J2
J17
HBA
SEC_J2
J17
HBA
HBA
Figure C-12: Dual Internal Host Bus Adapter
PRI_J2
PRI_J1
SEC_J0 SEC_J1
PRI_J0
PRI_J2
PRI_J1
SEC_J0 SEC_J1
PRI_J0
Length: 46 cm (18 inches)
C-14
