C-11 Failover
The SAS-846EL2 backplane has two expanders which allow effective failover.

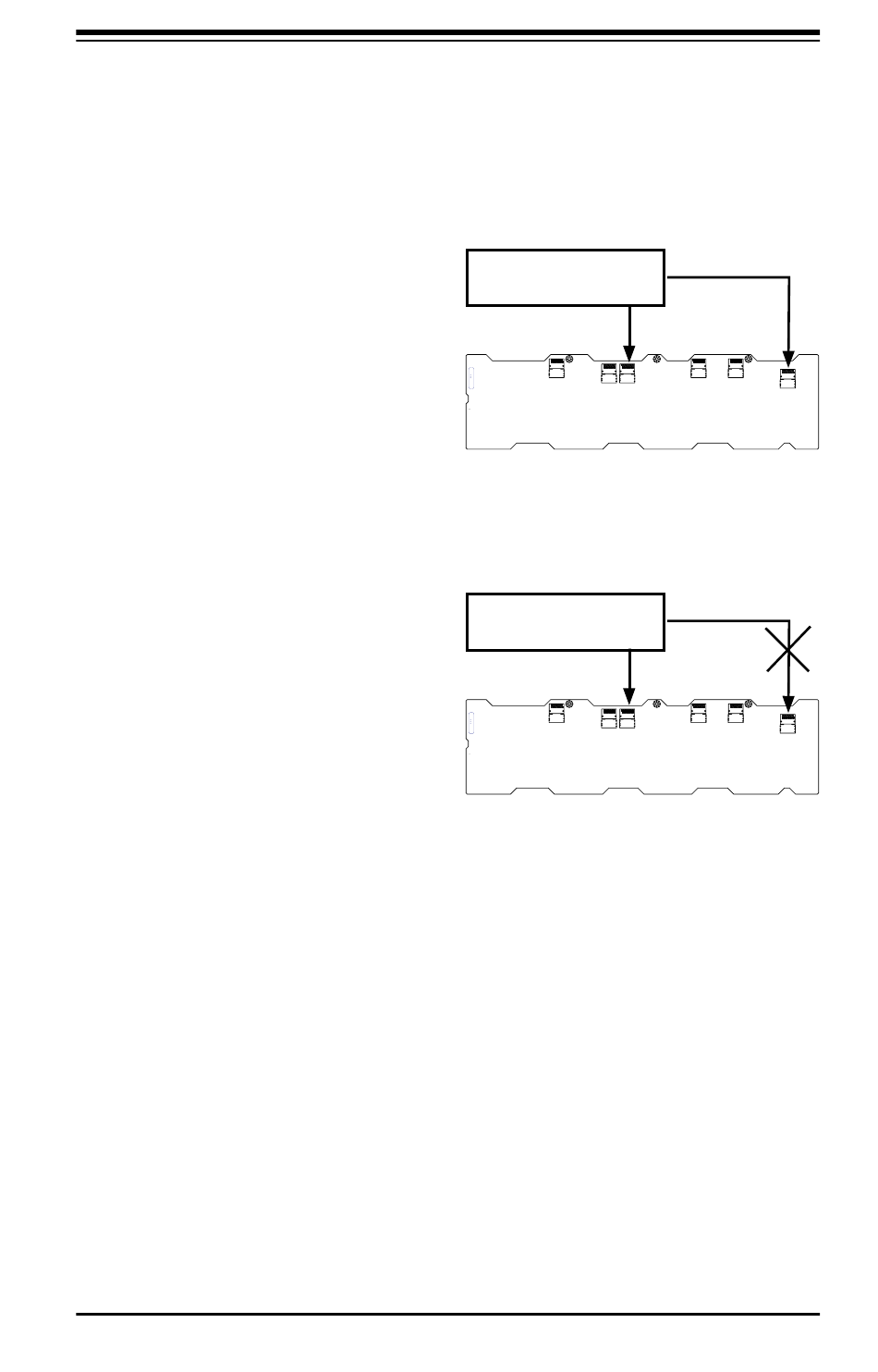

Single Host Bus Adapter
In a single host bus configuration, the
backplane connects to one Host Bus
Adapter (HBA).
Single Host Bus Adapter
Failover
If the expander or data path in Port A
fails, the system automatically switches
to Port B.
Appendix C: SAS-846EL Backplane Specifications
SAS HBA
Port B
Expander 2
J17
Figure C-6: Single HBA
SAS HBA
Port B
Expander 2
J17
Figure C-7: Single HBA Failover
C-11
SEC_J2 PRI_J2
SEC_J0 SEC_J1
Port A
Expander 1
PRI_J2
SEC_J2
SEC_J0 SEC_J1
Port A
Expander 1
PRI_J1
PRI_J0
PRI_J1
PRI_J0
