2. Install the fixed hard drive into the hard drive tray using four round head screws
(6-32) and two Mylar washers.
Screw
6-32

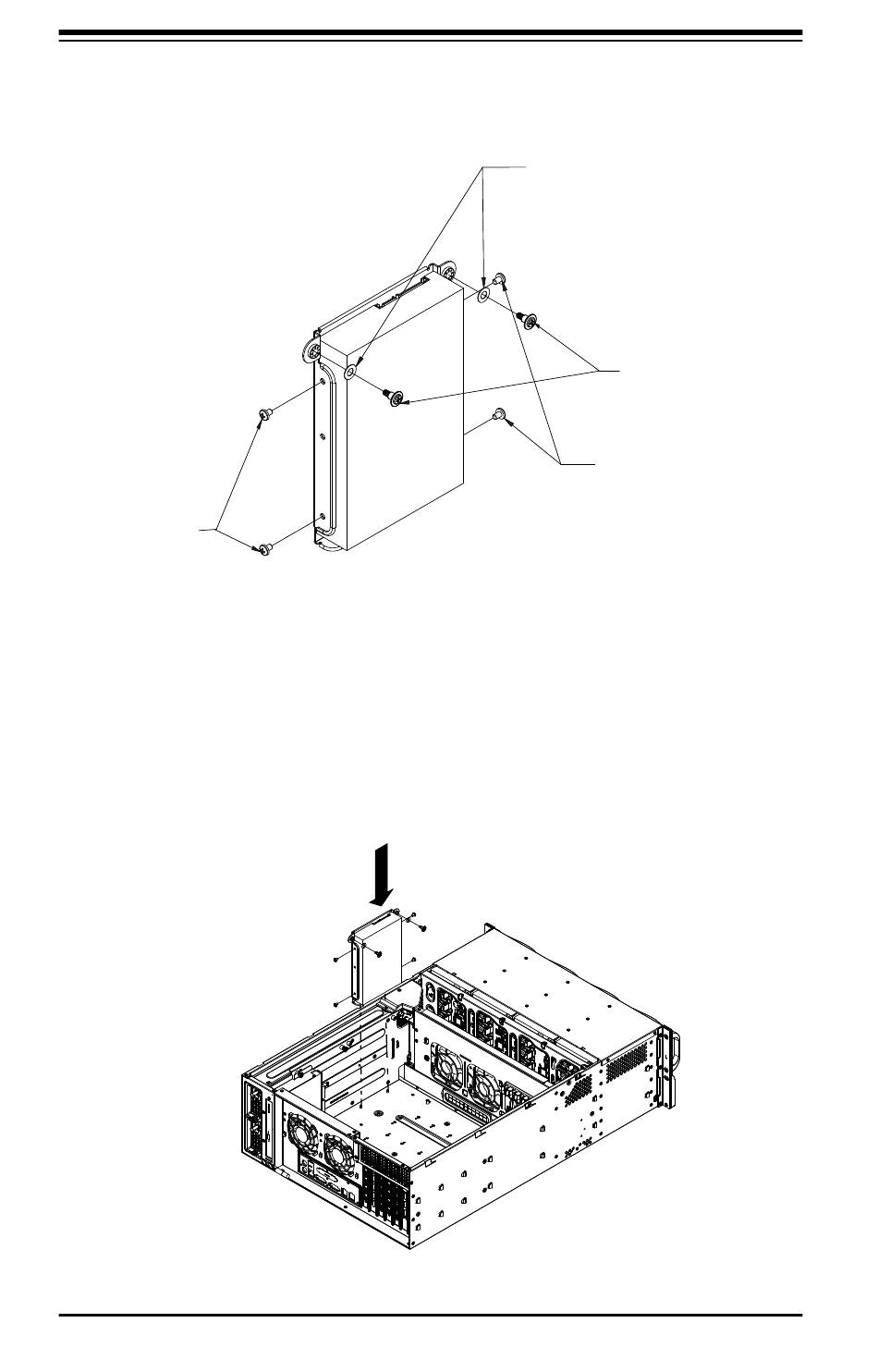

Figure 4-23. Securing the Fixed Hard Drive into the Tray
3. Lower the drive and tray into the chassis, carefully inserting the lower rubber-
lined holes onto the pins at the base of the chassis and aligning the upper rubber
holes with the holes in the chassis.
4. Use the two drive tray screws with Mylar washers to secure the hard drive and
drive tray on the standoff power supply cage.
Figure 4-24. Installing the HDD and HDD Tray in the Chassis
Mylar
Washer
4-20
Screw 6-32
Fixed
Screw
6-32
