Connecting an Internal Host Bus Adapter to the
Backplane
The following section lists the most common cables used to connect the host bus
adapter to the backplane.

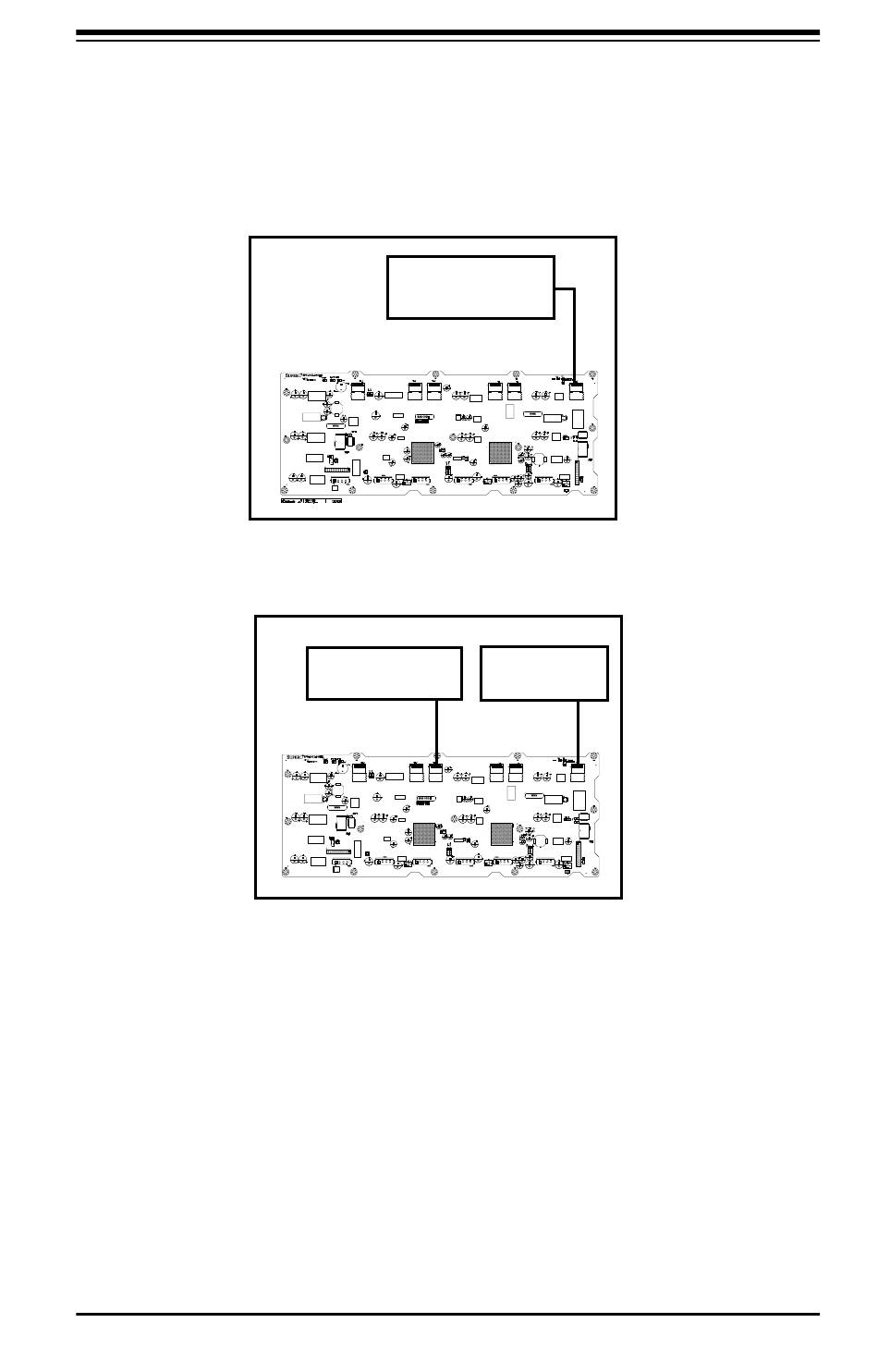

Figure D-7: Connecting an Internal HBA to the Backplane
Supported Internal HBA Cables
Use the following listed cables to create connections between the internal HBA and
SAS2-846EL backplane. The cables required depend on the HBA connector.
Cable Name: iPass TO 4-lane
Part #: CBL-0117L
Description: This cable has one SFF-8484 (32-pin) connector on one end and
iPass (SFF-8087/Mini-SAS) connector (36 pins) at the other. This cable connects
from the HBA to the SAS2-846EL backplane.
