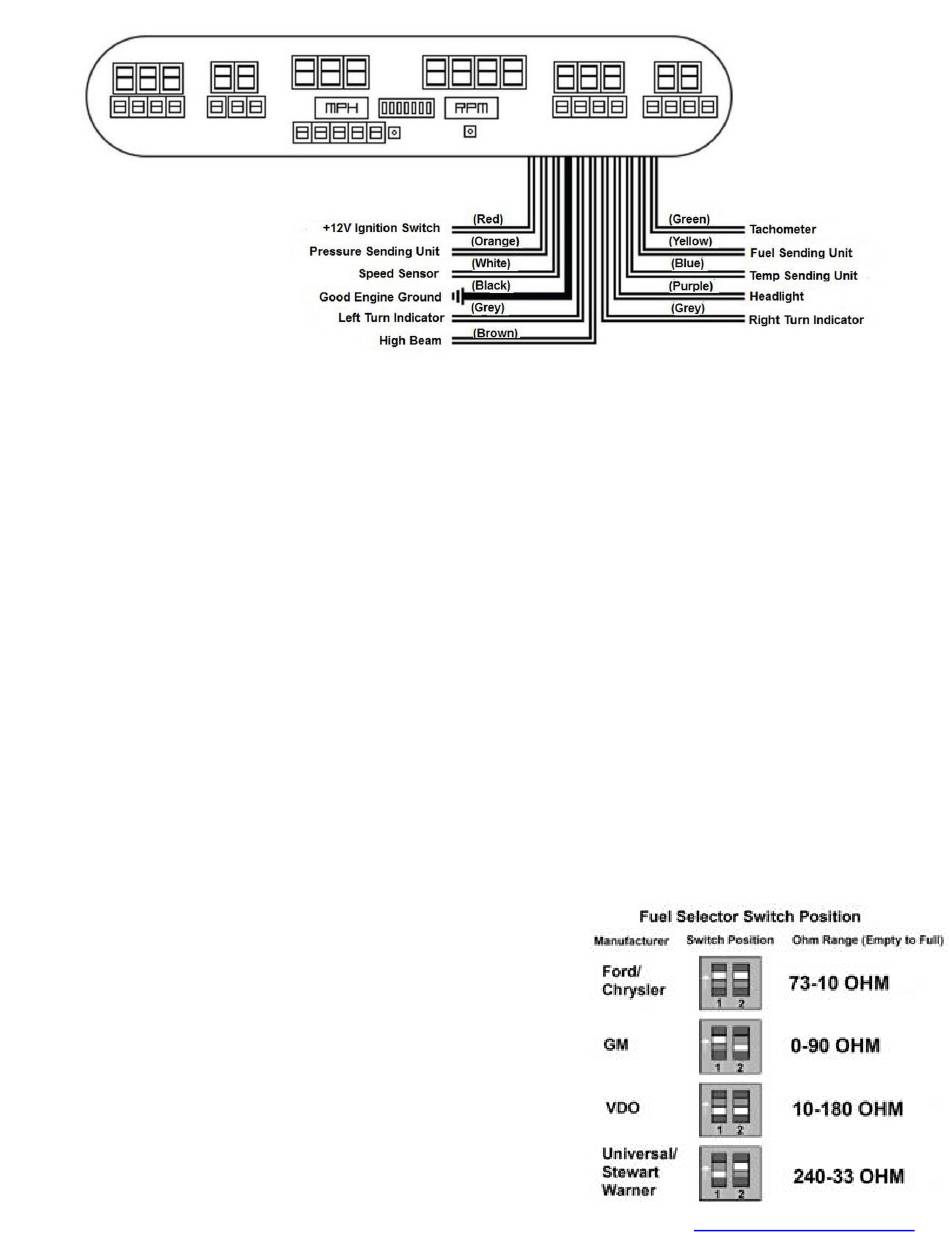

Power – Red; Dimmer – Purple; Turn Signals – Grey; High Beams – Brown - Intellitronix DP10004 Installation Manual

Power – Red Connect the power terminal to accessory +12V power from the fuse panel or
vehicle wiring harness. This terminal should have power when the key is on or in accessory
position. Use 18 AWG wire to ensure the system receives a sufficient power feed.
Dimmer – Purple Connect to the parking lights to dim the LEDs 50% when the headlights are
on. However, do not connect to the headlight rheostat control wire; the dimming feature will not
work properly.
Turn Signals – Grey
printed circuit board as 'LEFT' or 'RIGHT'. Connect each wire to its corresponding indicator
circuit.
High Beams – Brown Connect the brown wire to your high beam headlights.
Water – Blue Replace the existing water temperature sending unit with the unit included. The
gauge is incompatible with other sending units. Do not use Teflon tape or other sealer on the new
sending unit's threads to avoid inaccurate readings. Connect the blue wire to the sending unit.
Fuel - Yellow The fuel gauge sending unit is not normally supplied because the display system
can use the existing fuel level sending unit in the tank in most cases. If your wiring harness
already has a single wire routed through the vehicle for the fuel sender then it may be used. If
using a wire from an external harness, make sure that the wire does not have power. Fuel senders
reference their ground from the sender mounting plate.
Connect the yellow wire to the factory sending unit. Be
sure the toggle settings on the switch match those
displayed on the diagram, as illustrated.
Both toggles in the up position for Ford/Chrysler
For GM - #1 toggle is up, #2 toggle is down
Both toggles in the down position for VDO
For Universal/Stewart Warner - #1 toggle is down,
# 2 toggle is up.
2- DP10004
Two 18-gauge wires, one for each signal. Each wire is labeled on the
