SITE PREPARATION

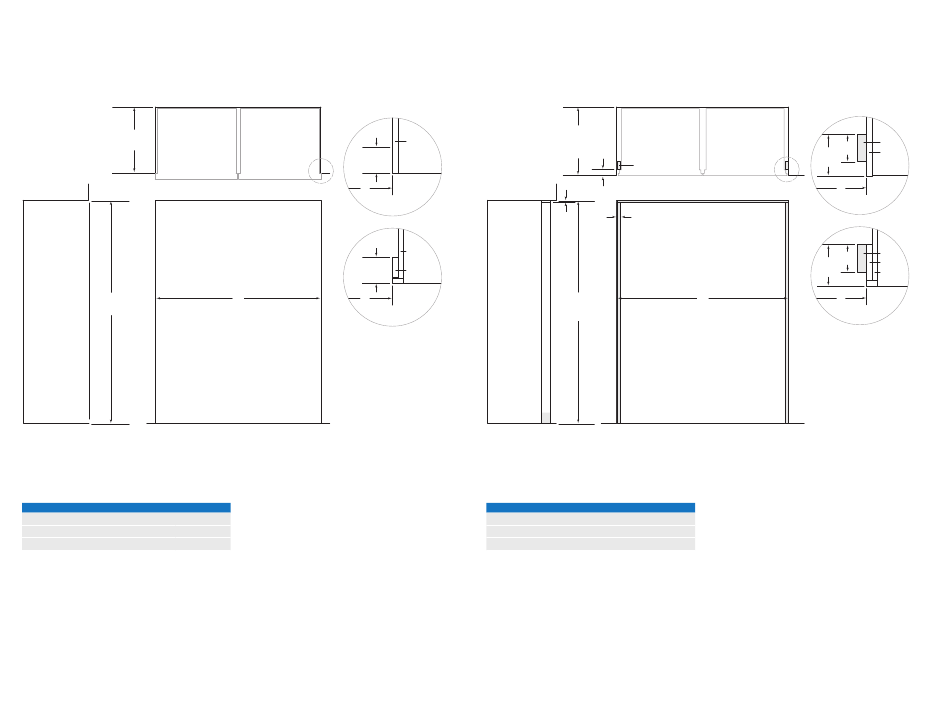

Opening Dimensions
DUAL STANDARD INSTALLATION
610 mm
OPENING
DEPTH
2127 mm
OPENING
HEIGHT
SIDE VIEW
NOTE: 89 mm finished returns will be visible and should be finished to match cabinetry.
Shaded line represents profile of unit.
OPENING WIDTH
Two 762 mm Models 1518 mm
762 mm and 914 mm Models 1670 mm
Two 914 mm Models 1822 mm
4 | English
89 mm
FINISHED
RETURN
TOP VIEW
A
FRAMELESS
CABINETRY
89 mm
FINISHED
RETURN
A
A
OPENING WIDTH
FRAMED
CABINETRY
FRONT VIEW
A dual installation kit will be required for this installation.
A
Opening Dimensions
DUAL FLUSH INSET INSTALLATION
665 mm
FLUSH
19 mm
INSET
TYPICAL
DEPTH
6 mm
19 mm
TYPICAL
FILLER
2134 mm
FLUSH
INSET
HEIGHT
SIDE VIEW
NOTE: 89 mm finished returns and shaded areas will be visible and should be finished to match cabinetry.
Shaded line represents profile of unit with 19 mm panel.
OPENING WIDTH
Two 762 mm Models
762 mm and 914 mm Models
Two 914 mm Models
56 mm
FINISHED
CLEATS
TOP VIEW
32 mm
A
FLUSH INSET WIDTH
FRONT VIEW
Dimensions assume a 19 mm panel thickness. A dual instal-
A
lation kit will be required for this installation.
1581 mm
1734 mm
1886 mm
CLEAT
89
145 mm mm 19 mm
FINISHED
TYPICAL
RETURN
A
FRAMELESS
CABINETRY
CLEAT
89
145 mm mm
FILLER
FINISHED
19 mm
RETURN
TYPICAL
A
FRAMED
CABINETRY
