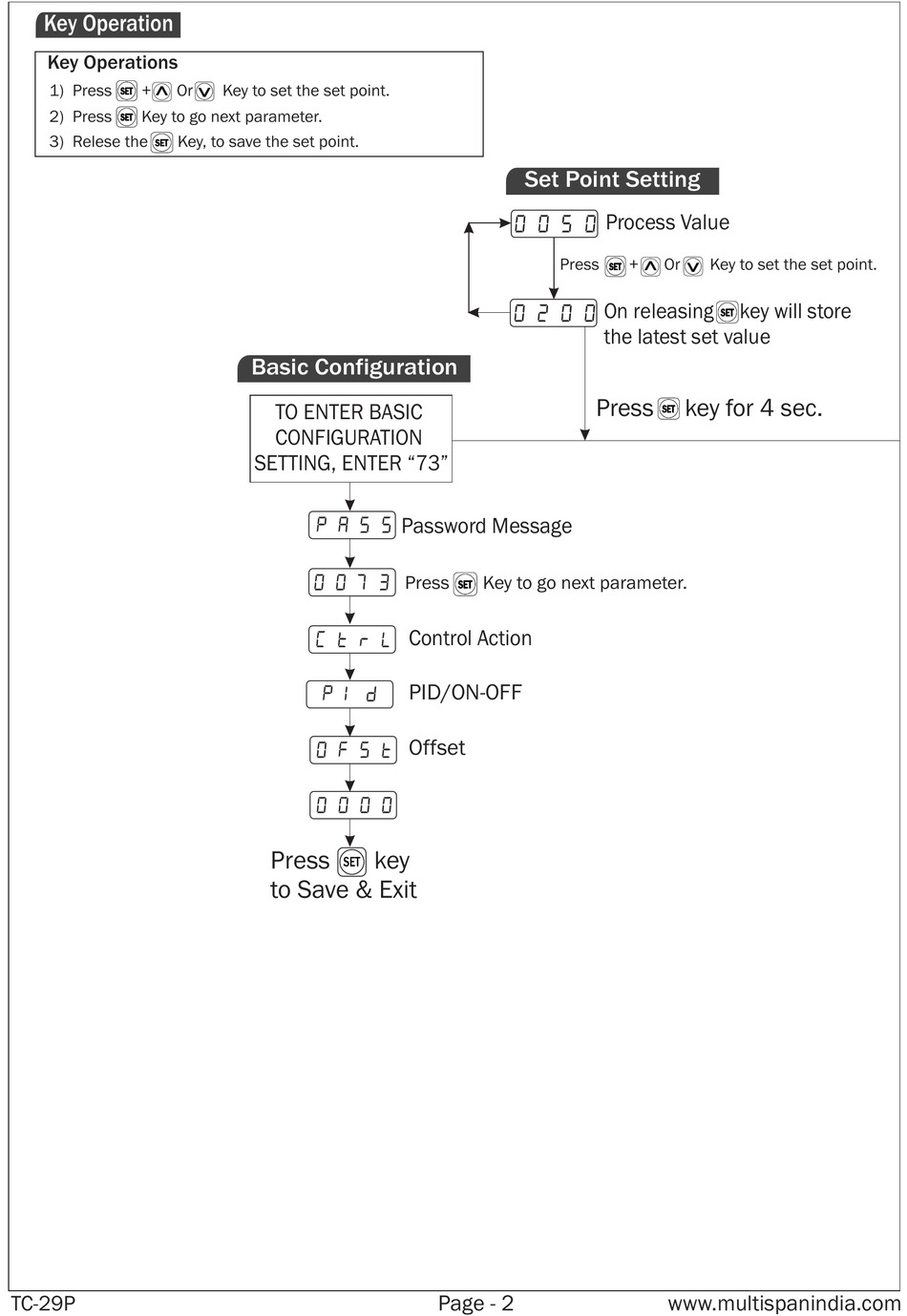

MULTISPAN TC-29P Operating Manual page 2

Key Operation
Key Operations
1) Press + Or
SET SET
2) Press Key to go next parameter.
SET SET
3) Relese the Key, to save the set point.
SET
TC-29P
Key to set the set point.
Basic Configuration
TO ENTER BASIC
CONFIGURATION
SETTING, ENTER "73"
P A S s
0 0 7 3
C T R L
p I D
O F S T
O 0 0 0
Press key
SET
to Save & Exit
Set Point Setting
0 0 5 0
Press
0 2 0 0
Password Message
Press Key to go next parameter.
SET SET
Control Action
PID/ON-OFF
Offset
Page - 2
Process Value
+ Or Key to set the set point.
SET SET
On releasing key will store
SET SET
the latest set value
Press key for 4 sec.
SET SET
