MULTISPAN TC-29P Operating Manual page 3

1 2 3 4

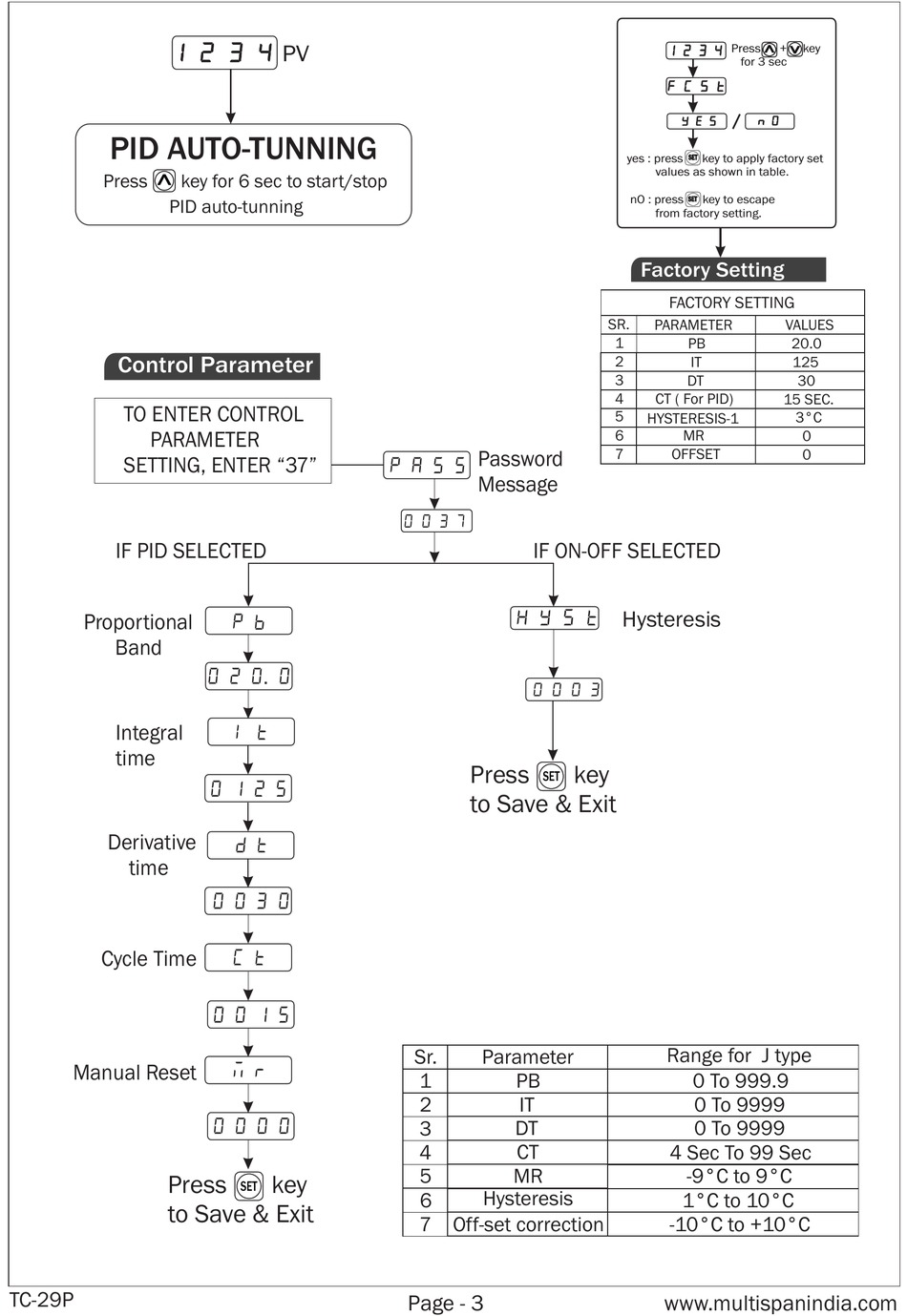

PID AUTO-TUNNING
Press
PID auto-tunning
Control Parameter
TO ENTER CONTROL
PARAMETER
SETTING, ENTER "37"
IF PID SELECTED
Proportional
Band
Integral
time
Derivative
time
Cycle Time
Manual Reset
Press
to Save & Exit
TC-29P
PV
key for 6 sec to start/stop
p B
0 2 0 0 .
I T
0 1 2 5
D T
0 0 3 0
C T
0 0 1 5
M R
0 0 0 0
key
SET
P A s s Password
Message
0 0 3 7
IF ON-OFF SELECTED
H Y S t
0 0 0 3
Press
SET
to Save & Exit
Sr. Parameter
1 PB
2 IT
3 DT
4 CT
5 MR
Hysteresis
6
Off-set correction
7
Page - 3
1 2 3 4
Press
for 3 sec
f C S T
Y E S
yes : press key to apply factory set
SET
values as shown in table.
nO : press key to escape
SET
from factory setting.
Factory Setting
FACTORY SETTING
SR.
PARAMETER
1 PB
2
IT
3 DT
4 CT ( For PID)
5
HYSTERESIS-1
6 MR
7 OFFSET
Hysteresis
key
Range for J type
0 To 999.9
0 To 9999
0 To 9999
4 Sec To 99 Sec
-9°C to 9°C
1°C to 10°C
-10°C to +10°C
