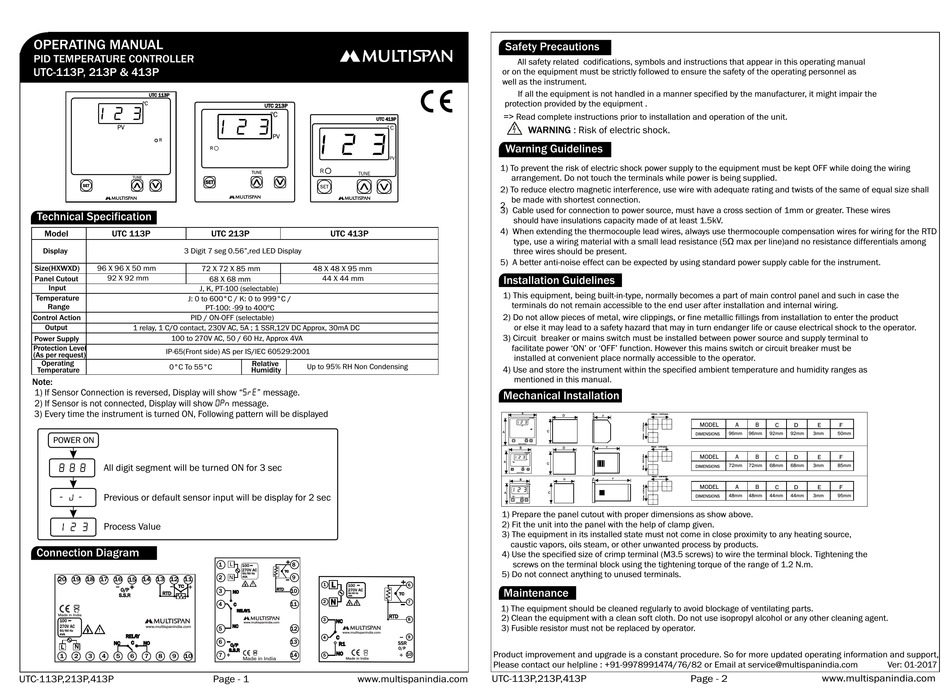

MULTISPAN UTC-113P Operating Manual

OPERATING MANUAL
PID TEMPERATURE CONTROLLER
UTC-113P, 213P & 413P
UTC 113P
ºC
1 2 3
PV
R
Technical Specification
Model UTC 113P
3 Digit 7 seg 0.56",red LED Display
Display
Size(HXWXD) 96 X 96 X 50 mm
Panel Cutout 92 X 92 mm
Input
Temperature J: 0 to 600°C / K: 0 to 999°C /
Range
Control Action PID / ON-OFF (selectable)
Output 1 relay, 1 C/O contact, 230V AC, 5A ; 1 SSR,12V DC Approx, 30mA DC
Power Supply 100 to 270V AC, 50 / 60 Hz, Approx 4VA
Protection Level
IP-65(Front side) AS per IS/IEC 60529:2001
(As per request)
Operating
0°C To 55°C
Temperature
Note:
1) If Sensor Connection is reversed, Display will show "SRE" message.
2) If Sensor is not connected, Display will show Opn message.
3) Every time the instrument is turned ON, Following pattern will be displayed
POWER ON
8 8 8 All digit segment will be turned ON for 3 sec
- J - Previous or default sensor input will be display for 2 sec
1 2 3 Process Value
Connection Diagram
20 19 18 17 16 15 14 13 12 11
-
+ TC
O/P
RTD
S.S.R
Made in India
100 ~
270V AC
www.multispanindia.com
!
50/60 Hz
4VA RELAY
NC C NO
L N
1 2 3 4 5 6 7 8 9 10
UTC-113P,213P,413P
UTC 213P
ºC
UTC 413P
1 2 3
1 2 3
PV
R
TUNE
SET
UTC 213P UTC 413P
72 X 72 X 85 mm 48 X 48 X 95 mm
44 X 44 mm
68 X 68 mm
J, K, PT-100 (selectable)
PT-100: -99 to 400ºC
Relative
Up to 95% RH Non Condensing
Humidity
L
1 8
100 ~
270V AC
TC
50/60 Hz
N
2 4VA 9
-
L
! 1
100 100 ~ ~
RTD
3 10 250V AC 270V AC
NO
50/60 Hz 50/60 HZ
4VA 4VA
N
2
4 11 ! !
C
RELAY1
3
NC
www.multispanindia.com
NC
5 12
www.multispanindia.com
4 C
-
6 13
R1
O/P
S.S.R
NO
7 14
5
Made in India Made in India
www.multispanindia.com
Page - 1
Safety Precautions
All safety related codifications, symbols and instructions that appear in this operating manual
or on the equipment must be strictly followed to ensure the safety of the operating personnel as
well as the instrument.
If all the equipment is not handled in a manner specified by the manufacturer, it might impair the
protection provided by the equipment .
=> Read complete instructions prior to installation and operation of the unit.
WARNING : Risk of electric shock.
Warning Guidelines
1) To prevent the risk of electric shock power supply to the equipment must be kept OFF while doing the wiring
arrangement. Do not touch the terminals while power is being supplied.
2) To reduce electro magnetic interference, use wire with adequate rating and twists of the same of equal size shall
be made with shortest connection.
2
3) Cable used for connection to power source, must have a cross section of 1mm or greater. These wires
should have insulations capacity made of at least 1.5kV.
4) When extending the thermocouple lead wires, always use thermocouple compensation wires for wiring for the RTD
type, use a wiring material with a small lead resistance (5Ω max per line)and no resistance differentials among
three wires should be present.
5) A better anti-noise effect can be expected by using standard power supply cable for the instrument.
Installation Guidelines
1) This equipment, being built-in-type, normally becomes a part of main control panel and such in case the
terminals do not remain accessible to the end user after installation and internal wiring.
2) Do not allow pieces of metal, wire clippings, or fine metallic fillings from installation to enter the product
or else it may lead to a safety hazard that may in turn endanger life or cause electrical shock to the operator.
3) Circuit breaker or mains switch must be installed between power source and supply terminal to
facilitate power 'ON' or 'OFF' function. However this mains switch or circuit breaker must be
installed at convenient place normally accessible to the operator.
4) Use and store the instrument within the specified ambient temperature and humidity ranges as
mentioned in this manual.
Mechanical Installation
B
D
UTC 113P
ºC
1 2 3
PV
R
A C
B D
UTC 213P
ºC
1 2 3
PV
A
R
C
TUNE
SET
B D
UTC 413P
1 2 3
A C
1) Prepare the panel cutout with proper dimensions as show above.
2) Fit the unit into the panel with the help of clamp given.
3) The equipment in its installed state must not come in close proximity to any heating source,
caustic vapors, oils steam, or other unwanted process by products.
4) Use the specified size of crimp terminal (M3.5 screws) to wire the terminal block. Tightening the
screws on the terminal block using the tightening torque of the range of 1.2 N.m.
5) Do not connect anything to unused terminals.
6
Maintenance
TC
7
-
1) The equipment should be cleaned regularly to avoid blockage of ventilating parts.
RTD 2) Clean the equipment with a clean soft cloth. Do not use isopropyl alcohol or any other cleaning agent.
8
3) Fusible resistor must not be replaced by operator.
9
Product improvement and upgrade is a constant procedure. So for more updated operating information and support,
10
Please contact our helpline : +91-9978991474/76/82 or Email at service@multispanindia.com
UTC-113P,213P,413P
E
136mm - 5.35 inches
F
MODEL A B
96mm 96mm 92mm
DIMENSIONS
E
F 95mm - 3.75 inches
MODEL A B
72mm 72mm 68mm
DIMENSIONS
68mm - 2.68 inches
E F
MODEL A B
48mm 48mm 44mm
DIMENSIONS
Page - 2
C D E F
92mm 3mm 50mm
C D E F
68mm 3mm 85mm
C D E F
44mm 3mm 95mm
Ver: 01-2017
