OPERATING MANUAL

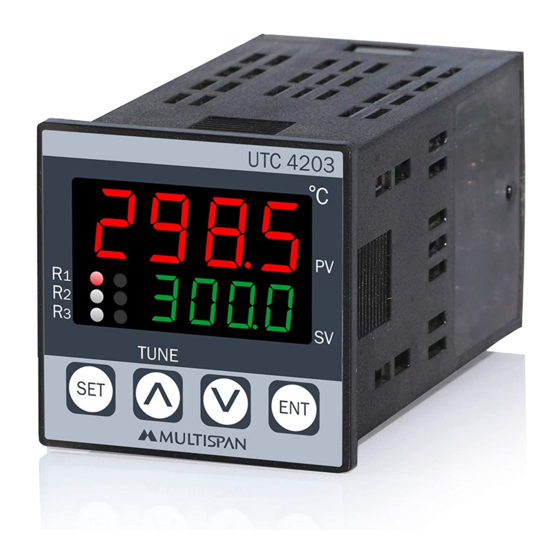

UNIVERSAL TEMPERATURE CONTROLLER
UTC-4203
Technical Specification
Model
Display
Size
Panel Cutout
Input
Temperature
Range
Control Action
Output
Power Supply
Note :
1) Press
+
2) Press
SET
SET
key to go to next parameter.
3) Press
or
4) Press
key for 6 sec to start/stop PID auto-tunning.
5) Every time the instrument is turned ON, following pattern will be
displayed
POWER ON
8 8 88
8
8
8
8
j
Previous or default sensor input will be display for 2 sec
I N P t
0 1 2 3
0 1 2 3
[
UTC-4203
1 2 3 4
1 2 3 4
R
3
UTC-4203
UTC-4203
UPPER:- 4 Digit 7 seg .39",Red LED Display
LOWER:- 4 Digit 7 seg .28",Green LED Display
48 X 48 X 95
44 X 44
J, K, PT-100 (selectable)
°
J: 0 to 600 C / K: 0 to 1200 C /
PT-100: -99 to 400 C /PT.1: -99.0 to 400.0 C
TP-PID / ON-OFF (selectable)
2 relay, 1 C/O contact, 230V AC, 5A ,1 SSR, 12V DC, 50 mA
110 to 250V AC, 50 / 60 Hz smps
key for 3 sec to go to Factory Setting mode.
to enter value or to select option.
All digit segment will be turned ON for 3 sec
Process Value
Set Value
Page - 1
UTC-4203
°
º
°
www.multispanindia.com
