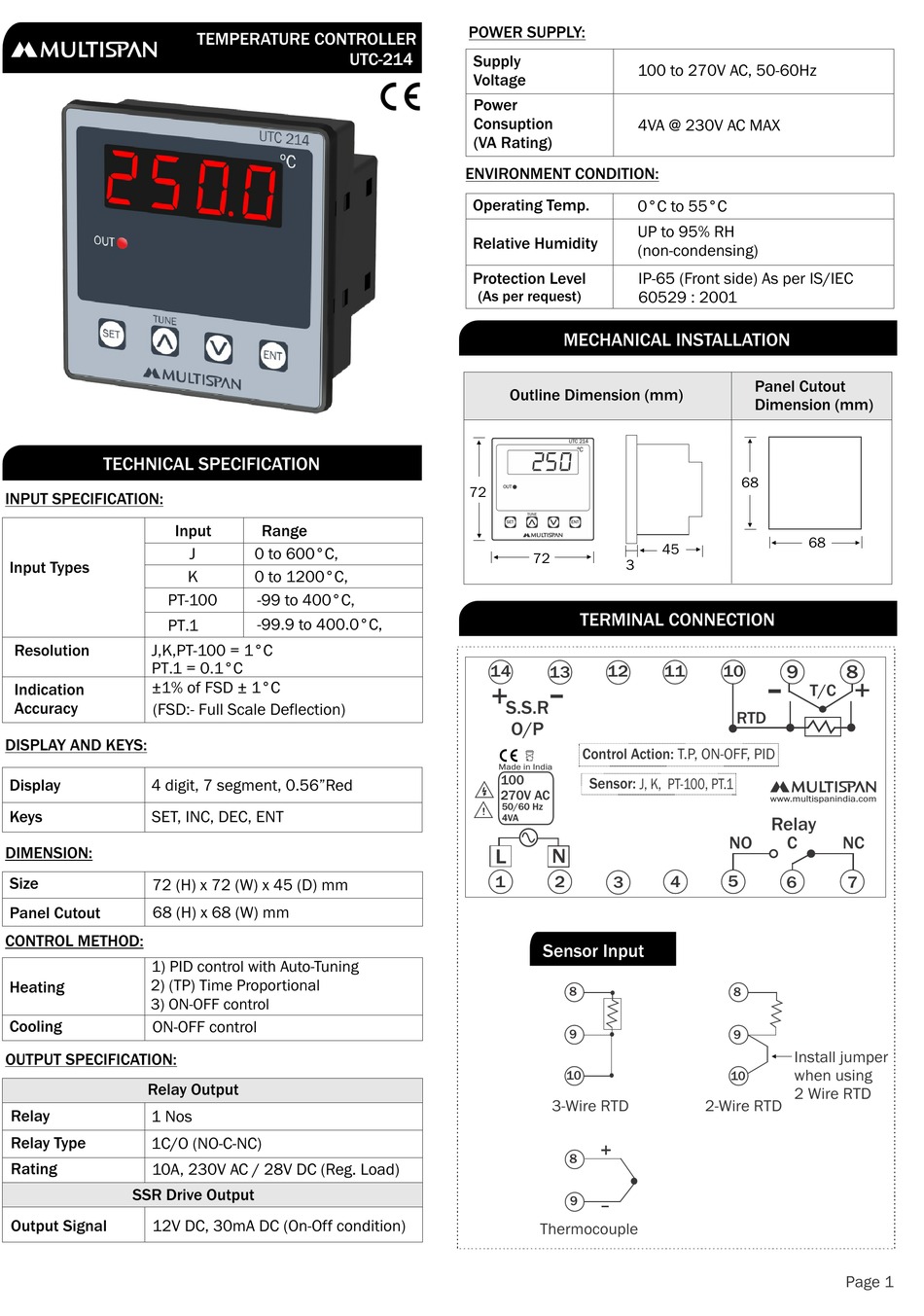

TECHNICAL SPECIFICATION

INPUT SPECIFICATION:
Input
Input Types
PT-100
PT.1
Resolution
J,K,PT-100 = 1°C
PT.1 = 0.1°C
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:- Full Scale Deflection)
DISPLAY AND KEYS:
Display
4 digit, 7 segment, 0.56"Red
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
72 (H) x 72 (W) x 45 (D) mm
Panel Cutout
68 (H) x 68 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
2) (TP) Time Proportional
Heating
3) ON-OFF control
Cooling
ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay
1 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC (Reg. Load)
SSR Drive Output
Output Signal
12V DC, 30mA DC (On-Off condition)
TEMPERATURE CONTROLLER
UTC-214
Range
J
0 to 600°C,
K
0 to 1200°C,
-99 to 400°C,
-99.9 to 400.0°C,
POWER SUPPLY:
Supply
100 to 270V AC, 50-60Hz
Voltage
Power
Consuption
4VA @ 230V AC MAX
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001

MECHANICAL INSTALLATION

Outline Dimension (mm)
UTC 214
ºC
250
OUT
72
SET
ENT
72
3

TERMINAL CONNECTION

14
12
13
-
S.S.R
O/P
Control Action: T.P, ON-OFF, PID
Made in India
~
100
Sensor: J, K, PT-100, PT.1
270V AC
50/60 Hz
!
4VA
L
N
1
2
3

Sensor Input

8
9
10
3-Wire RTD
8
9
Thermocouple
Panel Cutout
Dimension (mm)
68
68
45
11
10
9
-
T/C
RTD
www.multispanindia.com
Relay
NO
C
4
5
6
8
9
Install jumper
when using
10
2 Wire RTD
2-Wire RTD
8
NC
7
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTC-214 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MULTISPAN UTC-214

  • Page 1 POWER SUPPLY: TEMPERATURE CONTROLLER UTC-214 Supply 100 to 270V AC, 50-60Hz Voltage Power Consuption 4VA @ 230V AC MAX (VA Rating) ENVIRONMENT CONDITION: Operating Temp. 0°C to 55°C UP to 95% RH Relative Humidity (non-condensing) Protection Level IP-65 (Front side) As per IS/IEC...
  • Page 2 STATUS LED DESCRIPTION WARNING GUIDELINES WARNING : Risk of electric shock. 1. To prevent the risk of electric shock, power supply to the equipment must be kept OFF while doing the wiring arrangement. Do not touch the terminals while power is being supplied.
  • Page 3 PARAMETER SETTING Basic Configuration Control Parameter Password Password pass pass Message Message Press Press Password is 73 Password is 37 Press Press INPT Input IP TP Action IF PID Action Selected Selected Press Proportional ( J/K / PT / PT.1) Proportional PT PT.1 Band...
  • Page 4 ERROR DISPLAY CONTROL FUNCTION When an error has occurred the display indicates error codes ON - OFF control (Heating) as given below. ERROR MEANING RLY-OFF RLY-OFF Sensor is not connected or OPEN Over range condition or sensor break HYST RLY-ON Sensor connection is reversed RLY-ON RLY-OFF...
