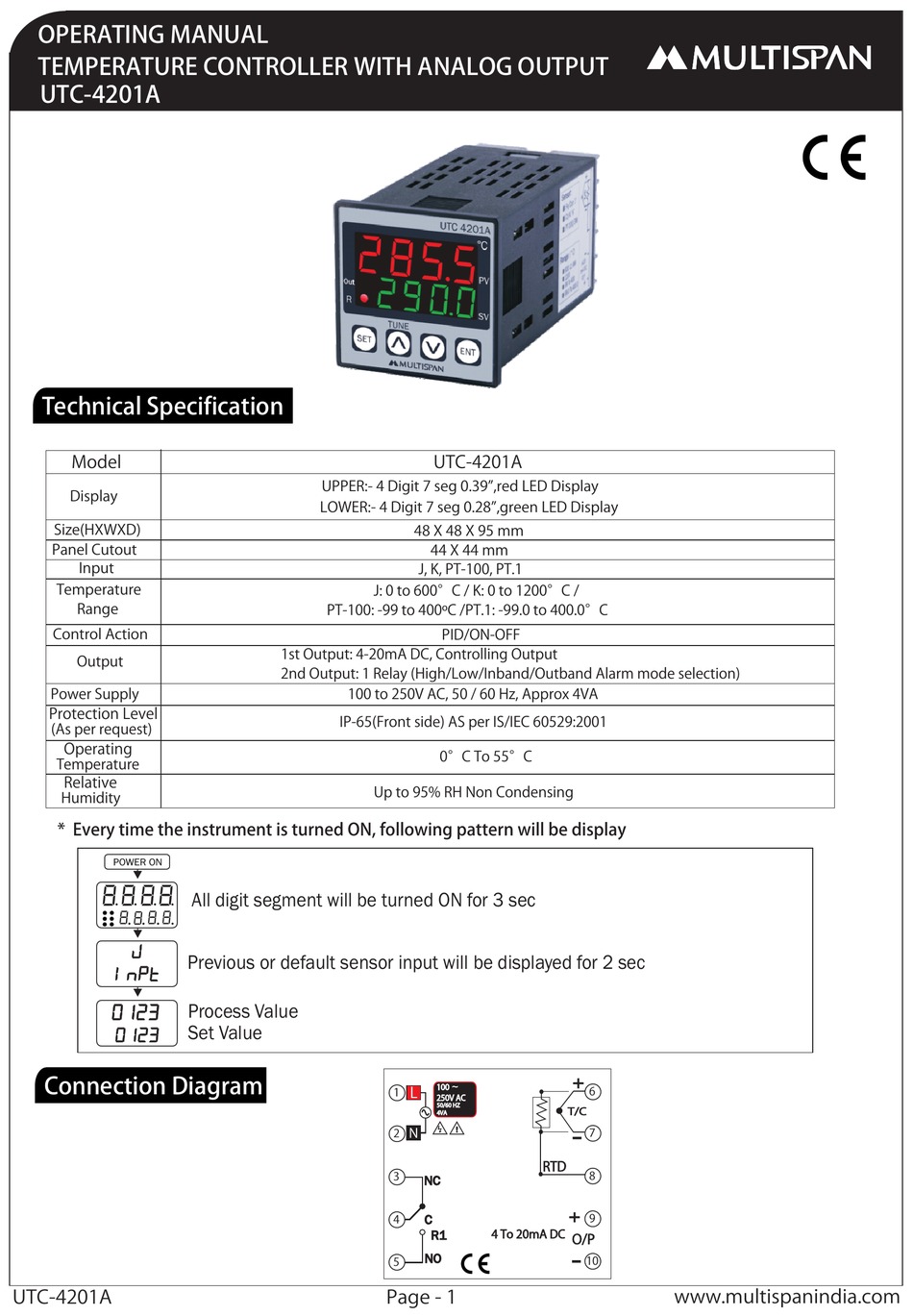

MULTISPAN UTC-4201A Operating Manual

OPERATING MANUAL
TEMPERATURE CONTROLLER WITH ANALOG OUTPUT
UTC-4201A
Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Input
Temperature
Range
Control Action
Output
Power Supply
Protection Level
(As per request)
Operating
Temperature
Relative
Humidity
* Every time the instrument is turned ON, following pattern will be display
POWER ON
  
   




Connection Diagram
UTC-4201A
UPPER:- 4 Digit 7 seg 0.39 ,red LED Display
LOWER:- 4 Digit 7 seg 0.28 ,green LED Display
PT-100: -99 to 400ºC /PT.1: -99.0 to 400.0°C
1st Output: 4-20mA DC, Controlling Output
2nd Output: 1 Relay (High/Low/Inband/Outband Alarm mode selection)
100 to 250V AC, 50 / 60 Hz, Approx 4VA
IP-65(Front side) AS per IS/IEC 60529:2001
All digit segment will be turned ON for 3 sec
Previous or default sensor input will be displayed for 2 sec
Process Value
Set Value
UTC-4201A
48 X 48 X 95 mm
44 X 44 mm
J, K, PT-100, PT.1
J: 0 to 600°C / K: 0 to 1200°C /
PID/ON-OFF
0°C To 55°C
Up to 95% RH Non Condensing
~
100
L
1
250V AC
50/60 HZ
4VA
N !
2
RTD
3
NC
4
C
4 To 20mA DC
R1
NO
5
Page - 1
6
T/C
7
-
8
9
O/P
- 10
www.multispanindia.com
