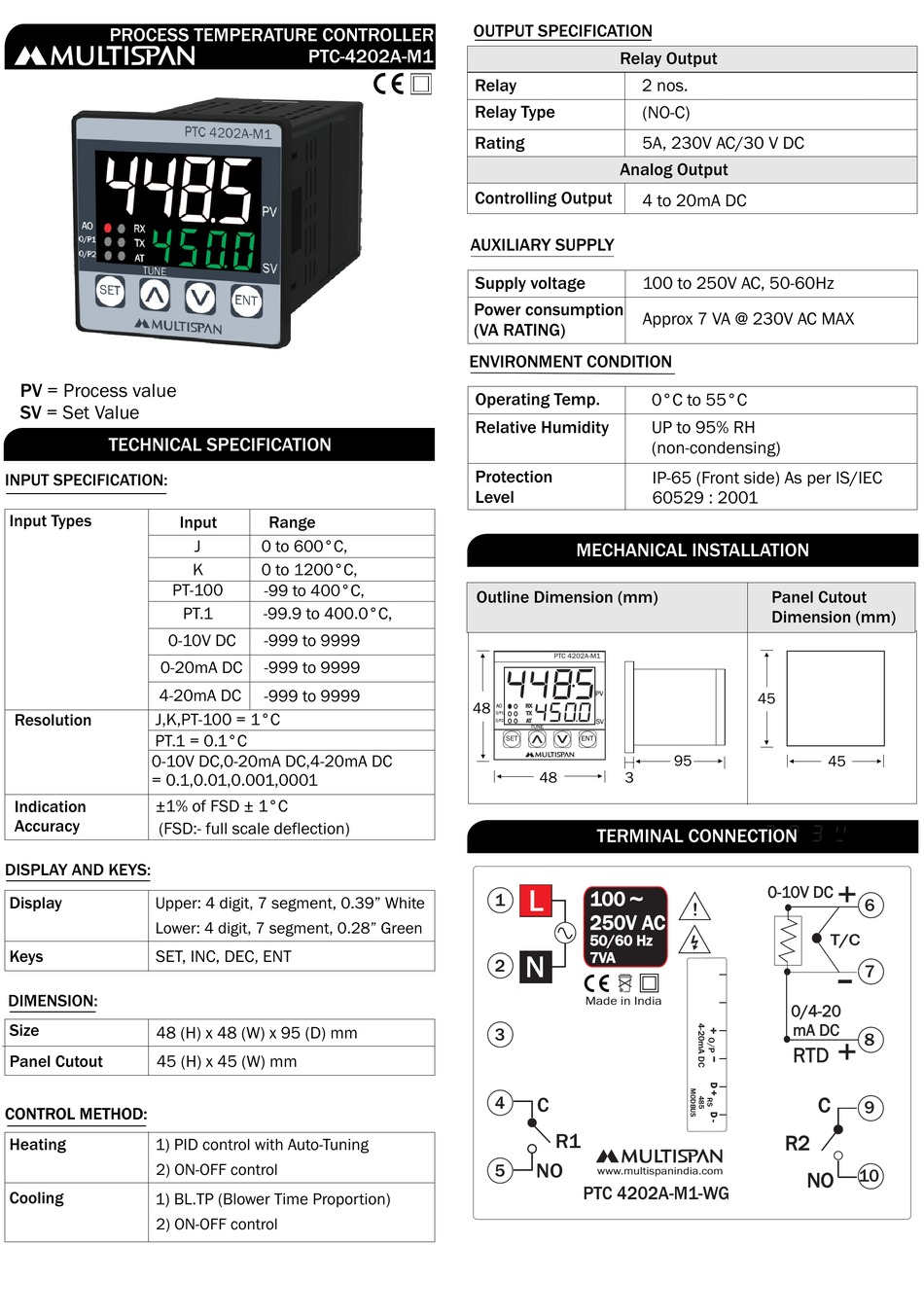

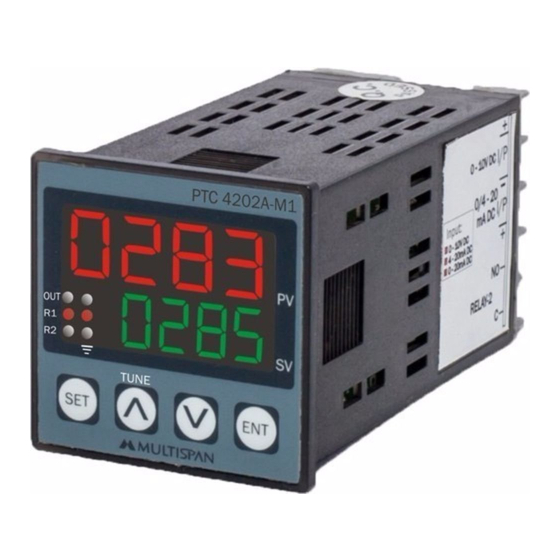

PROCESS TEMPERATURE CONTROLLER
PV = Process value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input Types
Input
PT-100
0-10V DC
0-20mA DC
4-20mA DC
Resolution
J,K,PT-100 = 1°C
PT.1 = 0.1°C
0-10V DC,0-20mA DC,4-20mA DC
= 0.1,0.01,0.001,0001
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:- full scale deflection)
DISPLAY AND KEYS:
Display
Upper: 4 digit, 7 segment, 0.39" White
Lower: 4 digit, 7 segment, 0.28" Green
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
48 (H) x 48 (W) x 95 (D) mm
45 (H) x 45 (W) mm
Panel Cutout
CONTROL METHOD:
CONTROL METHOD:
Heating
1) PID control with Auto-Tuning
2) ON-OFF control
Cooling
1) BL.TP (Blower Time Proportion)
2) ON-OFF control
PTC-4202A-M1
Range
J
0 to 600°C,
K
0 to 1200°C,
-99 to 400°C,
PT.1
-99.9 to 400.0°C,
-999 to 9999
-999 to 9999
-999 to 9999
OUTPUT SPECIFICATION
Relay Output
Relay
2 nos.
Relay Type
(NO-C)
Rating
5A, 230V AC/30 V DC
Analog Output
Controlling Output
4 to 20mA DC
AUXILIARY SUPPLY
Supply voltage
100 to 250V AC, 50-60Hz
Power consumption
Approx 7 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION
Operating Temp.
Relative Humidity
Protection
Level
MECHANICAL INSTALLATION
Outline Dimension (mm)
PTC 4202A-M1
4485
PV
4500
48
AO
RX
O/P1
TX
O/P2
AT
SV
TUNE
SET
ENT
48
3
TERMINAL CONNECTION
L
~
100
1
250V AC
50/60 Hz
7VA
N
2
Made in India
3
4
C
R1
NO
5
www.multispanindia.com
PTC 4202A-M1-WG
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
45
95
3 P 3 w
0-10V DC
!
0/4-20
mA DC
+
RTD
C
R2
NO
45
6
T/C
7
-
8
9
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTC-4202A-M1 and is the answer not in the manual?

Questions and answers

Summary of Contents for MULTISPAN PTC-4202A-M1

  • Page 1 OUTPUT SPECIFICATION PROCESS TEMPERATURE CONTROLLER PTC-4202A-M1 Relay Output Relay 2 nos. Relay Type (NO-C) Rating 5A, 230V AC/30 V DC Analog Output Controlling Output 4 to 20mA DC AUXILIARY SUPPLY Supply voltage 100 to 250V AC, 50-60Hz Power consumption Approx 7 VA @ 230V AC MAX...
  • Page 2: Maintenance

    STATUS LED DESCRIPTION MECHANICAL INSTALLATION GUIDELINES 2 345 1. Prepare the panel cutout with proper dimensions as shown above. 2. Fit the unit into the panel with the help of clamp given. 2500 3. The equipment in its installed state must not come in close proximity to any heating source, caustic vapors, oil steam, or other unwanted process byproducts.
  • Page 3 FACTORY SETTING PARAMETER MESSAGE DESCRIPTION Hysterisis 2 HYS2 OutPut 1 Mode OUT1 Press+key Soak Time Select for3sec Soak Mode S MD S UT Soak Unit Soak Time Value : press key to apply factory set values as shown in table. Soak Time Memory : press key to escape...
  • Page 4: Error Display

    PARAMETER MESSAGE DESCRIPTION ERROR DISPLAY When an error has occurred the display indicates error codes LOPC Low percentage as given below. HIPC High percentage ERROR MEANING FRWD Forword Sensor is not connected Reverse REVR OPEN Over range condition or sensor break ADDR Address BAUD...
  • Page 5: Parameter Setting

    PARAMETER SETTING PARAMETER SETTING Set Point Setting Process Value Set Value Presskey Analog O/P = Controlling Analog O/P = Controlling ALM1=IN-B,AB-O S1MD = INDI ALM1=IN-B,AB-O Presskey Presskey Presskey ALM2=IN-B,AB-O Presskey S2MD = INDI ALM1=IN-B,AB-O Presskey Presskey Presskey If Soak = Yes Analog Output Selection ModBus IF A.OUT=PV/SV...
  • Page 6: Basic Configuration

    BASIC CONFIGURATION CONTROL PARAMETER SETTING If A.Out Con If A.Out Con If CTR1 PID /// PARA // Analog O/P = Controlling Analog O/P = Controlling Factory Set controlling output = 4 to 20mA DC Case 1: Heat + soak + alarm Case 8: Soak + alarm + alarm Case 2: Heat + Heat Case 9: Heat + Heat...
  • Page 7 Case - 1 Case - 3 Case - 4 Heat + Soak + Alarm Heat + Cool Heat + Alarm If ON-OFF If PID If ON-OFF Selected Selected Selected If PID Selected IF HIGH/ IN - B / AB-L If ON-OFF Selected If PID Selected AB - 0 Case - 5...
  • Page 8 Case - 7 & 14 Case - 8 Case - 10 Case - 11 Alarm + Alarm SOAK + ALRM + ALRM Heat + Cool Heat + Alarm IF HIGH/ AB-L IN - B / AB - 0 Relative IF HIGH/ IN - B/ Individual AB-L...
  • Page 9 MODBUS Register Salve Address : 1 to 127 Access Sr.No Data Type Baudrate : 2400,4800,9600,38400bps Parameter Type Parity : None,Even,Odd Integer Float Datatype : Sign integer, Float Hys3 Read Function Register : 0x03 and 0x04 Delay Time3 Write Function Register : 0x06 and 0x10 Alarm Time3 Note :- When Parameter 32100 = no available...
  • Page 10 Alarm1 Selection Value End Alarm Abs Low C PB High Alarm C ON In Band C OF Abs Out Band Auto Tune Hys1 Value Selection Delay Time1 Alarm Time1 Out2 Mode Address Selection Value Baudrate Heat Value Selection Cool Alarm B 2400 Off Mode B 4800...
  • Page 11 Data type = Sign Integer show value as per following DP Selection Input Actual Value J,K,Pt Value/1 Pt.1 Value/10 Where Parameter is 1,6-14,19,25,32,44-46,48,49,57,69,70 Value/1 0-10V DC Value/10 0-20 mA DC Value/100 4-20mA DC Value/1000 Where Parameter is 5 ,20,26,33 0-10V DC Value/10 0-20 mA DC 4-20mA DC...
