Using Bite Alignment Tools

When you have successfully completed the Bite Alignment for your patient, you can
use the Bite-Alignment tools to visually inspect the quality of the alignment scans.

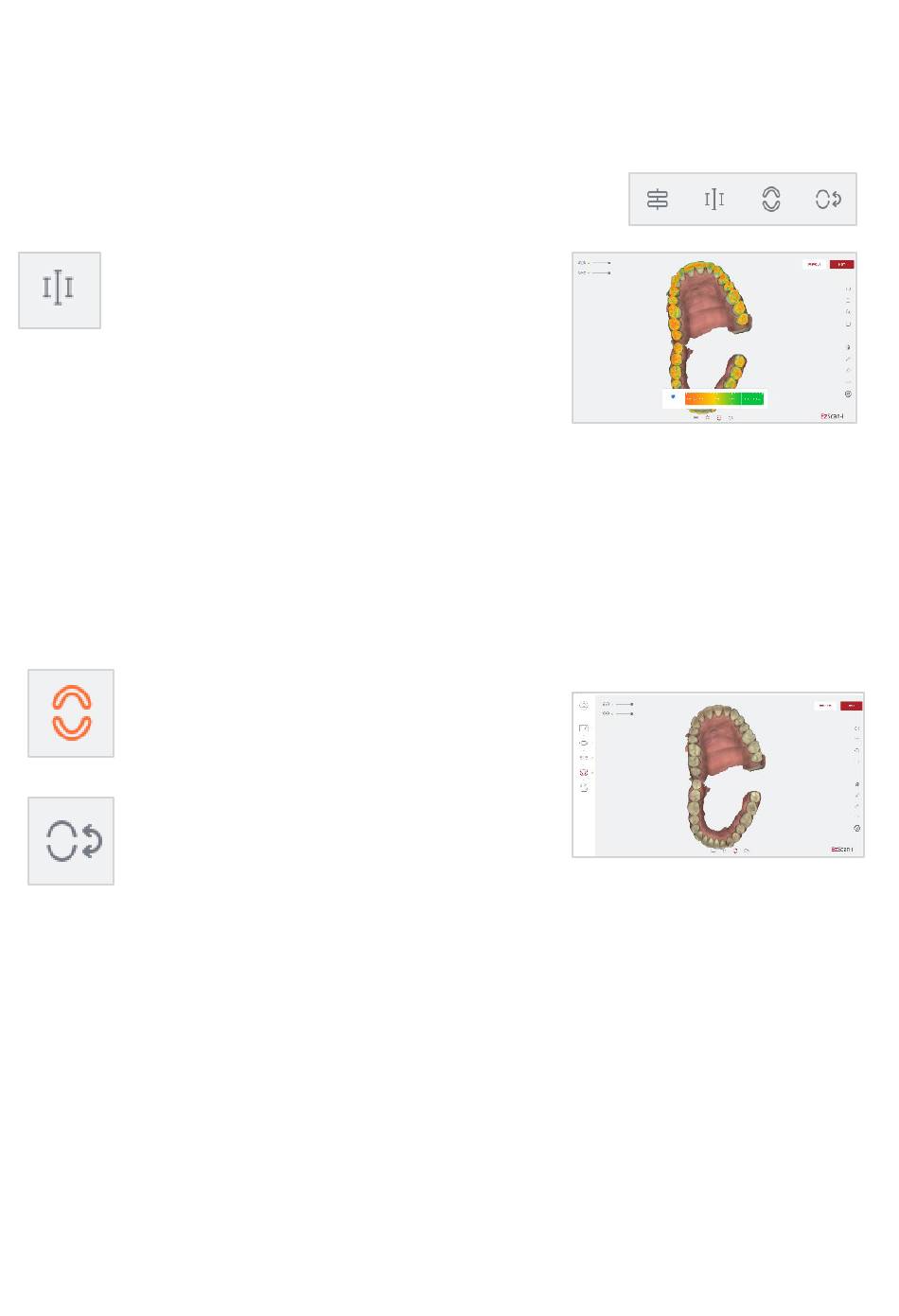

The Bite-Alignment Tool menu is displayed below the 3D
reconstructed image of the bite alignment.
Occlusion Distance Map
To visually check the clearance distance
between the maxillary and mandibular arch
scans:
STEP 1.
STEP 2.
Contact points are indicated as shown.
Open Jaws
You can use this tool to open the jaws after
the bite alignment, to better inspect your
scans.
Swap Jaws
Allows the user to swap jaw scans (in case
lower was scanned instead of upper or
vice versa).
Page 64
Click on the Occlusion Distance Map
icon in the Bite Alignment Tool
menu.
Adjust the color map by dragging the visual slider to
the desired value.
User Manual
