Chapter 3 12-Pin Interface and Indicator

3.1 12-Pin Interface

Read the following section to get definitions of 12-pin M12 interface.
No. Signal
1 DC-PWR
2 GND
3 OPTO_OUT0
4 OPTO_OUT1
5 OPTO_OUT2
6 OUT_COM
7 OPTO_IN0
8 OPTO_IN1
9 OPTO_IN2
10 IN_COM
11 RS-232_R
12 RS-232_T
SC5000 Series Smart Camera Quick Start Guide

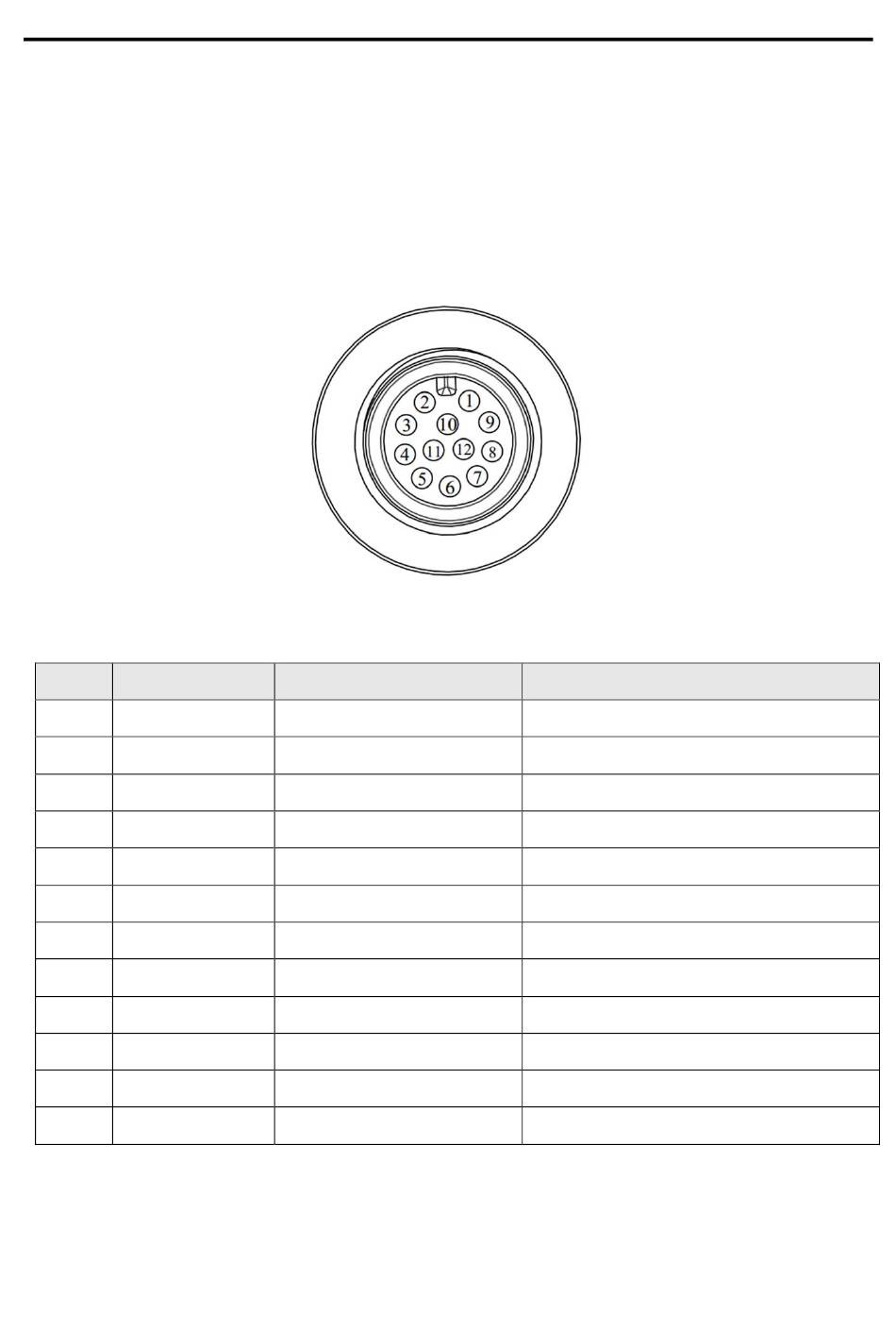

Figure 3-1 12-Pin M12 Interface
Table 3-1 Pin Definitions
I/O Signal Source
--
--
Line 3 signal line
Line 4 signal line
Line 5 signal line
Line 3/4/5 signal ground
Line 0 signal line
Line 1 signal line
Line 2 signal line
Line 0/1/2 signal ground
--
--
Direct current power supply positive
Power supply ground
Opto-isolated output 3
Opto-isolated output 4
Opto-isolated output 5
Output signal ground
Opto-isolated input 0
Opto-isolated input 1
Opto-isolated input 2
Input signal ground
RS-232 serial port input
RS-232 serial port output
