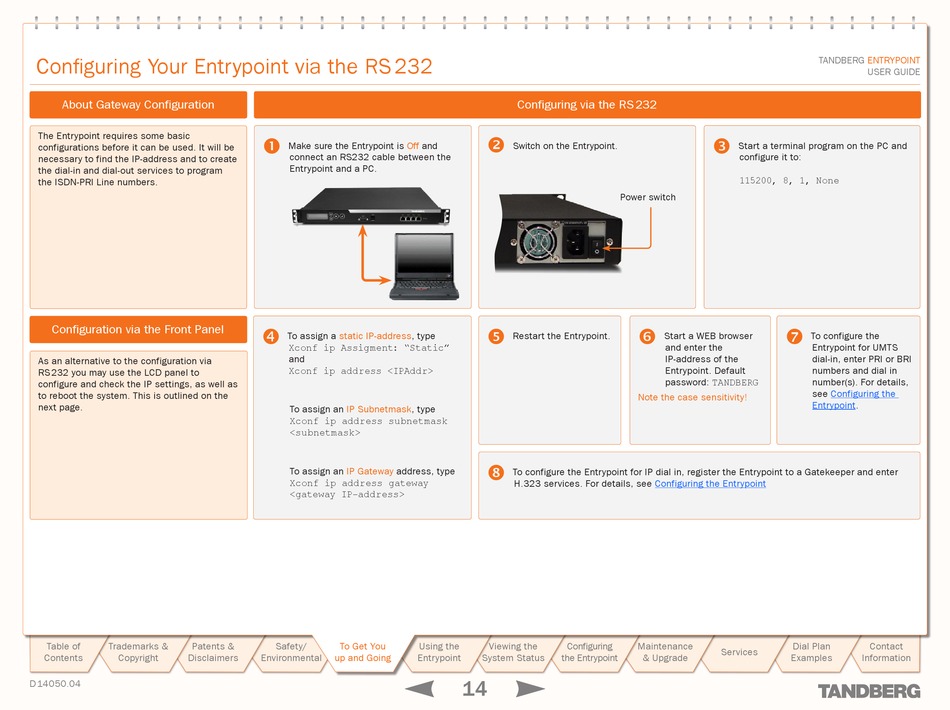

Configuring Your Entrypoint via the RS 232

About Gateway Configuration
The Entrypoint requires some basic
configurations before it can be used. It will be
necessary to find the IP-address and to create
the dial-in and dial-out services to program
the ISDN-PRI Line numbers.
Configuration via the Front Panel
As an alternative to the configuration via
RS 232 you may use the LCD panel to
configure and check the IP settings, as well as
to reboot the system. This is outlined on the
next page.
Table of Trademarks & Patents &
Contents Copyright Disclaimers
D 14050.04
10.2007

Make sure the Entrypoint is Off and
connect an RS232 cable between the
Entrypoint and a PC.

To assign a static IP-address, type
Xconf ip Assigment: "Static"
and
Xconf ip address <IPAddr>
To assign an IP Subnetmask, type
Xconf ip address subnetmask
<subnetmask>
To assign an IP Gateway address, type
Xconf ip address gateway
<gateway IP-address>
Safety/ To Get You To Get You Using the
Environmental Up and Going up and Going Entrypoint
Configuring via the RS 232

Switch on the Entrypoint.
Power switch
 
Restart the Entrypoint.
Note the case sensitivity!

To configure the Entrypoint for IP dial in, register the Entrypoint to a Gatekeeper and enter
H.323 services. For details, see
Viewing the Configuring Maintenance
System Status the Entrypoint
14
TANDBERG

Start a terminal program on the PC and
configure it to:
115200, 8, 1, None

Start a WEB browser To configure the
and enter the Entrypoint for UMTS
IP-address of the dial-in, enter PRI or BRI
Entrypoint. Default numbers and dial in
password: TANDBERG
number(s). For details,
see
Entrypoint.
