Tandberg Edge Installation

Step 1
1.

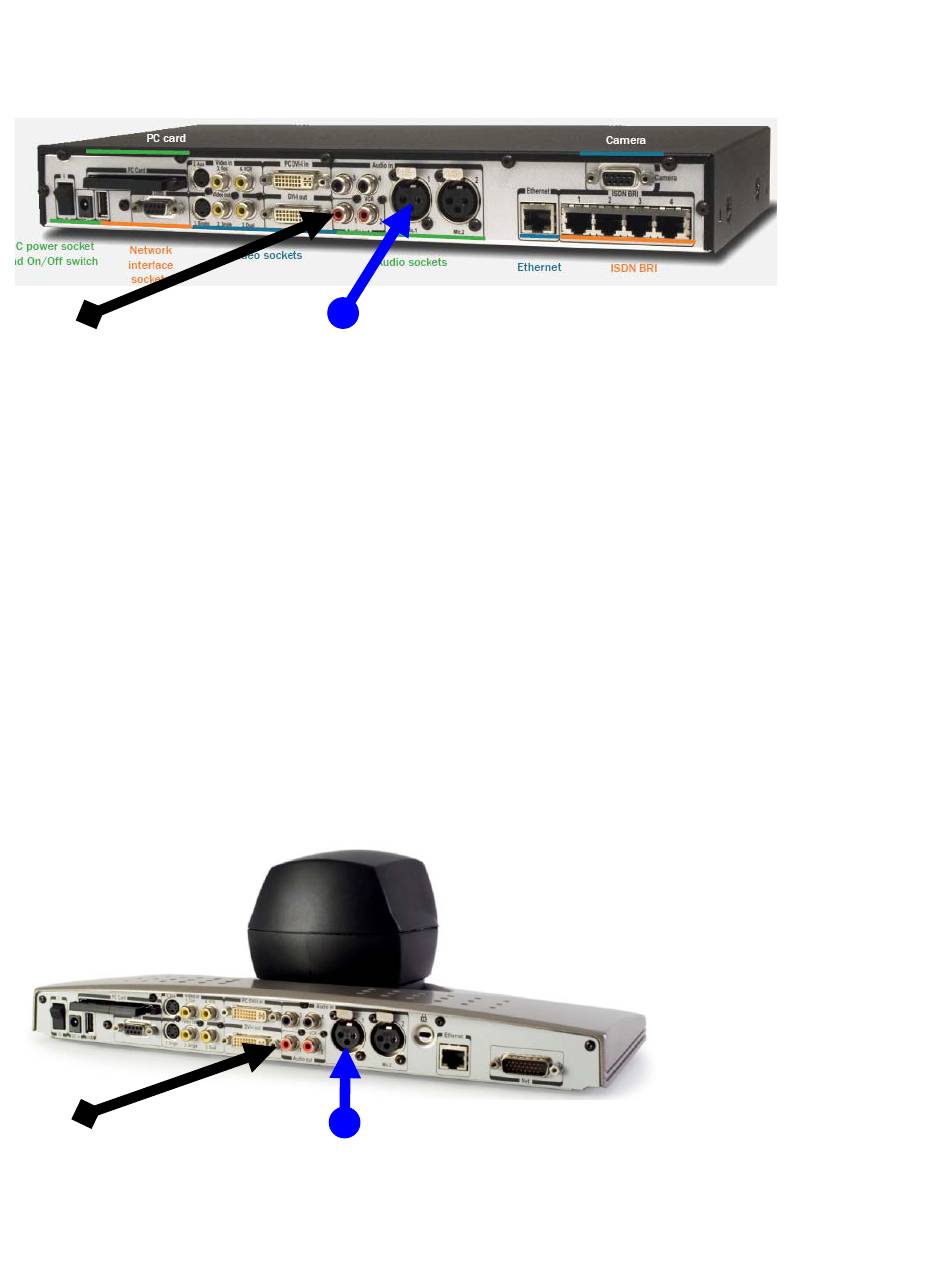

Plug the black RCA connector on one end of Cable C into Tandberg video-station <Audio Out 1>, and then plug
the black RCA connector on the other end into the Fusion Base Station <Conf In>. The other RCA connector is
not used.
2.
Plug one XLR connector of Cable D, XLR to XLR, into Tandberg video-station <Mic 1 Input> and the other XLR
connector into the Fusion Base Station Mic Level Output <XLR>.
To configure the Tandberg system:
Select the button from the main screen to access the System menu.
Go to Audio settings
Confirm or modify the following settings:
Input 1 - MIC
Output 1 - ON
Audio Leveling - OFF
Echo Canceller and Noise Reduction (EC and NR) - OFF
Adjust the audio Input Level if necessary.
Speak into the Revolabs microphones that are connected to the audio line inputs.
The audio meter should peak at about 5 dB.

Tandberg Set Top MXP Installation

Step 1
1.
Plug the black RCA connector on one end of Cable C into Tandberg video-station <Audio Out 1>, and then plug
the black RCA connector on the other end into the Fusion Base Station <Conf In>. The other RCA connector is
not used.
Step 2
Step 2
