Setting DIII-NET address for each air conditioner

The DIII-NET system has the control address used to identify each air conditioner group.
This can be referred to as DIII-NET address. You must set the DIII-NET address manually
using the remote controller of air conditioner.
There are several types of the remote controller, and the setting method differs depending
on the controller type. This section describes commonly used two types of remote control-
lers, wired and navigation remote controllers, as examples.
• Make sure that the iTM plus adaptor is connected to the intelligent Touch Man-
ager and that both units are powered on. You cannot perform address settings
for air conditioners without turning on the power supply.
• For how to set the address for the Ventilator (Heat Reclaim Ventilator) or differ-
ent adapters (such as a universal adapter), refer to the manuals supplied with
those devices.
4.1

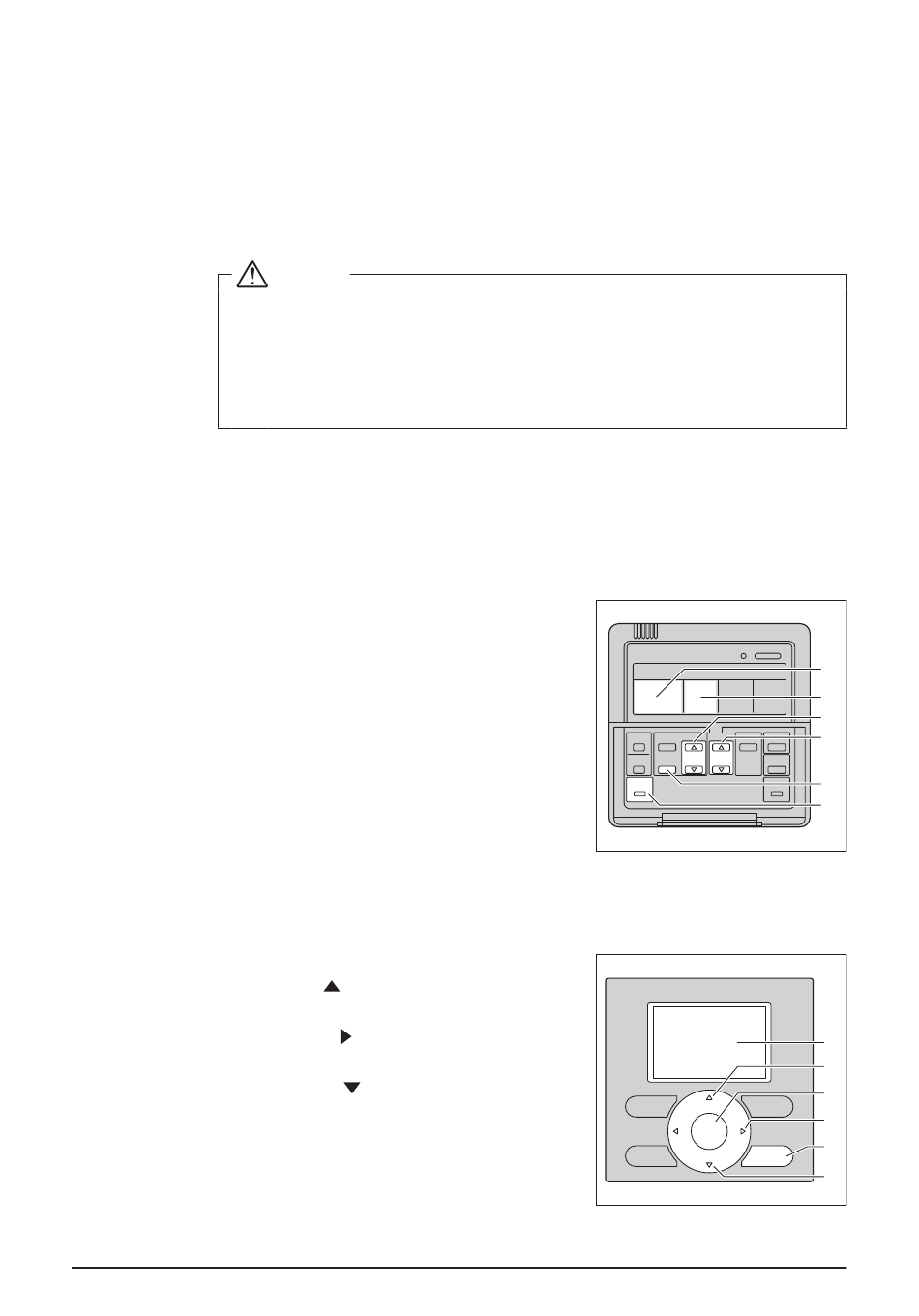

Names of buttons and display areas

The names of buttons and areas of a wired remote controller used in this section are
shown below.
A
B
C
D
E
F
The names of buttons and areas of a navigation remote controller used in this section are
shown below.
A
B
C
D
E
F
English
CAUTION
Address display area
Parameter number display area
Programming time buttons
Temperature setting buttons
SCHEDULE button
Inspection / Test operation button (for service)
Display (with backlight)
Up button
Menu / OK button
Right button
Cancel button
Down button
Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
<Wired remote controller>
<Navigation Remote controller>
A
B
C
D
E
F
A
B
C
D
E
F
