Secure installation of iTM plus adaptor
There are the following two ways to install the iTM plus adaptor.
• Screw mounting to control enclosure
• DIN rail mounting
3.1
Screw mounting to control enclosure
3.1.1
Installation procedure
Secure the iTM plus adaptor to the control enclosure using the supplied round-head wood
screws. When done, remove the blue protective film from the upper portion of the unit
body.

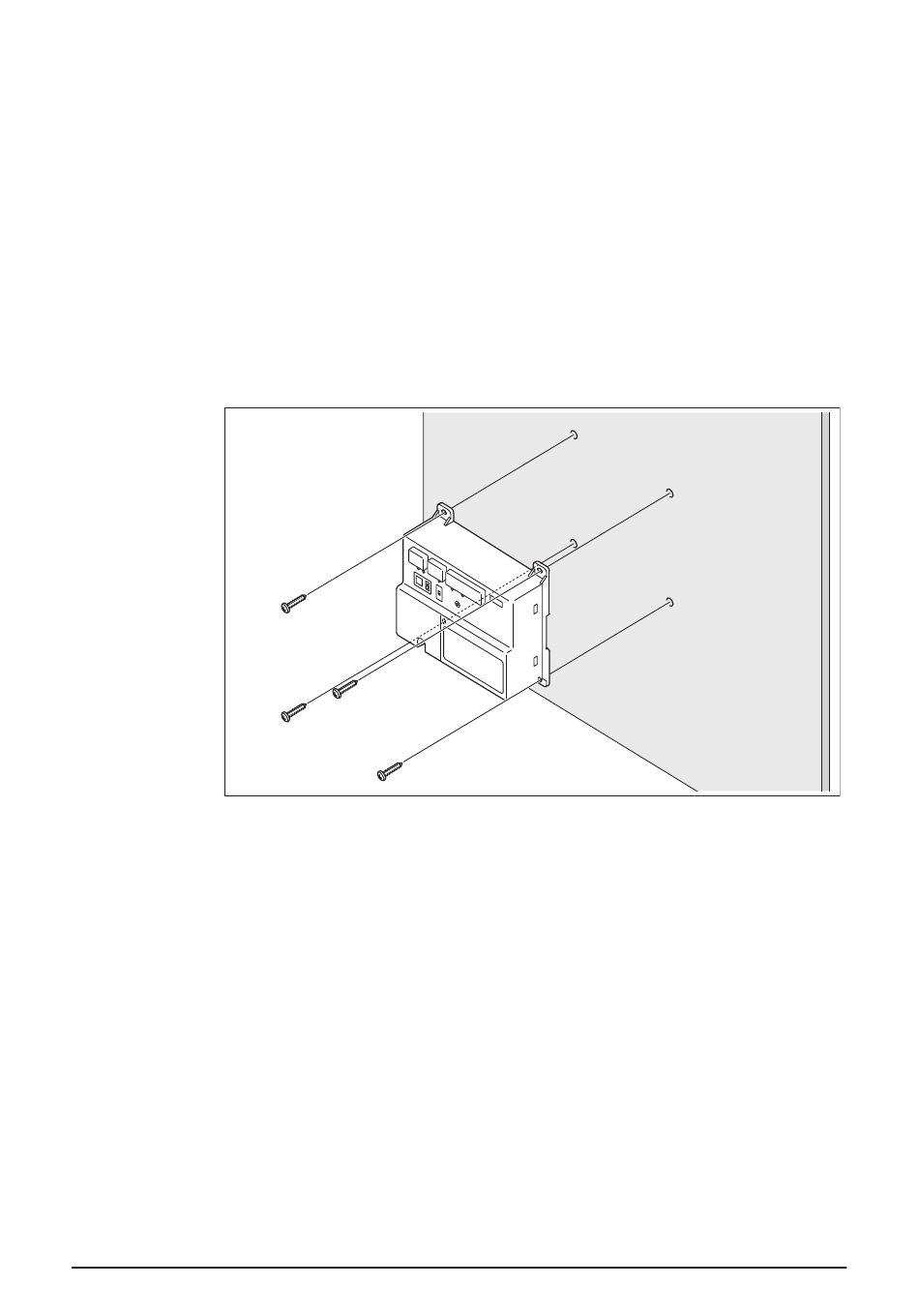

<Mounting to control enclosure>
22
Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
English
