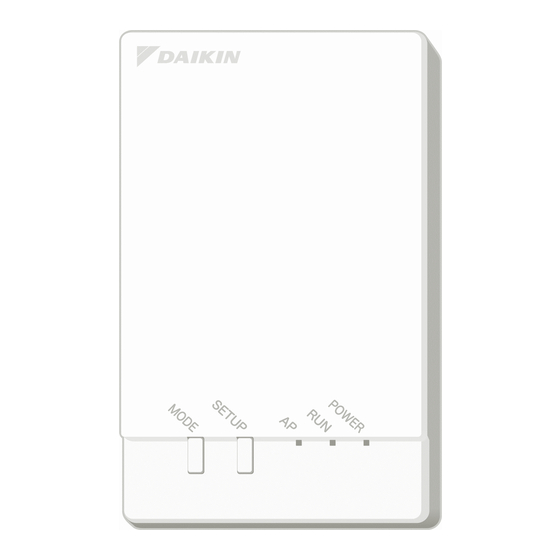

- Page 1 OPERATION MANUAL Wireless LAN connecting Adaptor for Ducted Split Systems MODEL: BRP15B61...
- Page 2 To provide secure control of the air conditioner, a fixed KEY associated with the SSID number of the interface will be requested by the App any time a new device is connected for the first time. The KEY and SSID number are printed on the side of the interface.
-
Page 3: Table Of Contents
CONTENTS 1. Features 7. On/Off Timer 2. About the App 7.1. Overview 2.1. Set Up the App 7.2. Edit Action 2.2. App menu 8. DEMO mode 2.3. Displayed icons 9. General settings 3. Initial setup 9.1. Reinitialize application 3.1. Add an adapter 9.2. -
Page 4: Features
1. Features This app is useful in the following situations: When you want to turn your Ducted Split Systems ON or OFF while outside the home When you want to check the status of your air conditioner while outside the home. →... -
Page 5: Set Up The App
From you smartphone, go to Apple App Store or Google Play Store to download and install the Daikin Airbase app. The app supports: - iPhone®: iOS v.8.0 and above. - Android™ Phone: Android™ v.5.0 and above. b) Tap the Daikin Airbase app to launch it. -
Page 6: About The App
2. About the App 2.2. App menu The App menu can be accessed by tapping the Menu on the screen. [About the screen] Tap to open/close the App menu. Displays the current status of the connection with the system. “In-Home” (At home): Connected via domestic LAN. Displays when operating from indoors. -
Page 7: Displayed Icons
2. About the App 2.3. Displayed icons Each icon indicates a state of the unit, adapter or settings. [About the screen] Tap to open/close the App menu. Tap to turn On/Off the unit. Firmware update is available. Tap the unit name to update the firmware. An error has occurred. -
Page 8: Initial Setup
3. Initial setup 3.1. Add an adapter 1) Tap “Add adapter” on the App menu. 2) Follow the on-screen instructions to connect an adapter to your home network. -
Page 9: Set A Unit Name And Icon
3. Initial setup 3.2. Set a unit name and icon 1) Tap “Home” on the App menu. 2) Tap the more options menu icon in the top right of the screen. → 5.1. Overview 3) Tap “Edit the names” to set a unit name and icon. →... -
Page 10: Set Up "Out-Of-Home" (Not At Home)
3. Initial setup 3.3. Set up “Out-of-Home” (Not at home) After completing setup, you will be able to operate the unit from outside the home. 1) Tap “Home” on the App menu. 2) Tap the name of the unit that you want to operate from outside the home. →... -
Page 11: Log In "Out-Of-Home" (Not At Home)
4. Log in “Out-of-Home” (Not at home) You can check the status of units or change their operation settings while outside the home. [About the screen] Enter the Login ID and password for “Out-of-Home” (Not at home) set from the Adapter settings screen. →... -
Page 12: Units Overview (Home)
5. Units overview (Home) 5.1. Overview Set icons and names for the units. [About the screen] Tap to open/close the App menu. Tap to refresh the screen. Displays more options menu. Displays icon, name of the unit and ID. To change units name → 5.2. Edit the names Tap to turn On/Off the unit. -
Page 13: Edit Units
5. Units overview (Home) 5.2. Edit Units Set icons and names for the units. [About the screen] Tap to select the preferred icon for the unit. Enter a name for the unit. [Note] Please enter up to 16 characters for the unit name. -
Page 14: Operation Setting
6. Operation Setting 6.1. Operation Screen setting [About the screen] Tap to turn On/Off the unit. Displays operation mode. Tap to select operation mode. (Displayed items vary by unit model.) Displays temperature and timer status. (Displayed items vary by unit model.) Displays target temperature. -
Page 15: Zone Control Setting
6. Operation Setting 6.2. Zone Control setting *If the system is fitted with a Daikin Zone Controller, “ZONES” tab will be displayed on the operation screen. [About the screen] Tap to switch CONTROLS/ZONES screen. Tap to edit zone name. You can register a name for each zone. -
Page 16: Airflow Direction Setting
6. Operation Setting 6.3. Airflow direction setting *If the App detects a Non Ducted indoor unit such as a cassette type or under ceiling unit the Airflow direction and its status symbol will be displayed. [About the screen] Displays Airflow direction. Tap to set Airflow direction. -
Page 17: On/Off Timer
7. On/Off Timer 7.1. Overview It supports On/Off timer. You can set the time in next 24 hours. Tap on the On/Off Timer ( ) button. It's the button in the bottom of Operation Screen. [About the screen] Displays name of the unit. Displays saved actions. -
Page 18: Edit Action
7. On/Off Timer 7.2. Edit action [About the screen] Displays name of the unit. Swipe up and down on the pickers to set the amount of time you want. Tap to save. Tap to be inactive the setting. -
Page 19: Demo Mode
8. DEMO mode Test out the app's functions even when a unit is not connected to a network. (Your smartphone must be connected to the internet to use DEMO mode.) -
Page 20: General Settings
9. General settings 9.1. Reinitialize application When you reinitialize the application, your login ID and password will be deleted from the login history. 9.2. Temperature unit Switch between Celsius and Fahrenheit display. -
Page 21: Push Notification
9. General settings 9.3. Push notification You can turn ON/OFF those notifications. [About the screen] You will receive a push-notification if your air conditioner has been run over 12 hours. You will receive a push-notification if someone turns on/off your air conditioner. (Example) [Note] It works only when connected via Out-of-Home”... -
Page 22: Dealer Contact
9. General settings 9.4. Dealer Contact The Dealer Contact function will allow contact details on your installer / Repair to be entered and stored so that you can easily recall their details should you need to contact in the future. [About the screen] Tap to enter your dealer name. -
Page 23: License Agreement
9. General settings 9.5. License agreement Displays the License agreement for the app. 9.6. Application version Displays the version of the app. -
Page 24: Appendix
Appendix Available Functions System Type Function Ducted with Cassette or Ducted Zone Control under Ceiling Power On/Off Temperature Setting Basic Fan Speed Setting Functions Mode Selection User Zone On Off Functions Air Flow Direction Timer On Timer Function Off Timer Configure Wi-Fi Settings Set Up Enter Text for Zone names... - Page 25 NOTE...
- Page 26 NOTE...
- Page 27 NOTE...
- Page 28 DAIKIN AUSTRALIA PTY. LIMITED 62-66 Governor Macquarie Road, Chipping Norton, NSW 2170 Australia Phone: 1300 36 24 38 www.daikin.com.au DAIKIN AIRCONDITIONING NEW ZEALAND PTY. LIMITED 525 Great South Rd, Penrose, Auckland 6, New Zealand www.daikin.co.nz DAIKIN INDUSTRIES LTD. Head office:...
