Required Space - Daikin iTM plus Installation Manual

1.4.3

Required space

The figure shown below indicates the space required for installation.
• Make sure that there is a minimum clearance of 25/32 in. between each unit and wiring
ducts.
• Multiple iTM plus adaptors can be installed without clearance in the horizontal direction.

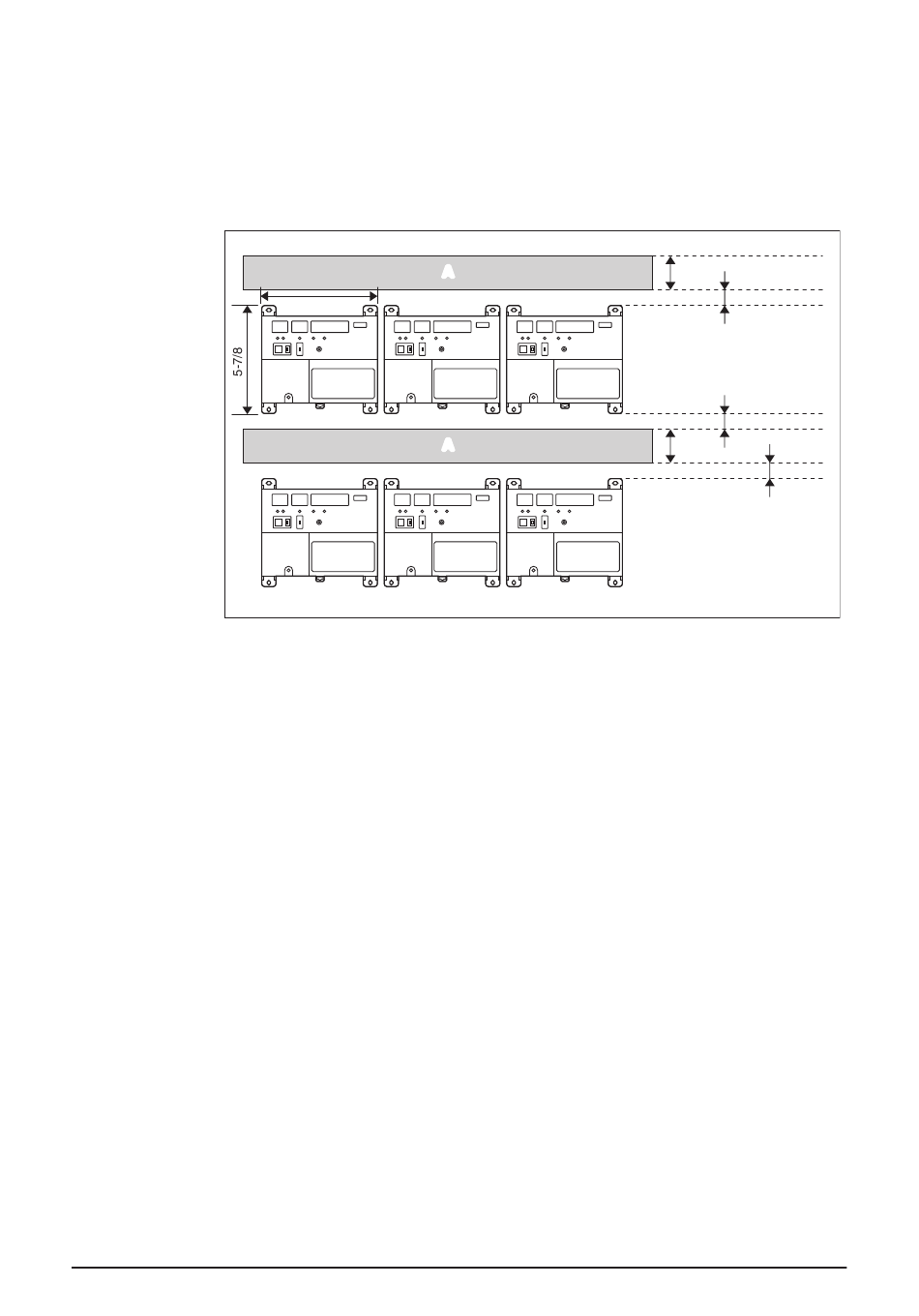

<Installation space required for iTM plus adaptor>
Required installa-
tion space
A
English
6-5/16
Wiring duct
Installation Manual 3P291714-4B
DCM601A72 iTM plus adaptor
A
A
1-9/16
25/32
25/32
1-9/16
25/32
(in.)
