- Page 1 4P563369-1 Installation Manual Wiring adaptor for electrical appendices KRP1BA58...
-
Page 3: Names Of Parts

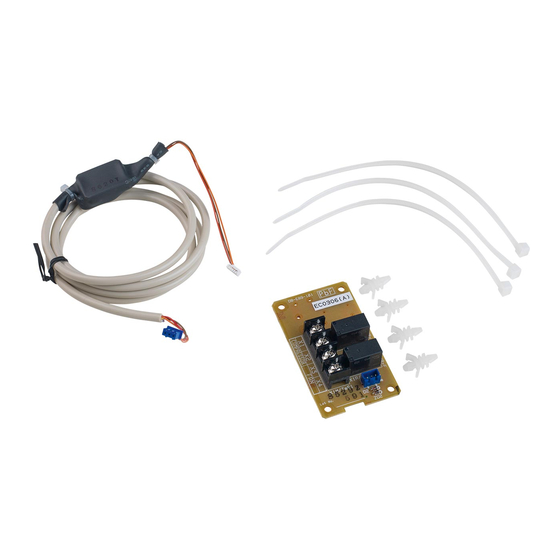

Be sure to read this manual before installation and follow the instruction. Accessories Check if the following accessories are included: Name Adaptor PCB Support Clamp Installation manual Shape Quantity Names of parts Output terminals English 1... -
Page 4: Electric Wiring
Electric wiring • Refer to the wiring diagram attached to the indoor unit before at- tempting to wire. • Make sure wires to units do not pass over the PC board when wiring. • Wire the adaptor to the indoor unit as described below. X33A Indoor unit PC board Receiving the operation display signal... -
Page 5: Installation
• Bundle any excess wires with the attached tie wraps to keep loose wirings off the indoor unit PC board. Ceiling-mounted cassette type Note: Installation box for adaptor PCB is required to install the adaptor. Lid of installation box KRP1H98 PCB support Adaptor KRP1BA58 Installation box for adaptor PCB KRP1H98 English 3... - Page 8 4P563369-1 2019.01...
