Chapter 2: Jumpers and Switches

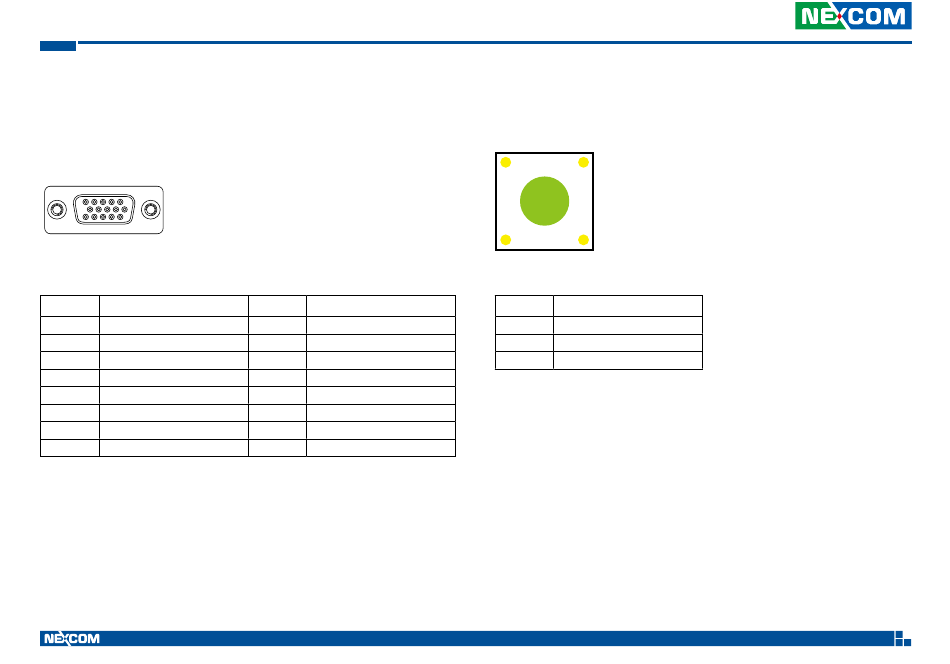

VGA Connector (BOM option HDMI2)
Connector type: DB-15 port, 15-pin D-sub
Connector location: CN7
5
1
5
1
15
11
15
11
Pin
Definition
1
VGA_R
3
VGA_B
5
VGA_GND
7
VGA_GND
9
VGA_+5V
11
NC
13
VGA_HSYNC
15
VGA_SCL
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
VGA_G
4
NC
6
VGA_GND
8
VGA_GND
10
VGA_GND
12
VGA_SDA
14
VGA_VSYNC
Reset Button
Connector location: SW1
Pin
Definition
1
GND
2
RSTBTN-IN#
3
GND
16
VTC 210 Series User Manual
