Chapter 2: Jumpers and Switches

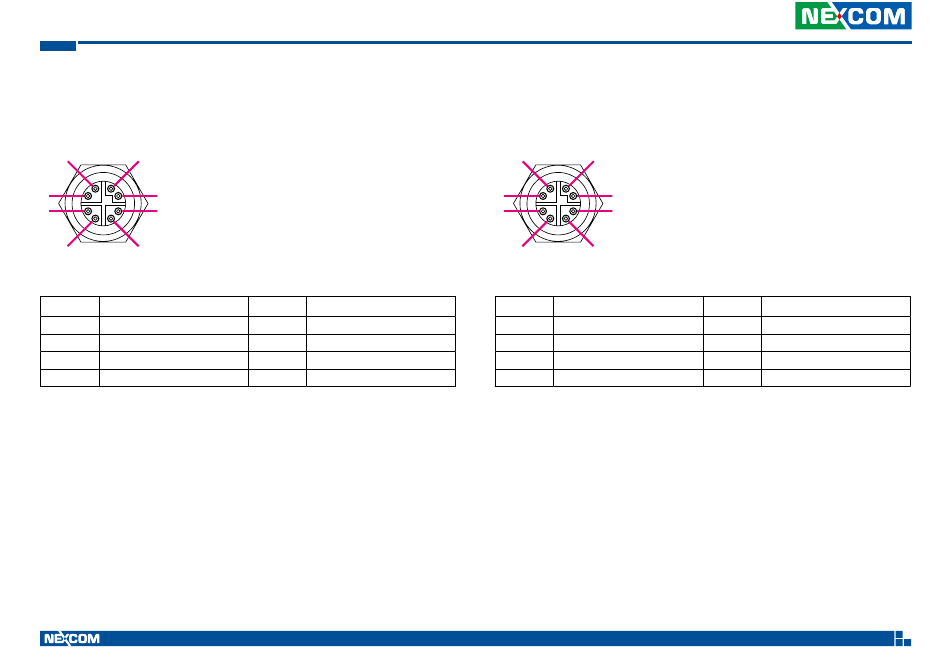

M12 LAN Connector

Connector location: CN4
8 1
7 2
6 3
5 4
Pin Definition
1 LAN-1_MDI0P
3 LAN-1_MDI1P
5 LAN-1_MDI3P
7 LAN-1_MDI2N
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 LAN-1_MDI0N
4 LAN-1_MDI1N
6 LAN-1_MDI3N
8 LAN-1_MDI2P
M12 LAN Connector
Connector location: CN6
8 1
7 2
6 3
5 4
Pin Definition
1 LAN-2_MDI0P
3 LAN-2_MDI1P
5 LAN-2_MDI3P
7 LAN-2_MDI2N
14
Pin Definition
2 LAN-2_MDI0N
4 LAN-2_MDI1N
6 LAN-2_MDI3N
8 LAN-2_MDI2P
