Installation; Verification - ADC HiGain H2TU-C-202 User Manual

152-202-116-02, Issue 2
I
NSTALLATION
Upon receipt of the equipment, visually inspect the contents for signs of damage. If the
equipment has been damaged in transit, immediately report the extent of damage to the
transportation company and to ADC Telecommunications.
When installing an H2TU-C in a chassis, be sure to wear an antistatic wrist strap. Avoid touching
components on the circuit board.
To comply with the intrabuilding wiring requirements of GR-1089 CORE, Section 4.5.9, the
shields of the ABAM-type cables that connect the H2TU-C-202 List 1F DSX-1 output ports to the
cross-connect panel must be grounded at both ends.
1 Align the H2TU-C with the enclosure slot guides and slide the unit in until it touches the backplane card-edge
connector.
2 Place your thumbs on the H2TU-C front-panel and push the H2TU-C into the card guides until properly
seated.
V
ERIFICATION
Once the H2TU-C-202 is installed, verify that it is operating properly. To do this, monitor the four status LEDs.
H2TU-C-202 List 1F
H2TU-C-202
H iG
a in
P a ir P a ir
G a G a
L in in
H 1E
D
A LM H
S
2
L T
LO
2 O P U
*
C
2
LB K 0
2
D S
X
D
S
1
IN
l
B R
G
l
O U
T
R S
-2 3
D C 2
E

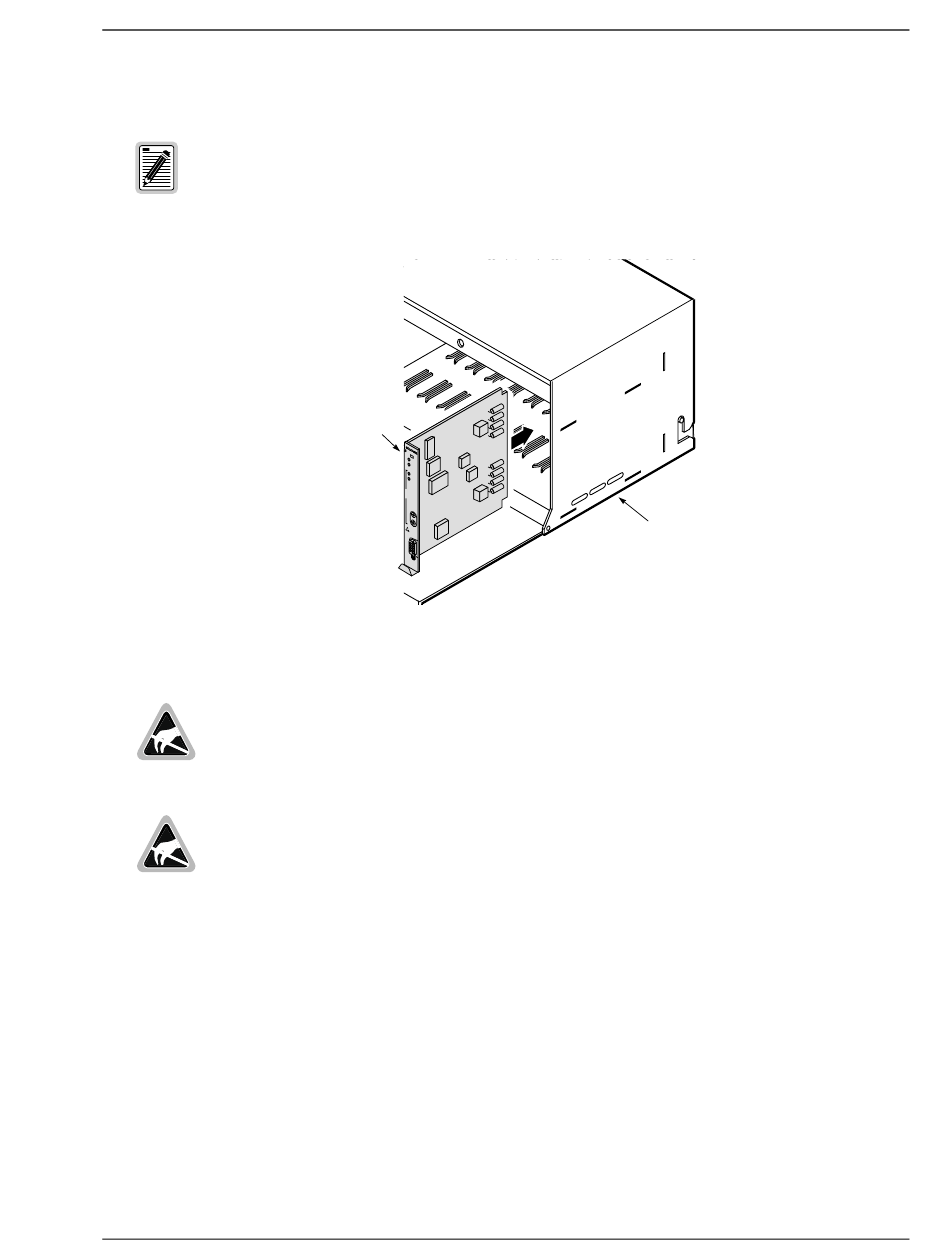

Figure 2. Installing the H2TU-C into a Shelf
March 14, 2000
CO Shelf

Installation

5
