152-202-116-02, Issue 2

System Alarm Output Pins

Pins 22 and 30 on the card-edge connector (see
C P
RAFT ORT
Figure 30 shows the pinout for the craft port connector and its connection to a DB-9 or DB-25 connector on a
maintenance terminal.
H2TU-C-202 List 1F
Figure 29) are the H2TU-C-202 System Alarm output pins.

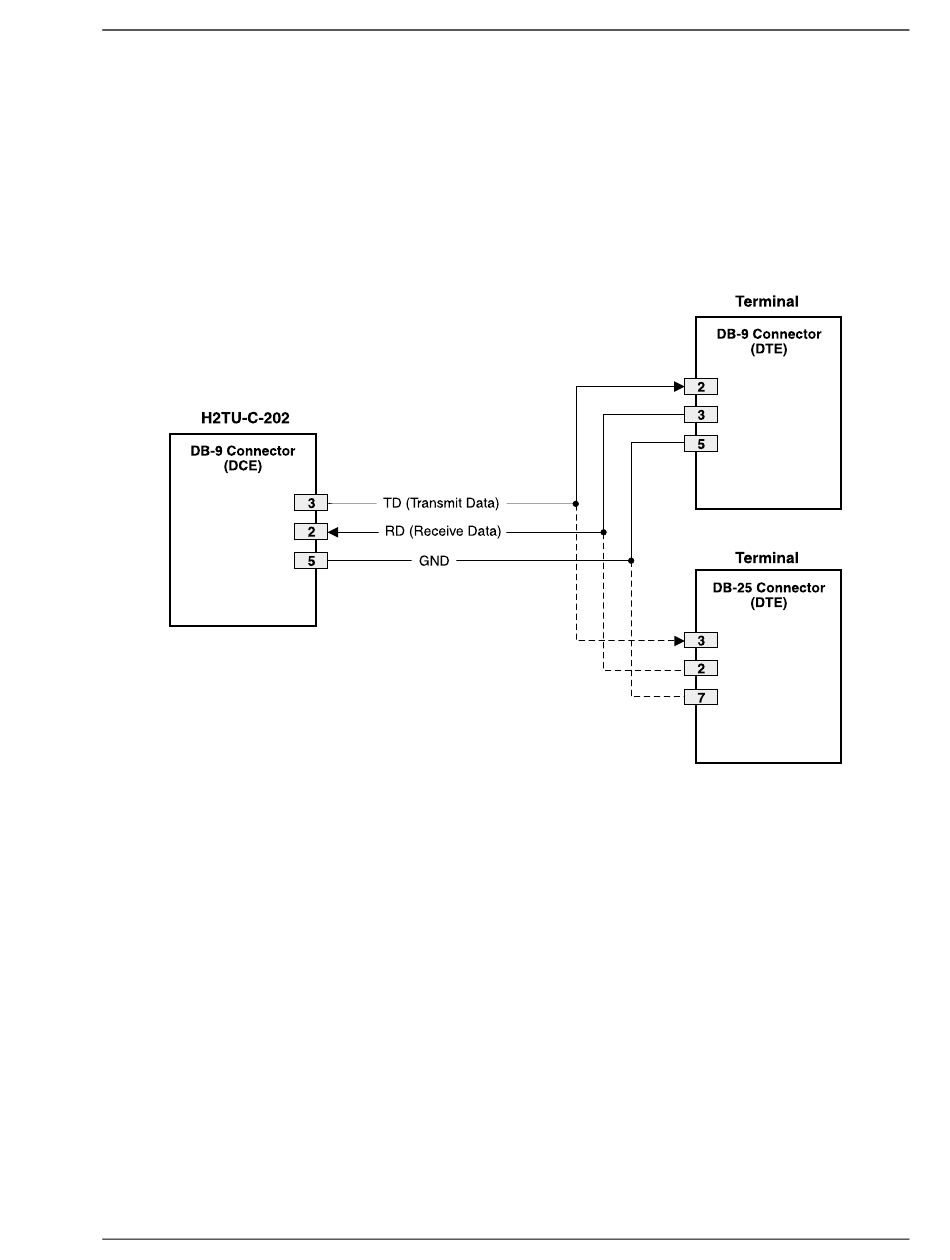

Figure 30. RS-232 Craft Port Pinouts
March 14, 2000
Appendix A - Specifications
53
