152-202-116-02, Issue 2
F
P
RONT
ANEL

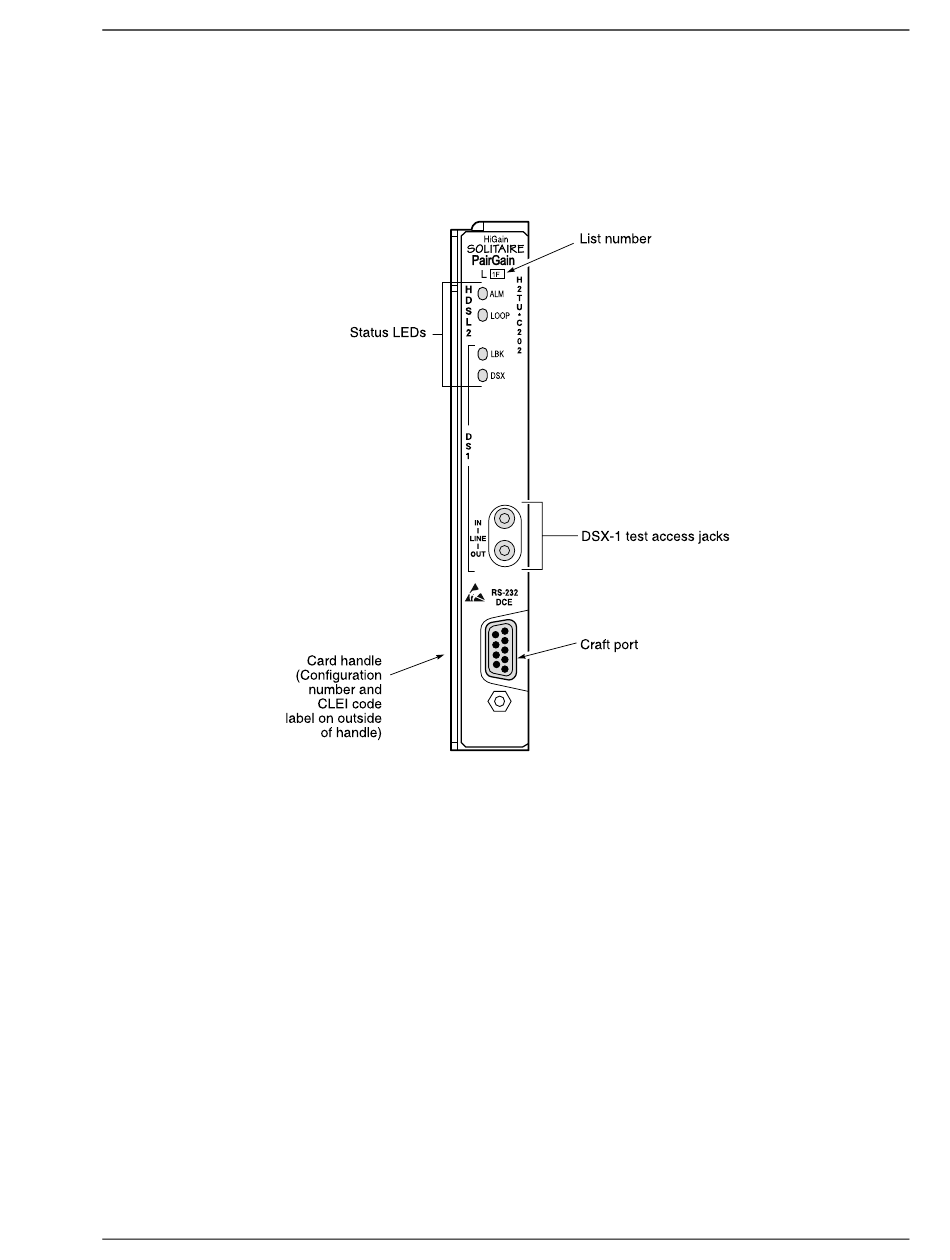

Figure 1
shows the H2TU-C-202 List 1F front panel.
pinout diagrams of the H2TU-C card-edge connector and craft port, refer to
page
51.
H2TU-C-202 List 1F
Table 1 on page 4
Figure 1. H2TU-C-202 List 1F Front Panel
March 14, 2000
describes the front-panel components. For
"Appendix A - Specifications" on
Front Panel
3
