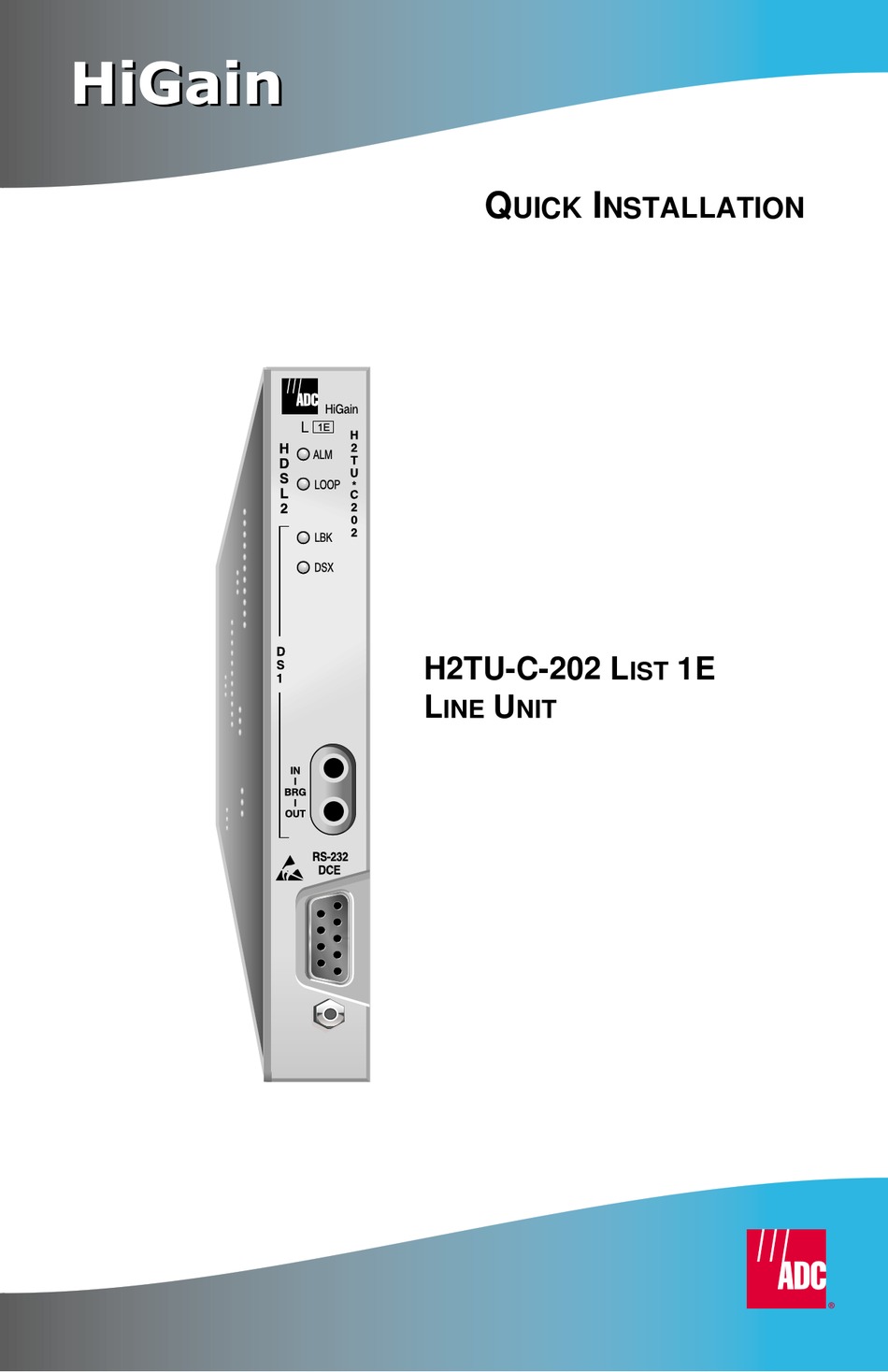

- Page 1 HiGain HiGain UICK NSTALLATION H2TU-C-202 L...
- Page 2 H2TU-C-202 L The HiGain HDSL2 product family is the industry’s first practical implementation of High-bit-rate Digital Subscriber Line 2 (HDSL2). When an H2TU-C-202 List 1E line unit is used in conjunction with a HiGain HDSL2 remote unit (H2TU-R), the system provides 1.552 Mbps transmission on one unconditioned copper pair over the full Carrier Service Area (CSA) range.
- Page 3 NSTALLATION To ensure proper installation of the H2TU-C-202, align the H2TU-C with the enclosure slot guides and slide the unit in until it touches the backplane card-edge connector. Push the H2TU-C into the card-edge connector until seated securely. OWER EQUENCE When the H2TU-C powers up, the four status LEDs illuminate and report status messages.
- Page 5 OOPBACK ESTING Initiate loopback testing from the HiGain maintenance menus. The inband codes shown below can be sent by a test set. H2TU-C H2RU1 H2RU2 H2TU-R CREM CRG1 CRG2 3F04 3F06 3F1E NREM NLOC NRG1 NRG2 CLOC FF1E FF04 3F02 FF02 FF06 SMJK...
- Page 6 For more detailed information about the HiGain HDSL2 screens, provisioning, and loopback testing, refer to the H2TU-C-202 List 1E user manual, catalog number 152-202-115-xx. It can be downloaded from the ADC Web site at www.adc.com.
- Page 7 © 2002 ADC DSL Systems, Inc. All rights reserved. Information contained in this document is company private to ADC DSL Systems, Inc., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of ADC.
- Page 8 H2TU-C-202 List 1E user manual, catalog number Enables (ENA) or disables (DIS) alarm indications on pin H. 152-202-115-xx. It can be downloaded from the ADC Web site at www.adc.com. FRMG DS1 frame formatting = AUTO (auto framing mode) or UNFR (unframed mode).
