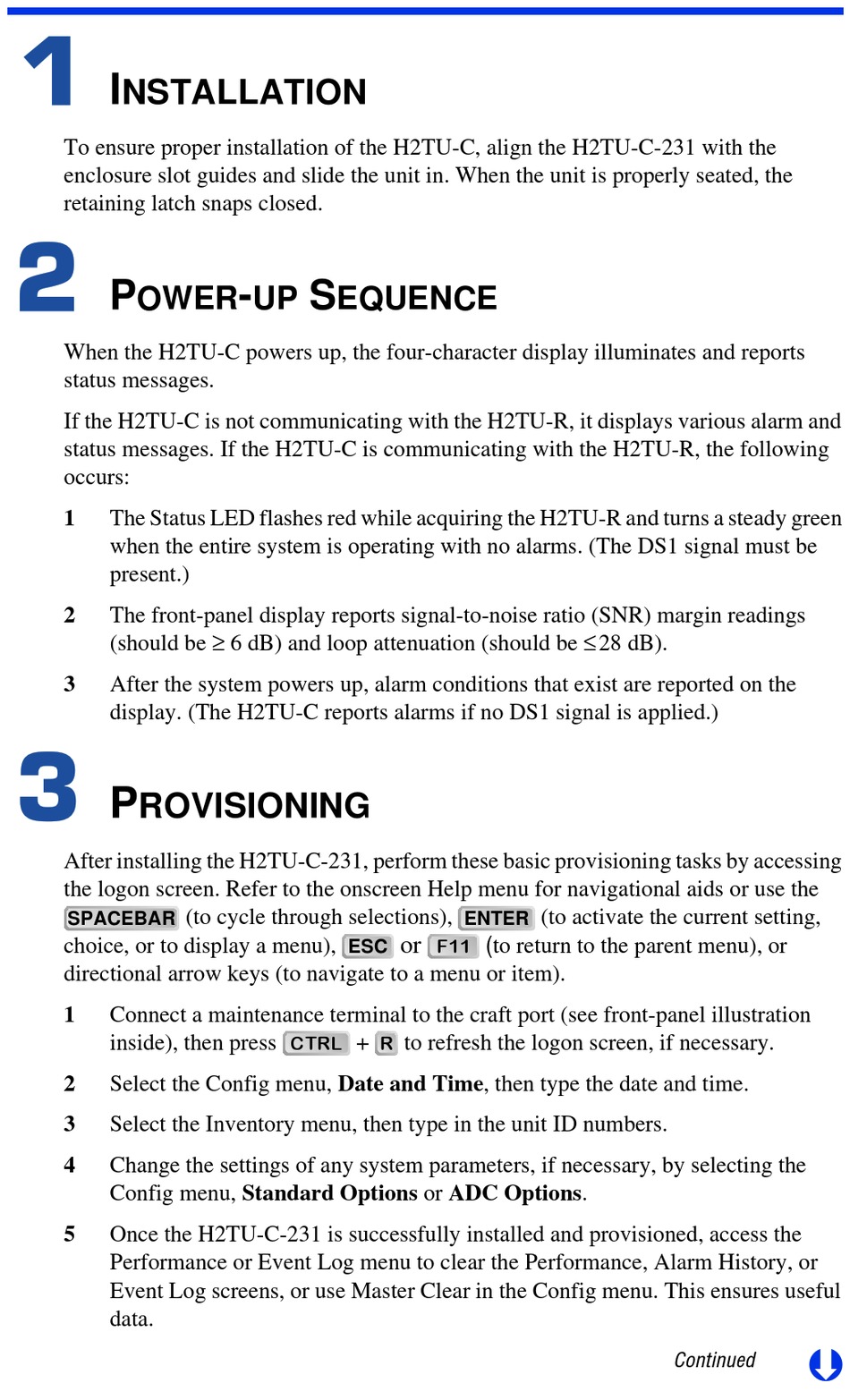

I
NSTALLATION
To ensure proper installation of the H2TU-C, align the H2TU-C-231 with the
enclosure slot guides and slide the unit in. When the unit is properly seated, the
retaining latch snaps closed.
P
OWER
When the H2TU-C powers up, the four-character display illuminates and reports
status messages.
If the H2TU-C is not communicating with the H2TU-R, it displays various alarm and
status messages. If the H2TU-C is communicating with the H2TU-R, the following
occurs:
1 The Status LED flashes red while acquiring the H2TU-R and turns a steady green
when the entire system is operating with no alarms. (The DS1 signal must be
present.)
2 The front-panel display reports signal-to-noise ratio (SNR) margin readings
(should be ≥ 6 dB) and loop attenuation (should be ≤ 28 dB).
3 After the system powers up, alarm conditions that exist are reported on the
display. (The H2TU-C reports alarms if no DS1 signal is applied.)
P
ROVISIONING
After installing the H2TU-C-231, perform these basic provisioning tasks by accessing
the logon screen. Refer to the onscreen Help menu for navigational aids or use the
(to cycle through selections),
SPACEBAR
choice, or to display a menu),
directional arrow keys (to navigate to a menu or item).
1 Connect a maintenance terminal to the craft port (see front-panel illustration
inside), then press
2 Select the Config menu, Date and Time, then type the date and time.
3 Select the Inventory menu, then type in the unit ID numbers.
4 Change the settings of any system parameters, if necessary, by selecting the
Config menu, Standard Options or ADC Options.
5 Once the H2TU-C-231 is successfully installed and provisioned, access the
Performance or Event Log menu to clear the Performance, Alarm History, or
Event Log screens, or use Master Clear in the Config menu. This ensures useful
data.
- S
UP EQUENCE
ESC
CTRL R
+
(to activate the current setting,
ENTER
or F11 (to return to the parent menu), or
to refresh the logon screen, if necessary.
Þ
Continued
