ADC H2TU-C-202 User Manual

List 3f higain line unit
Hide thumbs Also See for H2TU-C-202:
Table of Contents

Advertisement

Quick Links

Download this manual
U
M
SER
ANUAL

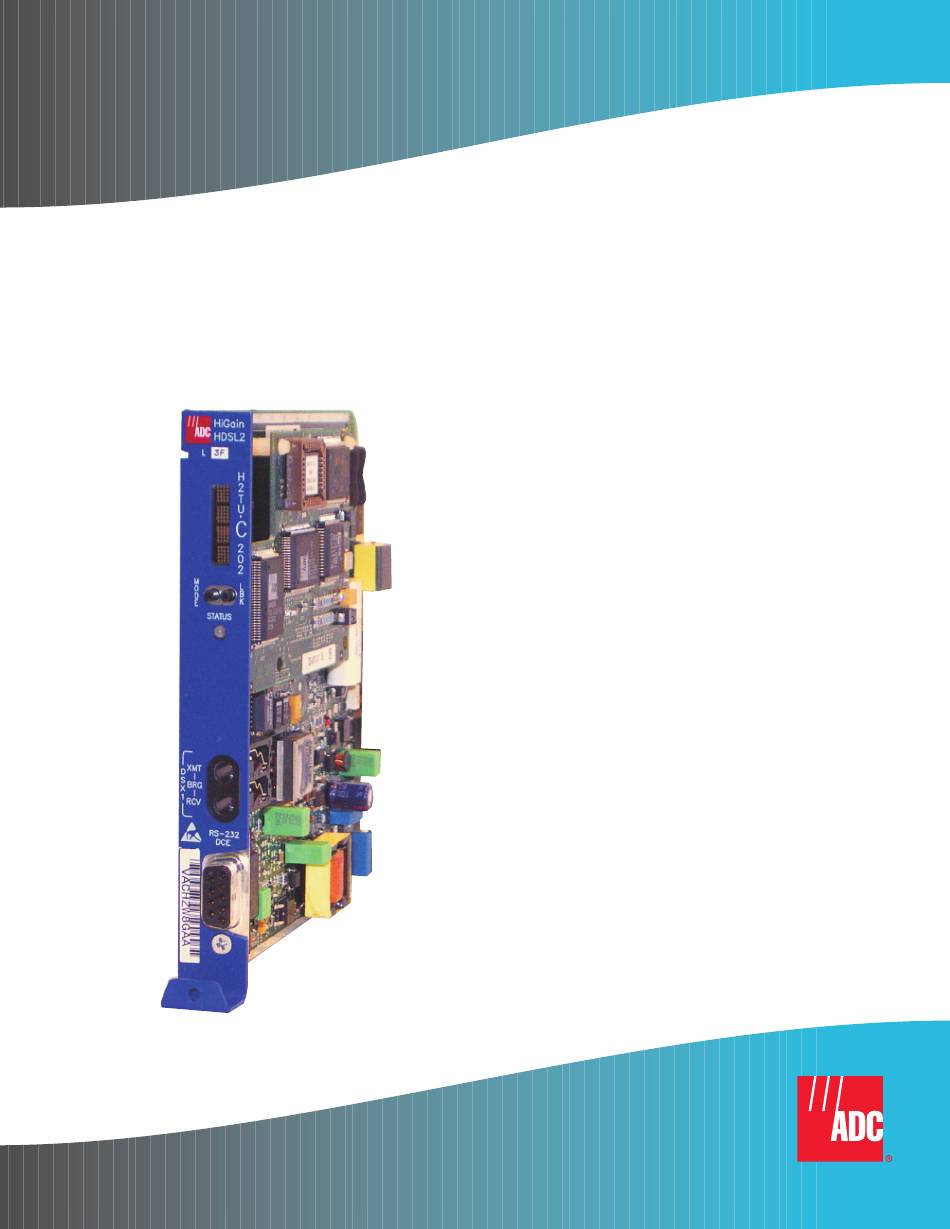

H2TU-C-202 List 3F HiGain Line Unit
Product Catalog: H2TU-C-202-L3F
CLEI: VACKCBDA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2TU-C-202 and is the answer not in the manual?

Questions and answers

Related Manuals for ADC H2TU-C-202

Summary of Contents for ADC H2TU-C-202

  • Page 1 ANUAL H2TU-C-202 List 3F HiGain Line Unit Product Catalog: H2TU-C-202-L3F CLEI: VACKCBDA...
  • Page 2 Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.
  • Page 3 Unpack each container and inspect the contents for signs of damage. If the equipment has been damaged in transit, immediately report the extent of damage to the transportation company and to ADC DSL Systems, Inc. Order replacement equipment, if necessary.
  • Page 4 Inspecting Shipment LTPH-UM-1161-01 June 28, 2002 H2TU-C-202 List 3F...

  • Page 5: Table Of Contents

    Alarm History at the HDSL2 Interface................40 Using the System Event Log to Track Events .................41 Event Log Messages ......................42 Origin Tags ........................43 Using the Sectionalized Event Log to Isolate Trouble ..............44 Using the Report Menu ........................46 H2TU-C-202 List 3F June 28, 2002...
  • Page 6 Power Consumption ........................62 Maximum Power Dissipation ......................62 Maximum Current Drain ......................... 62 Loop Attenuation..........................63 H2TU-C-202 List 3F Card-Edge Connector ................... 63 Fuse Alarm ........................64 System Alarm Output Pin ....................64 Craft Port ............................65 Timing ............................. 66 Ground Fault Detect ........................
  • Page 7 5. Inventory Screen ............................13 6. Config Menu ..............................14 7. Config Menu - Standard Options (defaults shown) ..................15 8. Config Menu - ADC Options (defaults shown) ....................15 9. Config Menu - Set to Factory Defaults......................24 10. Config Menu - Master Clear .........................25 11.
  • Page 8 4. Logon Screen Menus........................... 11 5. H2TU-C-202 List 3F Standard Config Menu Options................. 16 6. H2TU-C-202 List 3F ADC Config Menu Options ..................17 7. DS1/DSX-1 24-Hour PM Threshold ......................20 8. Response to H2TU-R DS1 Frame Conversion Options ................21 9.

  • Page 9: Overview

    Overview VERVIEW The H2TU-C-202 List 3F (H2TU-C) line unit is the Central Office (CO) side of a T1 transmission system. The HiGain HDSL2 product family is fully compliant with the HDSL2 standard ANSI T1.418. The H2TU-C, when used with an H2TU-R remote unit, transmits a 1.544 Mbps payload on one unconditioned copper pair over the full Carrier Service Area (CSA) range.

  • Page 10: Applications

    DDS, and other transmission schemes. • Can be used with customers requiring DS1 service on a temporary or permanent basis. • Provide a means of quickly deploying service in advance of fiber-optic transmission systems. June 28, 2002 H2TU-C-202 List 3F...

  • Page 11: Front Panel

    Figure 1 shows the H2TU-C-202 List 3F front panel. Table 2 on page 5 describes the front-panel components. For pinout diagrams of the H2TU-C-202 List 3F card-edge connector and craft port, refer to “Appendix A - Specifications” on page List number...
  • Page 12 DSX-1 interface. Allows the two DS1 payloads to be monitored. DB-9 craft port (RS-232) Provides bidirectional communication between the unit and an external terminal to allow configuration and performance monitoring through the maintenance terminal screens. June 28, 2002 H2TU-C-202 List 3F...

  • Page 13: Front-Panel Display Messages

    H2TU-C central office unit. Transmission Unit Remote End Accompanies the DBER, HBER, MAL, and LA alarm and indicates that the alarm has occurred at the H2TU-R remote unit. Continued H2TU-C-202 List 3F June 28, 2002...
  • Page 14 (a) System information messages are displayed in Scroll Mode. To scroll through the messages, press the MODE pushbutton for 3 or more seconds. After system information messages scroll, the front panel displays the line card options (see Table 5 on page 16 Table 6 on page 17). June 28, 2002 H2TU-C-202 List 3F...

  • Page 15: Installation

    H2TU-C-202 CO Shelf Figure 2. Installing the H2TU-C-202 List 3F into a Shelf Upon receipt of the equipment, inspect the contents for signs of damage. If the equipment has been damaged in transit, immediately report the extent of damage to the transportation company and to ADC.

  • Page 16: Verification Without An H2Tu-R Remote Unit

    If the remote unit is not detected, the H2TU-C reports four-character status messages. The H2TU-C attempts communication again and reports four-character status messages. The H2TU-C repeats this cycle until a remote unit is detected. June 28, 2002 H2TU-C-202 List 3F...

  • Page 17: Provisioning

    Configure the maintenance terminal for the following communication settings: • 9600 baud • No parity • 8 data bits • 1 stop bit • Hardware flow control set to OFF If necessary, press CTRL to refresh the HDSL2 logon screen. H2TU-C-202 List 3F June 28, 2002...

  • Page 18: Logon Screen

    (a) Legacy management units require use of control keys instead of arrow keys. Menu bar Monitor Performance Event Log Config Inventory Report Rlogon Help +------------------------------------------+ ADC DSL Systems, Inc. HiGain HDSL2 Voice: 800.638.0031 714.730.2400 +------------------------------------------+ .ID: xxxx--xxxx--xxxx—-xxxx 04/10/2002 22:46:19 H2TU-C System: OKarm...
  • Page 19 Figure 23 on page Config Provides standard configuration options, ADC options, date and time setting, and a reset option (factory settings). Also provides a master clear option that clears all performance, alarm, and event log entries. Selecting the Config menu after a remote...

  • Page 20: Provisioning Tasks

    Date and Time, then press ENTER ↑ ↓ ENTER Type the date in the format indicated, then press ENTER Type the time in the format indicated (entering seconds is optional), then press June 28, 2002 H2TU-C-202 List 3F...

  • Page 21: Setting Circuit Id Numbers

    Press to select the Inventory screen. ENTER Type the Circuit ID number, then press Type the ID numbers of all other devices listed in the system, pressing ENTER after each entry. H2TU-C-202 List 3F June 28, 2002...

  • Page 22: Configuring The System

    “Resetting to Factory Defaults” on page 24). Most of the H2TU-C-202 List 3F configuration options can also be set from a network test center through TL1 commands embedded in the FDL ESF framed payload (non-intrusive) or in the payload itself with 11-bit commands (intrusive).
  • Page 23 | H2TU-R DS1 Frame Conversion (CONV) : ACON +-------------------------------------------------+ Use <Spacebar> to cycle through option settings and <Enter> to activate .ID: xxxx--xxxx--xxxx—-xxxx 04/10/2002 23:49:36 H2TU-C System: OKarm Figure 8. Config Menu - ADC Options (defaults shown) H2TU-C-202 List 3F June 28, 2002...

  • Page 24: H2Tu-C-202 List 3F Standard Config Menu Options

    Provisioning LTPH-UM-1161-01 Table 5. H2TU-C-202 List 3F Standard Config Menu Options Front-Panel Standard Config Display Selection Description Menu Options Code Loopback Timeout LBTO NONE Disables automatic time-out cancellation of all loopbacks. 20 min Sets automatic cancellation of all loopbacks to 20 minutes after initiation.

  • Page 25: H2Tu-C-202 List 3F Adc Config Menu Options

    LTPH-UM-1161-01 Provisioning Table 5. H2TU-C-202 List 3F Standard Config Menu Options (Continued) Front-Panel Standard Config Display Selection Description Menu Options Code Network Loopback NLBP Enables the H2TU-R to transmit an AIS toward CI for any network loopback. For Pattern priority resolution, see Figure 30 on page Enables the H2TU-R to transmit an LOS toward CI for any network loopback.
  • Page 26 Provisioning LTPH-UM-1161-01 Table 6. H2TU-C-202 List 3F ADC Config Menu Options (Continued) Front-Panel ADC Config Display Selection Description Menu Options Code Special Loopback SPLB GNLB Configures the HDSL2 system to respond to the generic inband loopback codes. Mode A1LB and...
  • Page 27 LTPH-UM-1161-01 Provisioning Table 6. H2TU-C-202 List 3F ADC Config Menu Options (Continued) Front-Panel ADC Config Display Selection Description Menu Options Code H2TU-R DS1 Frame CONV Framing functionally determined by the framing option. Frame format Conversion conversion is inhibited at the H2TU-R.
  • Page 28 CPE with an AIS alarm pattern while forcing the ESF to the network. Continuity is maintained as for ACON. Table 9 on page 21 Table 10 on page 22 list the ESF and SF frame formats, respectively. June 28, 2002 H2TU-C-202 List 3F...

  • Page 29: Extended Superframe Format

    Table 9. Extended SuperFrame Format Frame Bits ESF Number Framing Pattern Frame Bit for Data Link Cyclical Redundancy Sequence (FPS) - 2 kbps (FDL) - 4 kbps Check (CRC) Bits - 2 kbps (a) m = messages H2TU-C-202 List 3F June 28, 2002...
  • Page 30 DS1 signal and is 01111100 11111111 (right to left). This results in a repetitive pattern of 6176 bits. If the first bit is numbered bit 0, bits 3088, 3474, and 5790 are logical zeroes and all other bits in the pattern are logical ones. June 28, 2002 H2TU-C-202 List 3F...
  • Page 31 Since the RAI to RAI-CI conversion modifies the payload, an RACI option is available to inhibit the RAI to RAI-CI conversion for those applications that cannot tolerate payload modifications. H2TU-C-202 List 3F June 28, 2002...

  • Page 32: Resetting To Factory Defaults

    To reset the H2TU-C to its original factory defaults: Press to select the Config menu. Use the arrow keys to select Set Factory Defaults, then press ENTER ↑ ↓ Press to reset the H2TU-C or press to cancel this action. June 28, 2002 H2TU-C-202 List 3F...

  • Page 33: Clearing The History, Alarm, And Event Log Screens

    To clear ALL history, alarm, and event log screens by this method: Press to select the Config screen. Use the ↑ ↓ arrow keys to select Master Clear. Press to activate. ENTER Press to clear all screens. H2TU-C-202 List 3F June 28, 2002...

  • Page 34: Monitoring System Activity And Performance

    Performance statistics (current, 25-hour, 48-hour, and 31-day) – Sectionalized events for all four legs of DS1 transmission – Blockage Indicator (a quality-of-service summary statistic for the NET-TX and CPE-TX transmission legs at the DS1 interface) June 28, 2002 H2TU-C-202 List 3F...

  • Page 35: Payload Retrieval Of Margin And Pulse Attenuation Parameters

    The error burst response always reflects the most recent performance parameters. If the HDSL2 loop is down, LOSW, a response corresponding to a margin of 5 or less, will be sent. This command is a permanent feature of the List 3F and cannot be disabled. H2TU-C-202 List 3F June 28, 2002...

  • Page 36: Using The Monitor Screen To View System Activity

    Help menu glossary. Abnormal situations are highlighted on the diagram. Table 12 on page 29 describes the screen fields. To initiate a loopback, press the SPACEBAR to cycle through the loopback choices. Press ENTER to make your choice. June 28, 2002 H2TU-C-202 List 3F...
  • Page 37 The presence or absence of an alarm condition is indicated on the lower right corner of all screens. System: OK indicates that there are no alarms present; System: Alarm indicates the presence of an alarm. Refer to “” on page H2TU-C-202 List 3F June 28, 2002...

  • Page 38: Using The Performance Screens To View Performance Data

    Figure 16 on page 32 Figure 17 on page 33 show statistics for the DS1 interface at the remote unit and line unit, respectively. These screens report 1-day, 1-hour, and 15-minute statistics. June 28, 2002 H2TU-C-202 List 3F...
  • Page 39 Press: (N)ext Page, (P)revious Page, C(l)ear History ----------------------------------------------------------------------------- Use <Space> to cycle through.. Interface H2TU-C DS1 choices and <Enter> to view….. Statistics : 48-Hour History .ID: 04/10/2002 23:01:03 H2TU-C System: Alarm Figure 14. H2TU-C DS1 48-Hour Performance History H2TU-C-202 List 3F June 28, 2002...
  • Page 40 83241 Press: C(l)ear Current Statistics ----------------------------------------------------------------------------- Use <Space> to cycle through. Interface H2TU-R DS1 choices and <Enter> to view.. Statistics : Current .ID: 04/10/2002 23:13:41 H2TU-C System: Alarm Figure 16. H2TU-R DS1 Current Statistics June 28, 2002 H2TU-C-202 List 3F...

  • Page 41: H2Tu-C Ds1 Current Statistics

    (e) Severely Errored Frame—Two or more frame bit errors occurring in a 0.75 ms interval for SF or a 3 ms interval for ESF. (f) Appears on the H2TU-R Blockage Indicator (BI) History screen. (g) FE is a frame bit error. H2TU-C-202 List 3F June 28, 2002...

  • Page 42: Blockage Indicator Statistics At The H2Tu-R Ds1 Interface

    Press: C(l)ear History ------------------------------------------------------------------------------ Use <Space> to cycle through Interface : H2TU-R DS1 Choices and <Enter> to view Statistics : BI History ID: xxxx--xxxx--xxxx--xxxx 04/10/2002 01:35:13 H2TU-R System: Figure 18. H2TU-R Blockage Indicator History Screen June 28, 2002 H2TU-C-202 List 3F...

  • Page 43: Performance History At The Hdsl2 Interface

    Press: (N)ext Page, (P)revious Page, C(l)ear History ----------------------------------------------------------------------------- Use <Space> to cycle through. Interface H2TU-C HDSL2 choices and <Enter> to view.. Statistics : 48-Hour History .ID: 04/10/2002 23:20:27 H2TU-C System: Alarm Figure 20. H2TU-C HDSL2 48-Hour Performance History H2TU-C-202 List 3F June 28, 2002...

  • Page 44: H2Tu-C Hdsl2 25-Hour Performance History

    INSL(dB) Press: C(l)ear Current Statistics ----------------------------------------------------------------------------- Use <Space> to cycle through. Interface H2TU-C HDSL2 choices and <Enter> to view.. Statistics : Current .ID: 04/10/2002 23:26:07 H2TU-C System: Alarm Figure 22. H2TU-C HDSL2 Current Statistics June 28, 2002 H2TU-C-202 List 3F...

  • Page 45: Using The Performance Screens To View Alarm Data

    The Alarm History screen reports on a continuous basis the DS1 statistics for the H2TU-C (Figure 23 on page and the H2TU-R (Figure 24 on page 38). The types of alarms reported are described in Table 14 on page Current alarms are shown in reverse video. H2TU-C-202 List 3F June 28, 2002...

  • Page 46: H2Tu-C Ds1 Alarm History Screen

    Press: C(l)ear Alarm History ----------------------------------------------------------------------------- Use <Space> to cycle through. Interface H2TU-R DS1 choices and <Enter> to view.. Statistics : Alarm History .ID: 04/10/2002 23:12:03 H2TU-C System: Alarm Figure 24. H2TU-R DS1 Alarm History Screen June 28, 2002 H2TU-C-202 List 3F...
  • Page 47 (b) AIS-CI is a modified AIS alarm pattern. Equipment not suited to detect AIS-CI still detects this signal as an AIS. AIS-CI is sent toward the network indicating that an LOS (RLOS) or AIS (RAIS) has been received from the CPE. H2TU-C-202 List 3F June 28, 2002...

  • Page 48: Alarm History At The Hdsl2 Interface

    PWR FEED SHRT A short between the Tip and Ring of the HDSL2 pair is present. PWR FEED GND The HDSL2 loop is grounded. OPEN PWR FEED OPEN A line power open condition is present. June 28, 2002 H2TU-C-202 List 3F...

  • Page 49: Using The System Event Log To Track Events

    04/10/02 00:00:03 DS1 LOS Alarm: Begin Line Unit 04/10/02 00:00:01 DS1 AIS Alarm: End Press: (N)ext Page, (P)revious Page, (T)op of Log, C(l)ear Log 04/10/2002 23:28:55 H2TU-C System: Alarm Figure 26. System Event Log H2TU-C-202 List 3F June 28, 2002...

  • Page 50: Event Log Messages

    NTWK PRM-FE BER alarm (at the remote only: 1-day threshold crossed of PRM-FE: trouble on NTWK far end) NTWK DS1 AIS begins/ends Power Feed Open begins/ends Power Feed Short begins/ends RAI begins/ends TX RAI-CI begins/ends (RAI-CI sent from the remote towards the network) June 28, 2002 H2TU-C-202 List 3F...

  • Page 51: Origin Tags

    Remote Unit Indicates that the alarm occurred at the remote unit. Line Unit Indicates that the alarm occurred at the line unit. LOSW, SHORT, GND, and OPEN are always tagged as line unit alarms. H2TU-C-202 List 3F June 28, 2002...

  • Page 52: Using The Sectionalized Event Log To Isolate Trouble

    04/10/2002 01:35:52 H2TU-R System: Alarm Figure 27. Sectionalized Event Log Screen On signals without Far End or Near End PRM present, event data in the CPE-RX and NET-RX circuit legs is limited to trouble alarms. June 28, 2002 H2TU-C-202 List 3F...

  • Page 53: Sectionalized Analysis Of The Ds1 Interface

    Inferred ES. PRM received from CPE has any of G1 through G5 set, LV, or FE set. NOT SECT Cannot be sectionalized; no PRM received from the CPE. PRM received from CPE has no errors. (a) An inferred failure or error condition displays in reverse video on the monitor. H2TU-C-202 List 3F June 28, 2002...

  • Page 54: Using The Report Menu

    Report Type : .Full Report Please select report type by pressing <Space>, then start terminal logging and press <Enter> to generate the report. .ID: 04/10/2002 00:00:19 H2TU-C System: OK Figure 29. Report Menu - Full Report June 28, 2002 H2TU-C-202 List 3F...

  • Page 55: Report Types

    • Current performance statistics • Circuit and unit identification System Information Report • Circuit and unit identifications • Product information • System configuration Event Report • Circuit and unit identifications • Product information • System event log H2TU-C-202 List 3F June 28, 2002...

  • Page 56: Testing

    The HDSL2 BER has exceeded the set threshold Select NONE for the HBER limits of 10 or 10 . xxx denotes either TUC or system option. TUR. If TUC and TUR occur at the same time, then TUC displays. Continued June 28, 2002 H2TU-C-202 List 3F...

  • Page 57: Alarm Option For The Digital Loop Carrier Feed

    ALRM message with an ACO message. The second part of the ALRM message, which defines the cause of the alarm, remains. Both parts of the message remain until the alarm condition clears or another higher priority alarm occurs. H2TU-C-202 List 3F June 28, 2002...

  • Page 58: Remote Los And Ais Response

    The OCT55 test pattern can be used in unframed mode to stress the system and verify data integrity. In an SF or ESF framing mode, excessive zero anomalies may occur, which causes the H2TU-C to report ES, SES, and UAS errors according to ANSI T1.231-1997. June 28, 2002 H2TU-C-202 List 3F...

  • Page 59: Loopback Operation

    • Test set TLOS* • Test set H2TU-C H2TU-R Downstream Upstream * When enabled, TLOS is an automatic loopback Network Customer that occurs with an LOS at the remote DS1 input. Premises Figure 31. Loopback Summary H2TU-C-202 List 3F June 28, 2002...

  • Page 60: Generic Loopback Commands

    SmartJack Loopdown or NID payload (PL) code. Removes SMJK, NLOC, NREM, CLOC, and CREM. (PL) 3-in-5 SMJK LpDn 1111-1111- SmartJack Loopdown or NID (ESF-DL) code. Removes 0010-0100 SMJK, NLOC, NREM, CLOC, and CREM. (ESF-DL) June 28, 2002 H2TU-C-202 List 3F...

  • Page 61: Special Loopback Commands

    Unblock the AIS code by executing the Far End Activate code. Since A5LB never blocks the arming code from exiting the H2TU-C, the Far End Activate code is not available in A5LB. A3LB differs from A4LB in that A3LB supports the additional (1-in-6) SMJK loopback command. H2TU-C-202 List 3F June 28, 2002...

  • Page 62: Manual Loopback Session

    Once a loopback is selected and activated, the loopback stays active until it times out (based on the LBTO setting). When a loopback times out, the display then returns to the normal display mode. June 28, 2002 H2TU-C-202 List 3F...

  • Page 63: Loopback Test Procedures

    The Status LED on the front panel should be yellow, and the loopback mode should also be identified on the Monitor screen. Repeat Step 2. If the test passes, the problem is in the downstream direction. If it fails, the problem is in the upstream direction. H2TU-C-202 List 3F June 28, 2002...

  • Page 64: A1Lb, A2Lb, And A5Lb Test Procedures

    DS1 channels to the customer and the local DSX-1 interface. For information regarding the 16-bit DBDB command for retrieving information on the circuit’s margin and pulse attenuation, see “Payload Retrieval of Margin and Pulse Attenuation Parameters” on page June 28, 2002 H2TU-C-202 List 3F...
  • Page 65 If the system is to loopdown but remain Armed, send the IR (Intelligent Repeater) LPDN code for universal loopdown. • If all the equipment is to be looped down, disarmed and returned to normal operation, send the disarm inband code 11100 or the ESF DL code (FF24). H2TU-C-202 List 3F June 28, 2002...
  • Page 66 No option to disable. (f) The IOR Power Down code must remain present for the duration of the power down mode. When this code is removed, the HDSL2 system returns to its normal unlooped and unarmed state. June 28, 2002 H2TU-C-202 List 3F...

  • Page 67: A3Lb And A4Lb Test Procedures

    Testing A3LB and A4LB Test Procedures The H2TU-C-202 List 3F can be looped back by sending the Addressable Office Repeater (AOR) LPBK activation code 1111-1111-0001-1110 (FF1E) for at least 5 seconds. This causes the H2TU-C to enter the NLOC state. The Loopback Time-Out setting determines the duration of this loopback unless it is overridden by the reception of a second identical 16-bit loopup command before the timer expires.

  • Page 68: Testing With The H2Tu-R Signal Generator

    2 pseudo random, 1:8 pattern, 2:8 pattern, 3:24 pattern Test Signal Linecode AMI or B8ZS Test Signal Direction Toward CPE or toward NET & CPE only Test Signal Framing SF, ESF, or UNFR June 28, 2002 H2TU-C-202 List 3F...

  • Page 69: Appendix A - Specifications

    0-655 feet of ABAM cable DSX-1 Input Level +1.5 to -7.5 dB DSX System One-way DS1 Delay <400 µs Wander (Looped) Meets MTIE T1.101 requirements Wideband Jitter (Looped) 0.2 UI maximum Narrowband Jitter (Looped) 0.1 UI maximum H2TU-C-202 List 3F June 28, 2002...

  • Page 70: Power Consumption

    The three most important power parameters of an H2TU-C are its maximum power consumption, maximum power dissipation, and maximum current drain. Table 26 describes line-powered circuits on 9 kft, 26 AWG loops without a regenerator. Table 26. H2TU-C-202 List 3F Power Parameters -48 Vdc Power Heat Dissipation -42.5 Vdc Current...

  • Page 71: Loop Attenuation

    Factory use only Circuit ground ( + ) Ring DSX-1-XMT * Chassis ground may be connected to Earth ground per local practice. ** Active pins are solid black. Figure 34. H2TU-C-202 List 3F Card-Edge Connector H2TU-C-202 List 3F June 28, 2002...

  • Page 72: Fuse Alarm

    • “System Alarms” on page 48 describes the system alarms that activate pins that activate pins 22 and 30. Pins 22 and 30 must never be taken above +5 Vdc or below -60 Vdc. June 28, 2002 H2TU-C-202 List 3F...

  • Page 73: Craft Port

    DB-9 or DB-25 connector on a maintenance terminal. Terminal DB-9 Connector (DTE) H2TU-C DB-9 Connector (DCE) TD (Transmit Data) RD (Receive Data) Terminal DB-25 Connector (DTE) Figure 35. RS-232 Craft Port Pinouts H2TU-C-202 List 3F June 28, 2002...

  • Page 74: Timing

    H2TU-C and a remotely located H2TU-R. Figure 36 shows a block diagram of the H2TU-C-202 List 3F. The H2TU-C receives a 1.544 Mbps DSX-1 data stream from the DSX-1 digital cross-connect interface. The H2TU-C contains a DS1 frame synchronizer controlled by an 8-bit microprocessor that determines the type of framing on the DS1 stream.

  • Page 75: Appendixc - Compatibility

    The HiGain system uses HDSL2 transmission technology as recommended by ANSI committee in compliance with the ANSI T1.418-2000 HDSL2 standards. HiGain HDSL2 complies with GR-63-CORE, TR-TSY-000499, and GR-1089-CORE. The H2TU-C-202 List 3F is compatible with the following 200 mechanics, high-density shelf enclosures: • ADC HiGain indoor enclosures –...

  • Page 76: Appendix D - Product Support

    UPPORT ADC Customer Service Group provides expert pre-sales and post-sales support and training for all its products. Technical support is available 24 hours a day, 7 days a week by contacting the ADC Technical Assistance Center. • Quotation Proposals Sales Assistance •...

  • Page 77: Appendix E - Glossary

    PBON: Power Back Off - Network Far End PRM: Performance Report Messaging FERR: Framing Bit Error PRMF: Performance Report Messaging - Far End FPS: Framing Pattern Sequence PRM-FE: Performance Report Messaging - Far End H2TU-C-202 List 3F June 28, 2002...
  • Page 78 SPLB: Special Loopback SPRM: Supplemental PRM TLOS: Transmit Loss of Signal TRCI: TX RAI-CI Indication - Customer Installation TUC: Transmission Unit Central Office TUR: Transmission Unit Remote End UAS-P: Unavailable Seconds - Path UNFR: Unframed June 28, 2002 H2TU-C-202 List 3F...

  • Page 79: Certification And Warranty

    ADC during the 90-day warranty period is, at ADC’s option, either (a) return of the price paid or (b) repair or replace of the software. ADC also warrants that, for a period of thirty (30) days from the date of purchase, the media on which software is stored will be free from material defects under normal use.
