Wiring Diagram - Directed DS3+ Installation Manual

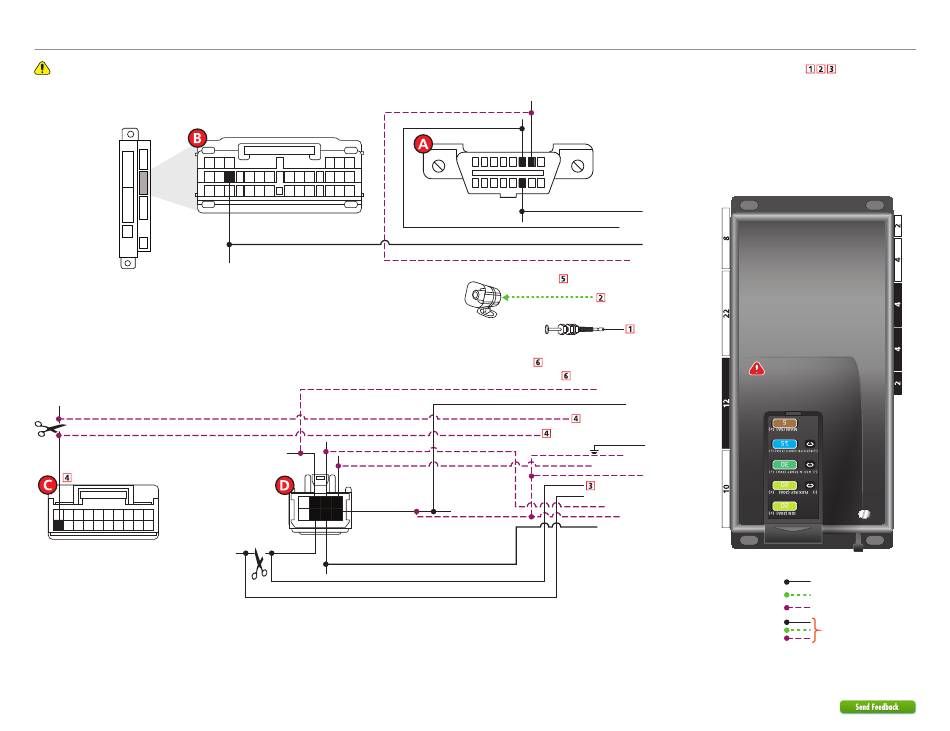

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Body ECU
Connector
(middle conn. left side of steering column)
6
18
30
Cut
Autolight: Green, pin 20
10 9 8 7 6 5 4 3 2 1
20 19 18 17 16 15 14 13 12 11
Headlight Switch
8 933.TL10 2.29.195.3 2017 Toyota Camry (H Key)
©2022 VOXX•DEI LLC. All rights reserved.
Body ECU Connector
5 4 3 2 1
17 16 15 14 13 12 11 10 9 8 7
29 28 27 26 25 24 23 22 21 20 19
RDA: Blue, pin 16
(+) Accessory: White, pin 2
(+) Starter 2
Lt. Green, pin 3
(+) Ignition 2:
Pink, pin 1
4 3 2 1
Ignition
Connector 8 7 6 5
(+) 12V:
Green, pin 5
(+) Starter:
Blue, pin 7
(+) Ignition 1:
Black, pin 6
Cut
HS CAN High: SIL Data: Gray, pin 7
Blue, pin 6 Diagnostic
1 8 Connector OBDII
9 16
HS CAN Low: White, pin 14
(-) Parking Lights Output: Lt.Green/Black: 1
Siren
Hood Pin
TPMS Ignition Interrupt (conn. side): Blue/White: 1
TPMS Ignition Interrupt (veh. side): Blue: 3
(+) Starter 2 Output: White: 5 & 11
Autolight Interr. (veh. side): Lt. Green: 8
Autolight Interr. (conn. side): Lt. Green/White: 9
(+) Ignition 2 Output: Pink/White: 4
Starter Input (conn. side): Green: 6
(+) Starter Output (veh. side): Violet: 7
(+) Ignition Input/Output: Pink: 10
HS CAN Low 1: Tan: 1
HS CAN High 1: Tan/Black: 2
RDA: Orange/Black: 7
SIL Data: Yellow/Black: 8
(+) Siren Output: Brown/Red: 11
(-) Hood Input: Gray: 21
IMPORTANT:
Position the
fuses correctly!
(+) 12V Input: Red: 6 & 12
(-) Ground: Black: 10
(+) 12V Input: Red/Black: 2
(+) 12V Input: Red: 5
(+) Accessory Output: Orange: 8
(+) 12V Input: Red/White: 9
Slide to open
Legend:
).
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
