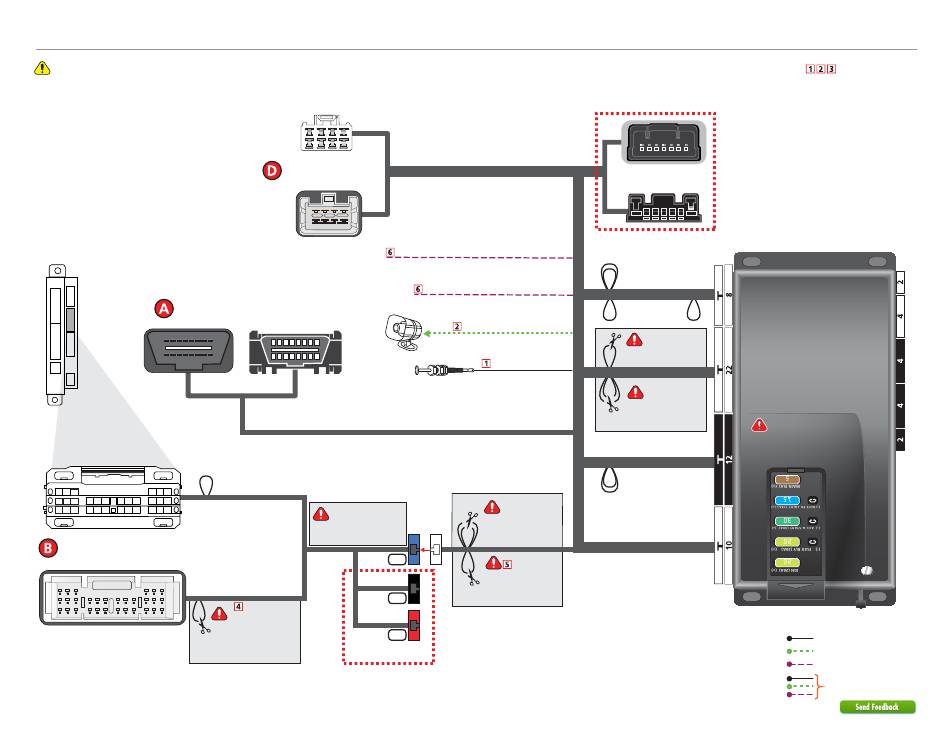

Wiring diagram with T-Harness (THTON9)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Body ECU
Connector
Diagnostic Connector OBDII
Body ECU
(White middle conn. left side
of steering column)
7 933.TL10 2.29.195.3 2017 Toyota Camry (H Key)
©2022 VOXX•DEI LLC. All rights reserved.
Ignition Connector
TPMS Ignition Interrupt (conn. side): Blue/White
Siren
Hood Pin
CONNECT the white
12-pin connector to
the 12-pin Blue
connector labeled B.
B
A
Cut the
Blue/White loop
labeled A/B if
vehicle is
C
equipped with
NOT USED
Autolights .
TPMS Ignition Interrupt (veh. side): Blue
(+) Siren Output: Brown/Red
(-) Hood Input: Gray
Cut the
Orange/Green and
(optional T-Harness)
Orange/Brown loops
labeled CAN2.
Cut the Lt.
Green/Black loop
labeled PKL if
available through
Data.
NOT USED
8-pin White Connector
Cut the
Violet/White loop
labeled Tach.
22-pin White Connector
Cut the
Dk. Green/Black and
Dk. Blue/Black loops
labeled Lock/Unlock.
IMPORTANT:
Position the
fuses correctly!
12-pin Black Connector
THTON9
10-pin White Connector
Slide to open
Legend:
).
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
