Module Programming; (For Security-Only Programming, See Next Section.) - Directed DS3+ Installation Manual

Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
(For security-only programming, see next section.)
Note: The master key is REQUIRED to complete the module programming successfully.
Please ensure that the vehicle is in a safe location, and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.

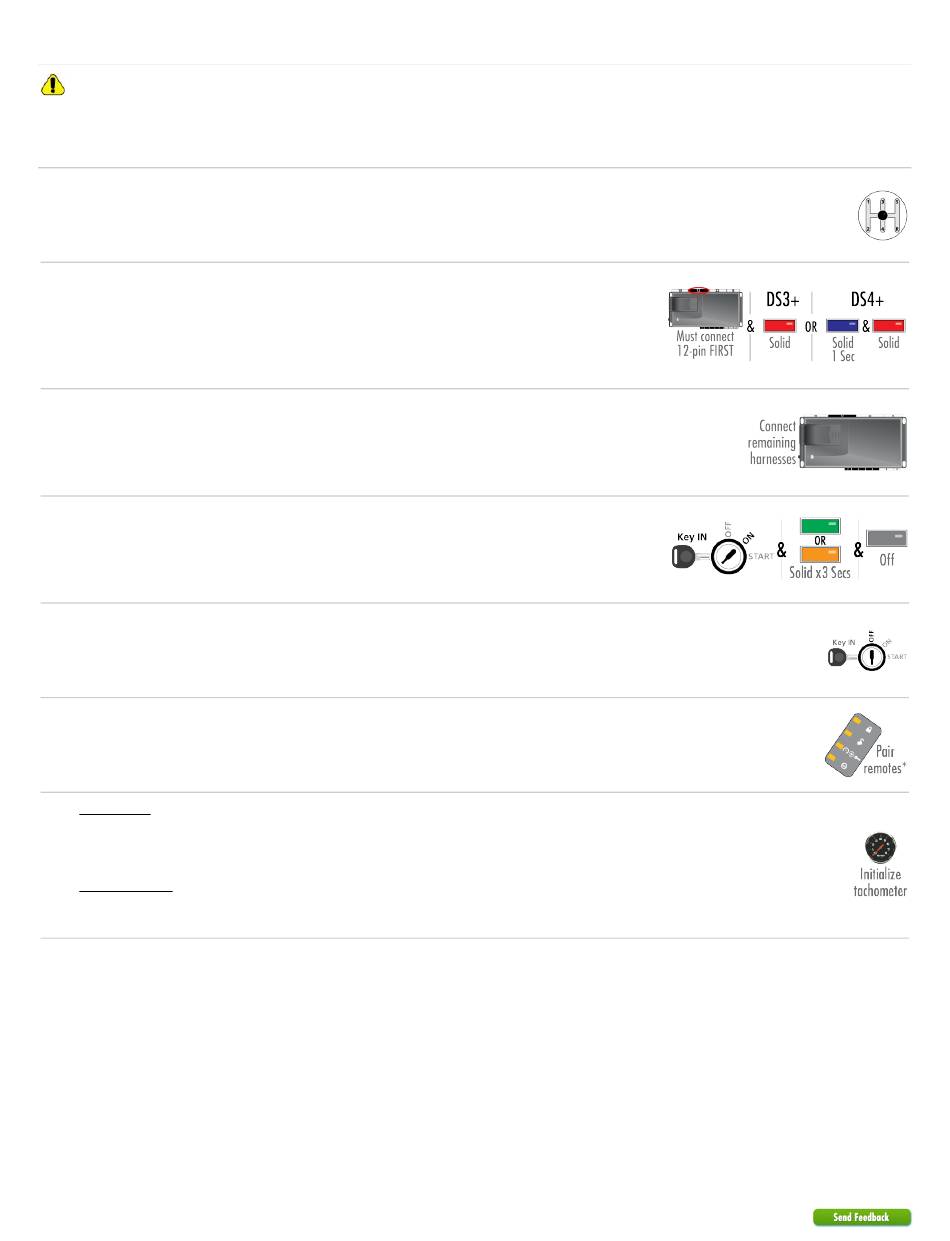

DS3+: Connect the 12-pin main power harness to the DS3+ module FIRST.
Wait until the LED turns ON solid red before proceeding to the next step.
2
DS4+: Connect the 12-pin main power harness to the DS4+ module FIRST.
The LED will turn ON solid Blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red before proceeding to the next step.
Connect the remaining harnesses to the module.
3
Note: To skip the transponder programming and use convenience features only, press the
programming button 5 times. When the LED turns ON solid orange, then proceed to the next
step.
Insert and turn the key to the ON position.
Wait for the LED to turn on solid green for 3 seconds, and turn OFF.
4
Note: If the transponder programming was skipped, the LED turns ON solid orange for 3
seconds, then turns OFF when programming is completed.
5
Turn vehicle ignition OFF once the module is successfully programmed.
Pair remotes (if applicable). For information on how to pair a specific remote, please refer to
6
its corresponding owner documentation, which can be found inside the product packaging of
the complete system or on www.directechs.com.*
DATA Tach: Firmware using DATA Tach, the tachometer is preprogrammed for the vehicle
and no further action is required. For instructions on how to adjust tach or use Virtual tach,
refer to "Initialize Virtual Tach" (not needed with hardwired or data tach applications).
7
Hardwire Tach: Firmware using the Violet/White Hardwire Tach input will require
programming. For instructions on how to program or adjust tach or use Virtual tach, refer to
"Initialize Virtual Tach" (not needed with hardwired or data tach applications).
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
