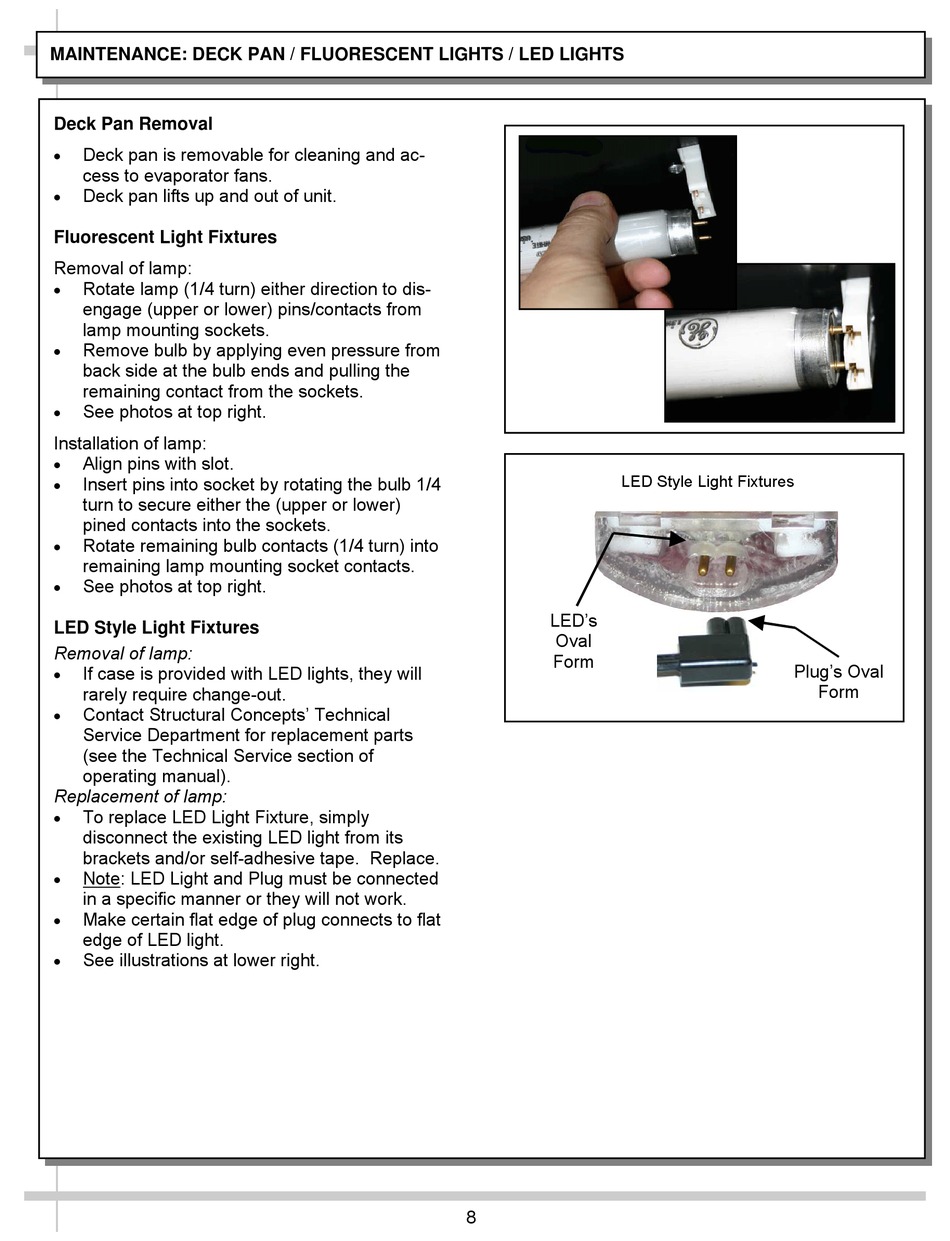

MAINTENANCE: DECK PAN / FLUORESCENT LIGHTS / LED LIGHTS

Deck Pan Removal

Deck pan is removable for cleaning and ac-
cess to evaporator fans.

Deck pan lifts up and out of unit.
Fluorescent Light Fixtures
Removal of lamp:

Rotate lamp (1/4 turn) either direction to dis-
engage (upper or lower) pins/contacts from
lamp mounting sockets.
 Remove bulb by applying even pressure from
back side at the bulb ends and pulling the
remaining contact from the sockets.
 See photos at top right.
Installation of lamp:
 Align pins with slot.
 Insert pins into socket by rotating the bulb 1/4
turn to secure either the (upper or lower)
pined contacts into the sockets.
 Rotate remaining bulb contacts (1/4 turn) into
remaining lamp mounting socket contacts.
 See photos at top right.
LED Style Light Fixtures
Removal of lamp:
 If case is provided with LED lights, they will
rarely require change-out.
 Contact Structural Concepts' Technical
Service Department for replacement parts
(see the Technical Service section of
operating manual).
Replacement of lamp:

To replace LED Light Fixture, simply
disconnect the existing LED light from its
brackets and/or self-adhesive tape. Replace.
 Note: LED Light and Plug must be connected
in a specific manner or they will not work.
 Make certain flat edge of plug connects to flat
edge of LED light.
 See illustrations at lower right.
LED Style Light Fixtures
LED's
Oval
Form
8
Plug's Oval
Form
