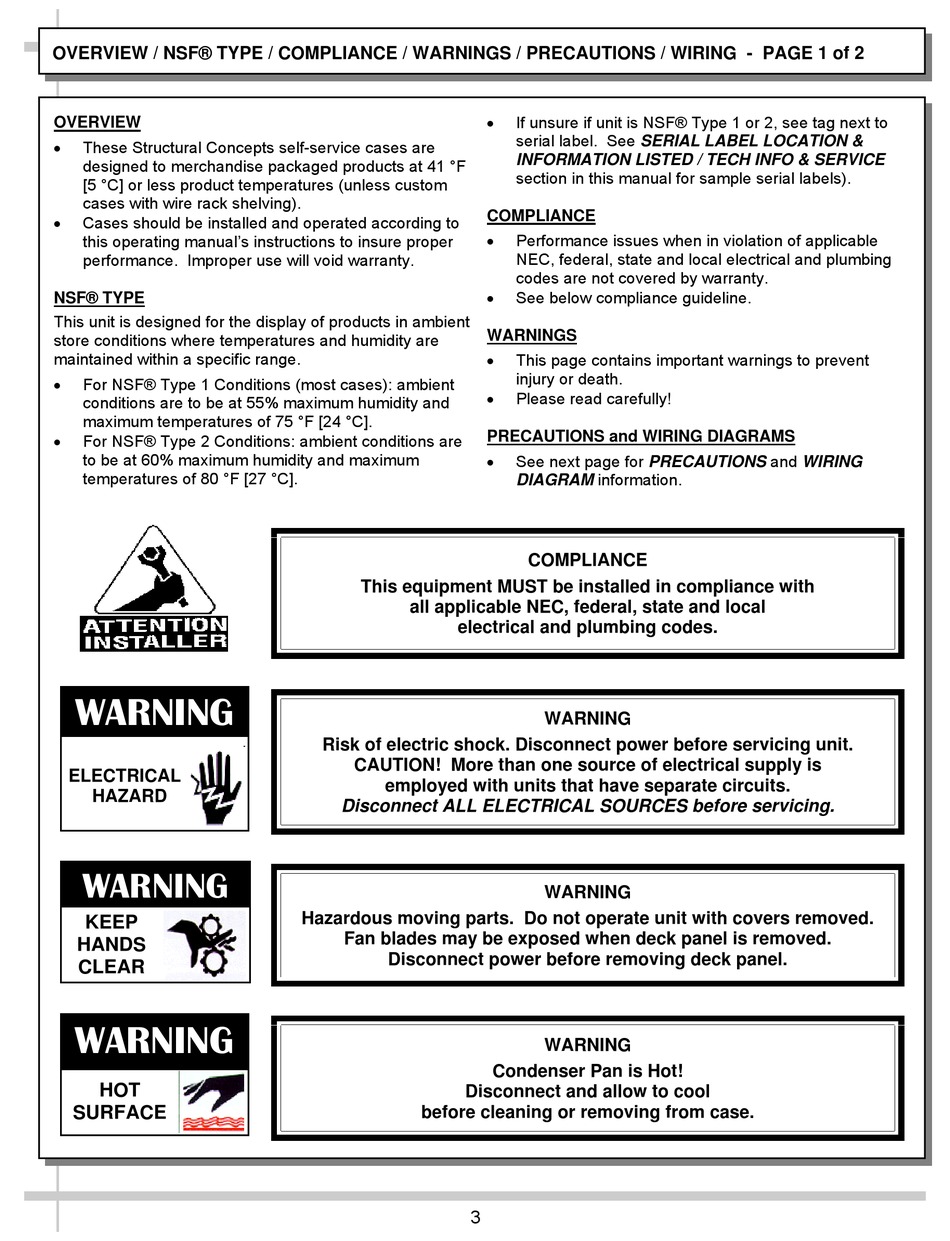

OVERVIEW / NSF® TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING - PAGE 1 of 2
OVERVIEW

These Structural Concepts self-service cases are
designed to merchandise packaged products at 41 °F
[5 °C] or less product temperatures (unless custom
cases with wire rack shelving).

Cases should be installed and operated according to
this operating manual's instructions to insure proper
performance. Improper use will void warranty.
NSF® TYPE
This unit is designed for the display of products in ambient
store conditions where temperatures and humidity are
maintained within a specific range.

For NSF® Type 1 Conditions (most cases): ambient
conditions are to be at 55% maximum humidity and
maximum temperatures of 75 °F [24 °C].

For NSF® Type 2 Conditions: ambient conditions are
to be at 60% maximum humidity and maximum
temperatures of 80 °F [27 °C].
WARNING
ELECTRICAL
HAZARD
WARNING
KEEP
HANDS
CLEAR
WARNING
HOT
SURFACE
This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
Hazardous moving parts. Do not operate unit with covers removed.
Fan blades may be exposed when deck panel is removed.
Disconnect power before removing deck panel.
Disconnect and allow to cool
before cleaning or removing from case.
3

If unsure if unit is NSF® Type 1 or 2, see tag next to
serial label. See SERIAL LABEL LOCATION &
INFORMATION LISTED / TECH INFO & SERVICE
section in this manual for sample serial labels).
COMPLIANCE

Performance issues when in violation of applicable
NEC, federal, state and local electrical and plumbing
codes are not covered by warranty.

See below compliance guideline.
WARNINGS

This page contains important warnings to prevent
injury or death.

Please read carefully!
PRECAUTIONS and WIRING DIAGRAMS

See next page for PRECAUTIONS and WIRING
DIAGRAM information.
COMPLIANCE
WARNING
WARNING
WARNING
Condenser Pan is Hot!
