V6.0_2021-05-25
4.2
Removal and installation of Dryer Rack (two-parts)
4.2.1
Removal

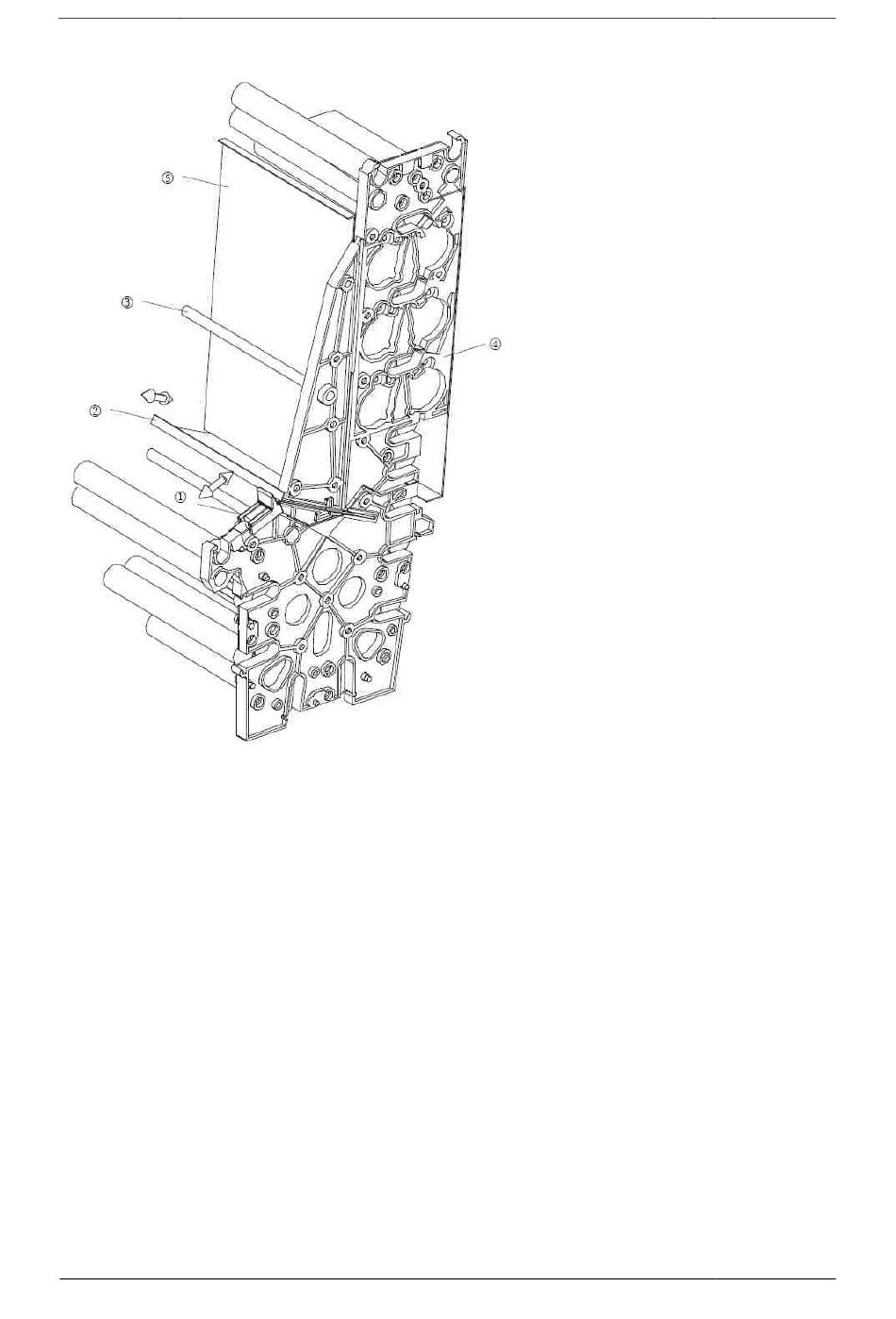

1
Push small, black slide (1) downwards.
2
Pull dryer plate small (2) out of the dryer.
3
The upper part of the dryer can now be removed. Hold the dryer at the front distance bar (3)
and the whole of the metal plate in the back (4).
Take out lower part of the dryer.
4
4.2.2
Installation
1
Insert lower dryer part. Make sure that both slides at the lower part are assembled and pushed
down.
2
Put in the upper dryer part. Insert the lower edge of the upper part carefully into the middle
guidance of the lower part.
3
Check if side plates and gears of upper and lower part fit together correctly.
4
The dryer plate small (2) can now be assembled into the guidance. For this lift dryer plate large
(5) a bit, so that the small plate can be pushed in, completely.
5
Now push both black slides (1) up until the clips click into place.
PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany
COMPACT 2 Instructions for use
5190-0-0002
23 of 35
