COMPACT 2
COMPACT 2 Mammo

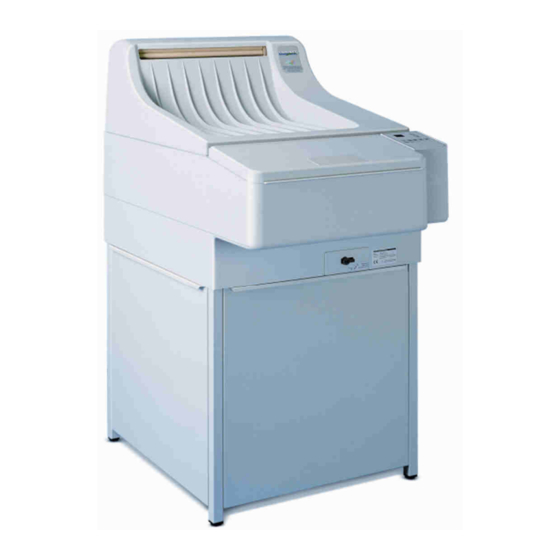

Automated X-ray film processor
Model/ID: 119x-x-x000
Basic UDI-DI: 426050264A003UE
Instructions for use
Ident. no. 5190-0-0002
Version: 6.0
PROTEC GmbH & Co. KG
Issued: 2021-05-25
In den Dorfwiesen 14, 71720 Oberstenfeld, Germany
Subject to alterations
Telefon: +49 (0) 7062/92 55-0 E-Mail: protec@protec-med.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Protec COMPACT 2
Summary of Contents for Protec COMPACT 2
- Page 1 Automated X-ray film processor Model/ID: 119x-x-x000 Basic UDI-DI: 426050264A003UE Instructions for use Ident. no. 5190-0-0002 Version: 6.0 PROTEC GmbH & Co. KG Issued: 2021-05-25 In den Dorfwiesen 14, 71720 Oberstenfeld, Germany Subject to alterations Telefon: +49 (0) 7062/92 55-0 E-Mail: protec@protec-med.com...
- Page 2 All sheets of this document contain proprietary and confidential information of PROTEC GmbH & Co. KG and is intended for exclusive use by current PROTEC GmbH & Co. KG customers. Copying, disclosure to other or other use is prohibited without the express written authorization of PROTEC´s law department.
-
Page 3: Table Of Contents
Setting working parameters ..........................18 4.1.10 Processing time .................................. 18 4.1.11 Developer temperature ..............................19 4.1.12 Dryer temperature ................................19 4.1.13 Replenishment time ................................ 19 PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 3 of 35... - Page 4 Description of Symbols, Labels and Abbreviations ............. 32 Symbols ....................................... 32 Type Label ......................................33 Labels ........................................33 Positioning of the Symbols and Labels ..........................35 PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 4 of 35...
- Page 5 V6.0_2021-05-25 COMPACT 2 Instructions for use 5190-0-0002 Abbreviations ....................................35 PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 5 of 35...
-
Page 6: Revision Status
11A at 60Hz change to 13A change power consumption to max. change power consumption 18/06/2019 change to 2.8 V5.1 transferred to new layout 2021-05-25 (MDR) PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 6 of 35... -
Page 7: General Notes
Co. KG. Assembly personnel and other persons who are not employees of the Technical Service Department of PROTEC GmbH & Co. KG are requested to contact the local branch office of PROTEC GmbH & Co. KG before starting any assembly or service work. - Page 8 COMPACT 2 Instructions for use 5190-0-0002 NOTE The use of the product with attachments or accessories not authorized by PROTEC or other non-approved components is not permitted. NOTE According to Regulation (EU) 2017/745 on medical devices, all serious incidents that...
-
Page 9: Device Description
The automated X-ray film processor is intended for operation in a darkroom or in premises specially darkened for this purpose. For detailed information, please refer to the installation instructions of the automated X-ray film processor. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 9 of 35... -
Page 10: Performance Characteristics
Degenerative, inflammatory, traumatic and tumorous diseases and changes of the musculoskeletal system. • Deformities and defective positions of the skeletal system. • Thoracic and pulmonary symptomatology (thorax exposures). • Sclerosis. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 10 of 35... -
Page 11: Indications And Contraindications
In den Dorfwiesen 14, 71720 Oberstenfeld Telephone: +49 (0) 7062 – 92 55 0 Fax: +49 (0) 7062 – 92 55 60 E-Mail: protec@protec-med.com Internet: www.protec-med.com PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 11 of 35... -
Page 12: Safety Instructions
Settings and calibrations not described in these operating instructions must be carried out based on the technical description of the device by PROTEC customer service or a service authorized by it. NOTE All instructions supplied with the automated X-ray film processor must be observed and any safety instructions contained therein must be carefully read and adhered to. -
Page 13: General Safety Instructions
To avoid the risk of electric shock, this device may only be connected to a supply network with a protective earthing conductor. 2.1.2 Device Operation In case of a malfunction, do not use the X-ray film processor anymore and notify PROTEC service department or a service company authorized by them. 2.1.2.1 Operating Type This device is intended for continuous operation. -
Page 14: Operating Personnel
Equipment affected by electromagnetic interference is not known. The automated X-ray film processor is intended for use in an environment in professional healthcare facilities (e.g., clinics, surgery centers, physiology practices ...). PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 14 of 35... -
Page 15: Control Elements And Displays
Fixer replenishment time in seconds NOTE Safety function stops film transportation when cover is removed. Therefore, keep cover placed on the machine when processing films. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 15 of 35... -
Page 16: Handling
Hot air may escape when opening the lid of the film inlet! Surface film feed tray (sheet) can be hot! Operation of the automated X-ray film processor PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 16 of 35... -
Page 17: Before Starting
Each working-parameter can be called up on the display by pressing the respective mode-button, however, during processing, parameters cannot be PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 17 of 35... -
Page 18: Anti-Crystallization Function
Depending on the requirements, this time can be varied from 1 to 5 minutes adjusted in 0.1-minute-steps (adjusting the processing time: see 4.1.9 “Working parameters”). PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 18 of 35... -
Page 19: Developer Temperature
The replenishment quantity can be adjusted varying for developer and fixer by adjusting the replenishment time. The replenishment time may be set in a range of 0-60 s. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 19 of 35... -
Page 20: Dimmer Function Of Display
The chemicals containers need to be filled manually with at least 1.0 litres of fresh chemicals, to ensure the pumps will not run dry! Switch processor off PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 20 of 35... -
Page 21: Manual Cancellation Of The Auto Fill Function
Use buttons 2 and 3 “Select” to select the parameter memory (P1 to P5) from which the parameters shall be recalled. Press button 4 “Recall” to recall parameters (copy into working memory) and to leave the memory mode. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 21 of 35... -
Page 22: Leave Memory Mode Without Change
If the developer temperature exceeds the set value, the automatic cooling function will be activated. The fan runs for a fast cooling of the bath. The same happens when the temperature is decreased by pressing the arrow button. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 22 of 35... -
Page 23: Removal And Installation Of Dryer Rack (Two-Parts)
(5) a bit, so that the small plate can be pushed in, completely. Now push both black slides (1) up until the clips click into place. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 23 of 35... -
Page 24: Function Of The Automated X-Ray Film Processor
Switching the automated X-ray film processor on and off The automated X-ray film processor is switched on or off via the device switch. Underneath the control panel. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 24 of 35... -
Page 25: Safety And Maintenance
Check the level in the regeneration tanks and refill solutions if necessary After operation: • After finishing work, the water must be drained from the machine. This reduces the growth of algae in the water bath. PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 25 of 35... -
Page 26: Weekly Cleaning
Depending on the film throughput, the machine must be thoroughly cleaned every 3 to 6 months by PROTEC customer service or a service authorized by PROTEC. Appropriate tank cleaners are available for the developer and water tanks; the fixer tank is cleaned with water only. When using chemical tank cleaners, follow the manufacturer's instructions. -
Page 27: Not In Operation For 2 Weeks Or Longer
Maintenance and Safety Inspection. In the event that the scheduled maintenance is not carried out, PROTEC GmbH & Co. KG accepts no liability whatsoever for damage to the user and third parties if and to the extent that damage results from inadequate or non-performed maintenance. -
Page 28: Product Service Life
The X-ray film processor is designed for a service life of 7 years when used as specified and regularly maintained by PROTEC Customer Service or a service agent authorized by PROTEC. After reaching the product lifetime, further use is at your own risk. -
Page 29: Power Supply
To avoid the risk of electric shock, this device must only be connected to a supply network with a protective earth conductor. Protection Class IP 20 Power Consumption Standby 0,23 kWh Maximum in development mode at 230V/50Hz 2,8 kWh PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 29 of 35... -
Page 30: Technical Data
Empty 77 kg/*91kg (170/*200 lbs) Filled 115 kg/*129 kg (254/*284 lbs) Dimensions (LxWxH) 97 x 68 x 127cm (38.2x26.8x50”) Floor space required 0.67 m² (7.2 sqft) PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 30 of 35... -
Page 31: Dimensions
Environmental Conditions for Shipping and Storage Surrounding temperature - 10°C to +70°C Relative humidity 10% to 95% (non-condensing) Air pressure 500 hPa to 1060 hPa PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 31 of 35... -
Page 32: Description Of Symbols, Labels And Abbreviations
This is provided in an electronic format (eIFU) on our website. www.protec-med.com/download Disposal instructions; WEEE , Waste of Electrical and Electronic Equipment Earth ground Electrical voltage warning Hot surface warning PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 32 of 35... -
Page 33: Type Label
Decrease set value Processing time Developer temperature Dryer capacity in % Developer replenishment time Fixer replenishment time Replenishment Overflow Drain Type Label Labels Company label PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 33 of 35... - Page 34 Description of the fuse 2x T / sb 10A 250V Label water pressure Label on the floor plate Water outlet Water outlet open or closed PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 34 of 35...
-
Page 35: Positioning Of The Symbols And Labels
Type Label pressure Abbreviations Millimetre Centimetre Pound Kilogram °C Degree Celsius Hectopascal German Industry Standard European Standard CE marking Hertz Duty Cycle Ampere Serial number PROTEC GmbH & Co. KG, In den Dorfwiesen 14, 71720 Oberstenfeld, Germany 35 of 35...
