Summary of Contents for Protec UCARE

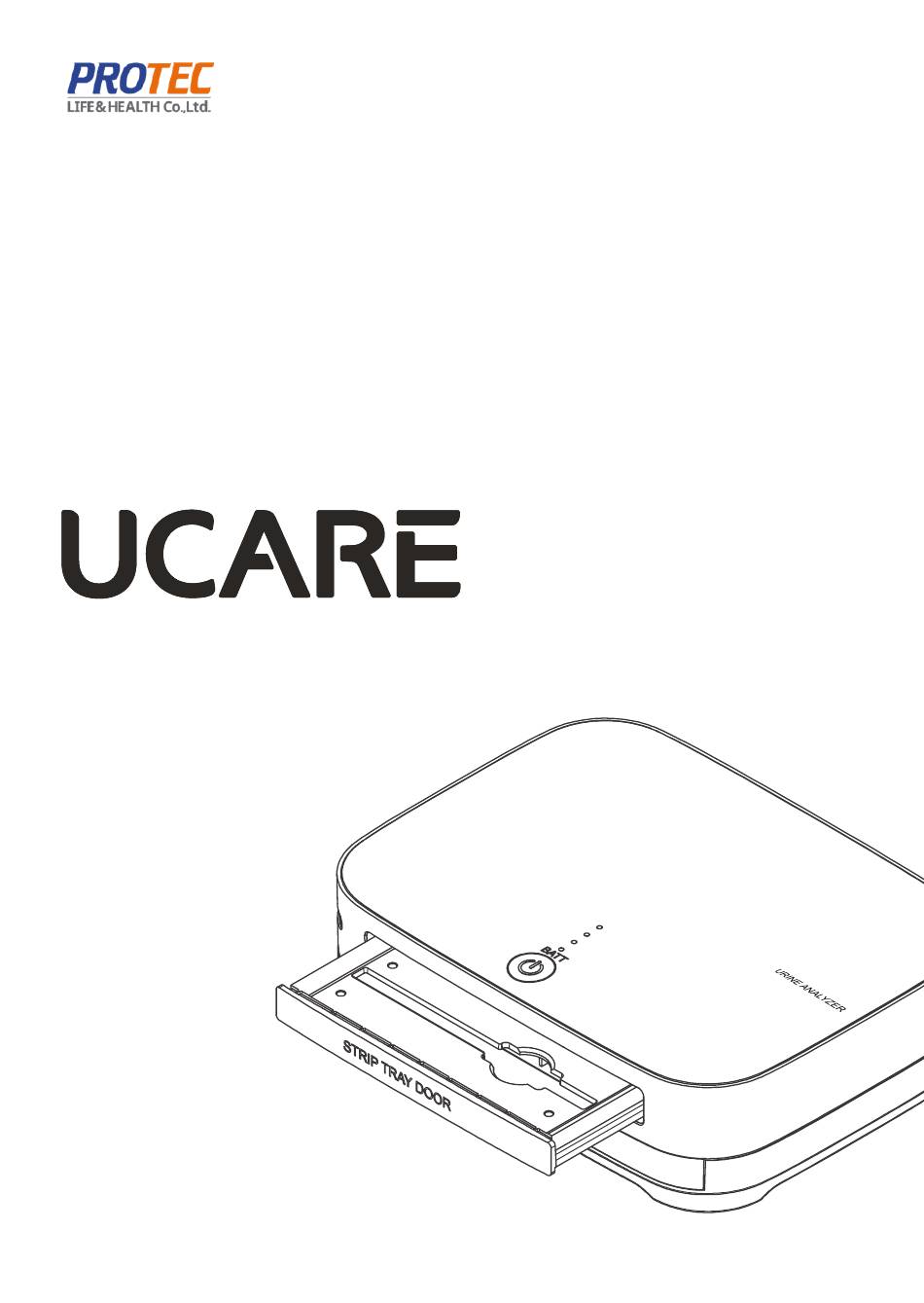

- Page 1 Rev.2.1.1 / 2018-03-27 / en USER'S MANUAL You can download our User's manual at health-protec.com and ucarelife.com Log-in is needed...
-
Page 2: Safety Information
˙ FOR INDOOR USE ONLY ˙ FOR SELF-TEST IN-VITRO DIAGNOSTIC USE ONLY ˙ This device is only used for predicting disease. Please visit a specialized med- ical institution for accurate test and treatment. ˙ Any application and service provided by the product may to be changed or discontinued without notice according to the company's regulation. - Page 3 Charge UCARE using a Touching the device with wet smartphone charger(Micro 5-pin). hands may cause electric shock. CAUTION CAUTION Stop using the overheated device DO NOT spray water directly and contact the customer service on the device or wet it.
- Page 4 DO NOT push the stick tray Turning power off during or subject the device to strong information transmission may impacts. cause malfunction. CAUTION CAUTION Caution of finger when the tray is DO NOT shake the device or being inserted. subject it to strong impacts. CAUTION CAUTION Insert of contaminated or reused...
- Page 5 DO NOT expose the front of the DO NOT turn it upside down. stick tray to strong light during It may cause malfunction. operation. CAUTION CAUTION Keep out of reach of children Be careful not to eat or swallow or infants. urine sticks.
- Page 6 Remove the charging plug during Contact the customer service center, strong storms to protect against WARNING when you suspect a malfunction. lightning strikes. ※ Do not attempt to disassemble, alter or repair the product at user’s option. ※ Company is not responsible for any problems caused by a manner not specified by the manufacturer.
-
Page 7: Table Of Contents
Table of Contents Before Use Safety Information Package Parts Specifications Operation Basic Operation Turning On Turning Off Opening/Closing the Stick tray Charging How to Use the App App Overview Installing the App Registering Family Account Registering User Checking Up Collecting Urine Samples Connecting Inserting Testing... -
Page 8: Package
Package UCARE Device Pouch Micro 5-PIN cable ※ The package should contain the components listed above. Check to see if everything has been included. If anything is missing or damaged, contact your distributor. Purchased seperately Urine Stick Stick Holder ※ Urine sticks and stick holders need to be purchased seperately. -
Page 9: Parts
Parts Battery status Power/Action button Speaker Stick tray Waste tray Waste tray knob Charging port Mood lamp display Battery Status Shows battery life. Power/Action button To turn on/off the power, to open/close the stick tray. Speaker Informs the motions and errors of the device. Stick tray Place the urine-wetted stick here. -
Page 10: Specifications
Specifications Product Automated Urinalysis System UCARE Series(Model) UAPG-S001 Purpose of use Urine analyzer Power supply (Rated voltage) (Adapter must be purchased separately) Input power rating: 100V-240V 0.5 A 50~60Hz Class Ⅱ Adapter (approved electrical safety use only) (Recommend) Output power rating: 5V above 1.0 A... -
Page 11: Turning On
Operation Turning On Press the button for 3-5 seconds. The mood lamp blinks and the announcement will sound. When the battery status lights up, the device is turned on. Turning Off Press the button for 3-5 seconds while the device is switched on. The announcement will sound and the power is turned off. -
Page 12: Charging
Charging Connect the smartphone charger into the charging port on the back of the device. The battery status blinks while charging. Refer below for the charging status according to battery condition. Battery Status Blue - The battery is 80-100% left Green - The battery is 60-80% left Yellow - The battery is 30-60% left Red - The battery is 10-30% left... -
Page 13: Installing The App
- Input your family doctor information to call, text or email with the result of your test. Installing the App Please download and install the app on your smartphone to use UCARE. Search for "UCARE" on Google Play or App Store. Download the App. -
Page 14: Registering Family Account
Registering Family Account Press the “Log in or Sign up”. Enter a family ID and password and press “Sign up”. Enter your family ID and password to “Log in” if you already signed up. set. ※ After the first log in, the family ID and password can be automatically ※... -
Page 15: Registering User
Registering User Enter with your family account and press “Start”. Press “Registration". Enter the user information. Register a photo.( album, camera) Press “Confirm” to complete the registration. Choose the user and press "Test". -
Page 16: Checking Up
Checking Up Collecting Urine Samples Wet your urine evenly on the urine stick pad. Wet all 12 pads thoroughly with urine. Wipe off excess urine on an absorbent paper. Lightly touch the long edges of one side of the stick on the absorbent paper. Insert the urine stick into the stick holder correctly. -
Page 17: Connecting
Activate Bluetooth on your smartphone. Press “Device Connection” on the side bar( ). Choose the UCARE device you want to connect from the list. - If more than one device appear, the device on top of the list is the closest. - Page 18 Correct Front and back sides are switched ※ The stick tray will close automatically after 1 minute. ※ Please check if the stick holder is bent. Bent holder may effect reliability. Recommended not to use bent holders. ※ DO NOT pull out the stick tray by hand. It may cause malfunction of the device.
-
Page 19: Testing
Testing Press “Start” on the app to start testing. Test will take about 30 seconds. (Differs by phone) Once testing is complete, the results will automatically show on the app. Press the result to see detailed results. ※ The actual color of the result value may appear different depending on the user’s screen. - Page 20 Mood lamp shows the health condition After completing the test, the result is displayed by the mood lamp with 3 colors, based on the test result. <Normal> Maintain your health. You are doing well. Blue <Caution> Pay attention to your health. Yellow <Danger>...
-
Page 21: Troubleshooting
Troubleshooting Device does not power on. ˙ Push the button for 3 seconds. ˙ If device does not power on, connect the recommended charger cable. ˙ Check that the device is charging by the flashing LED light. ˙ If charging takes place, charge fully until the LED is yellow. ˙... -
Page 22: Handling The Product
Care & Maintenance Handling the Product Urine stick and stick holder ˙ Urine sticks and stick holders are disposable. ˙ Urine sticks should only be used before the expiration date specified on the box. ˙ Throw away used urine stick immediately after finishing the test. - DO NOT hold used urine stick by hand. -
Page 23: For Transport
For Transport DO NOT throw it away. Keep away from sunlight Use no hook No open flames Fragile Direct Temperature 5~40℃ This way up Recyclable current Alternating Keep away from rain Biological RISKS Double insulation current Do not stand here Cleaning Device Wipe with a dry or a wet cloth using neutral detergent. -
Page 24: For Disposal
For Disposal ˙ Product or battery must not be disposed as unsorted municipal waste. ˙ Do not dispose device near fire, hazardous or flammable waste. ˙ Dispose urine stick, stick holder and waste tray as biohazardous waste. ˙ Dispose according to local requirements when disposing of the product. ˙... -
Page 25: Free Service Or Repair At A Cost
Free Service or Repair at a Cost Free service is provided only if the product is defective within 12 months after purchase. (Warranty period of battery is 6 months.) Compensation History Types of Consumer Damage Within After warranty period warranty period Replacement Within 10 days of purchase or refund... - Page 26 Address THIS WARRANTY CERTIFICATE IS VALID FOR SERVICE IN THE COUNTRY OF PURCHASE. ˙ PROTEC LIFE & HEALTH Co., Ltd. warrants the following product in accordance with the consumer dispute resolution standards by item. ˙ If the product malfunction occurs, please contact customer service center.
-
Page 27: Index
Index Action button 9 Normal 20 Adapter 10 App overview 12 Operation 5,7,11,21 Battery 10 Battery status 9,12 Package 8 Better life 13 Parts 9 Pouch 8 Power button 9 Caution 20 Power consumption 10 Charging 12 Power supply 10 Charging port 9 Charging system 10 Checking up 16... - Page 28 Manufacturer PROTEC LIFE & HEALTH Co., Ltd. 55, Saneop-ro 155beon-gil, Gwonseon-gu, Suwon-si, Gyeonggi-do, Korea health-protec.com / ucarelife.com...
