PRS 500 X
Basic diagnostic X-ray system
Model/ID: 7066-9-8050L
User Manual
Ident. Nr. 5066-0-8002

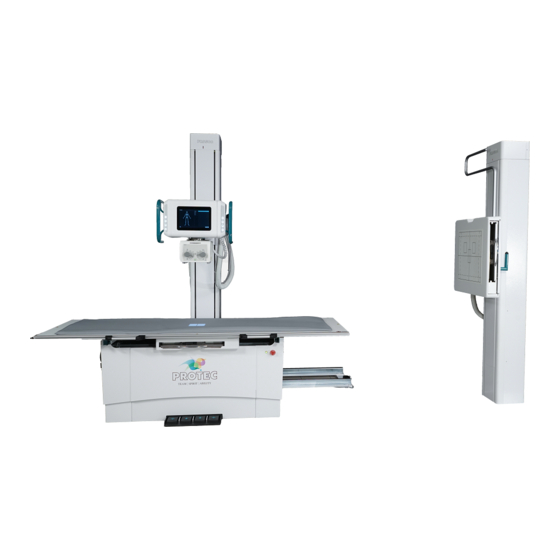

PRS 500 X in analogue base configuration
Version: 2.0
PROTEC GmbH & Co. KG
Issued: 2019-07-31
In den Dorfwiesen 14, 71720 Oberstenfeld, Germany
Subject to alterations
Telephone: +49 (0) 7062/92 55-0 E-Mail: protec@protec-med.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRS 500 X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Protec PRS 500 X

Summary of Contents for Protec PRS 500 X

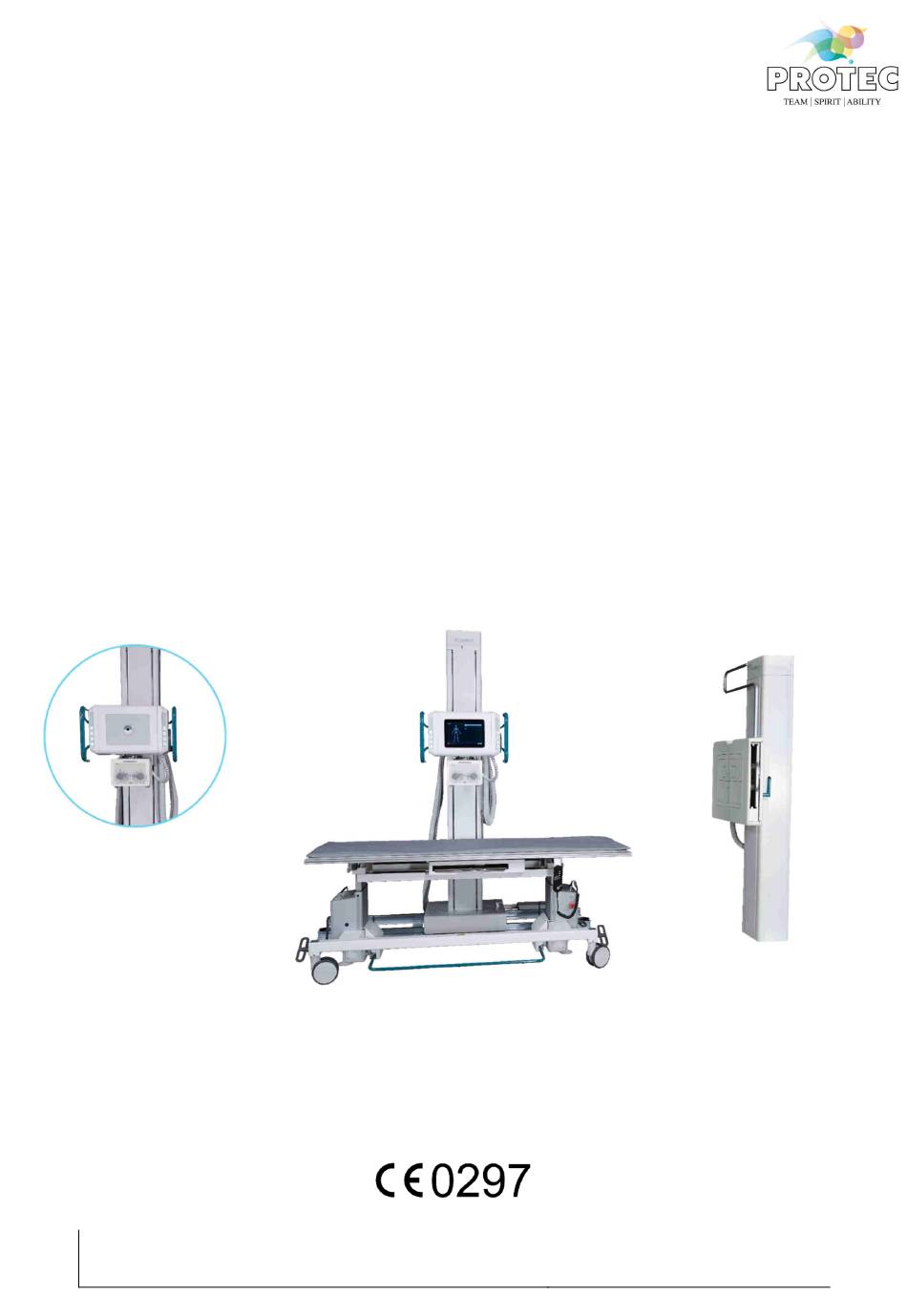

  • Page 1 PRS 500 X Basic diagnostic X-ray system Model/ID: 7066-9-8050L User Manual Ident. Nr. 5066-0-8002 PRS 500 X in analogue base configuration Version: 2.0 PROTEC GmbH & Co. KG Issued: 2019-07-31 In den Dorfwiesen 14, 71720 Oberstenfeld, Germany Subject to alterations...
