Control Elements and Displays

3.1

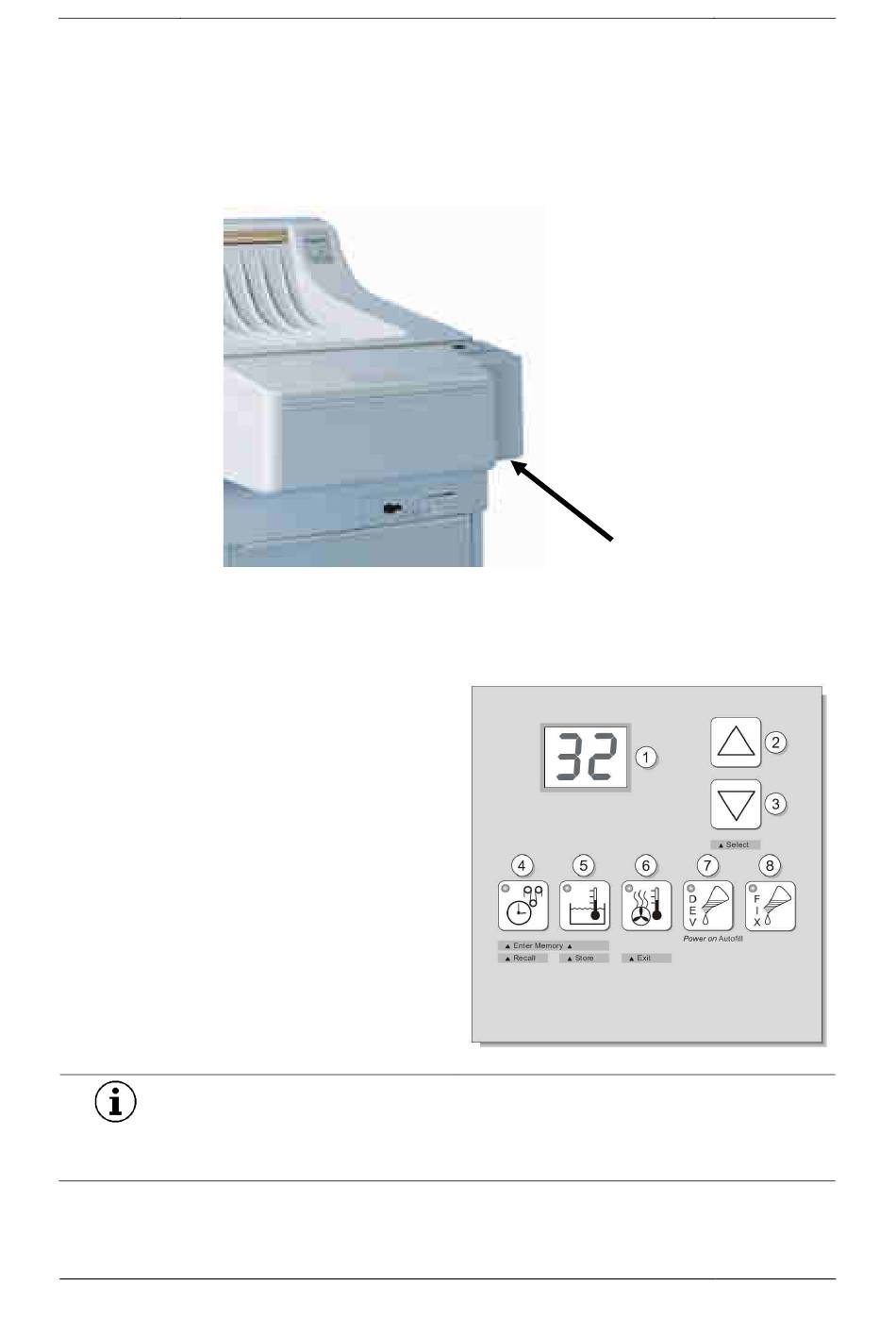

Main switch of the automated X-ray film processor

The automated X-ray film processor is switched on or off by the main switch.
Underneath the control panel.
3.2

Control Elements and Displays of the automated X-ray film processor

3.2.1

Standard Controls and Displays

1
Display working parameters
2
Arrow button „Up" = increase parameter value
3
Arrow button „Down" = decrease parameter
value
Mode Buttons
4
Processing time in minutes
5
Developer temperature in °C
6
Dryer temperature in °C
7
Developer replenishment time in seconds
8
Fixer replenishment time in seconds
NOTE
Safety function stops film transportation when cover is removed.
Therefore, keep cover placed on the machine when processing films.
