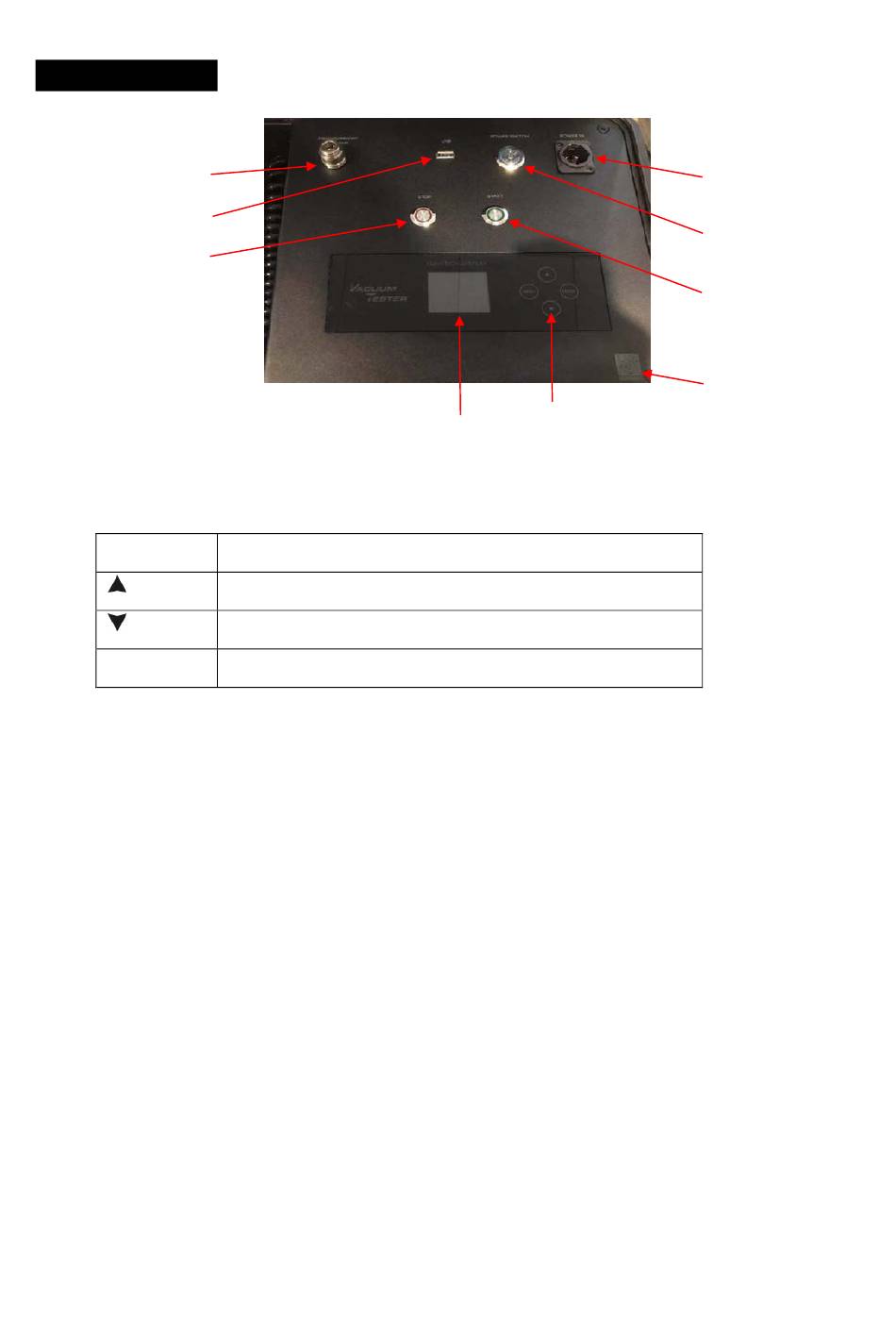

2. Control Panel

.
4 Pressure/Vacuum
To Fixture
5.USB
.
6 STOP
1. Display: To show the various menus and the selected function
2. Button:
MENU
UP
DOWN
ENTER
3. User Manual
4. Pressure/Vacuum To Fixture:
Used to connect the air hose to pump/transfer gas for the luminaire
5. USB:
Used to upgrade the system or export the test record
6. Stop:
Press to stop testing
7. Power In:
Used to connect to supply power
8. Power Switch:
Turn on/off the power
9. Start:
Press to start testing
To enter into move backward or leave the menu
To go backward to move up in the menu
To go forward to move down in the menu
To perform the desired functions
.
2 Button
.
1 Display
3C
.
7 POWER IN
.
8 POWER SWITCH
.
9 START
.
3 User Manual
