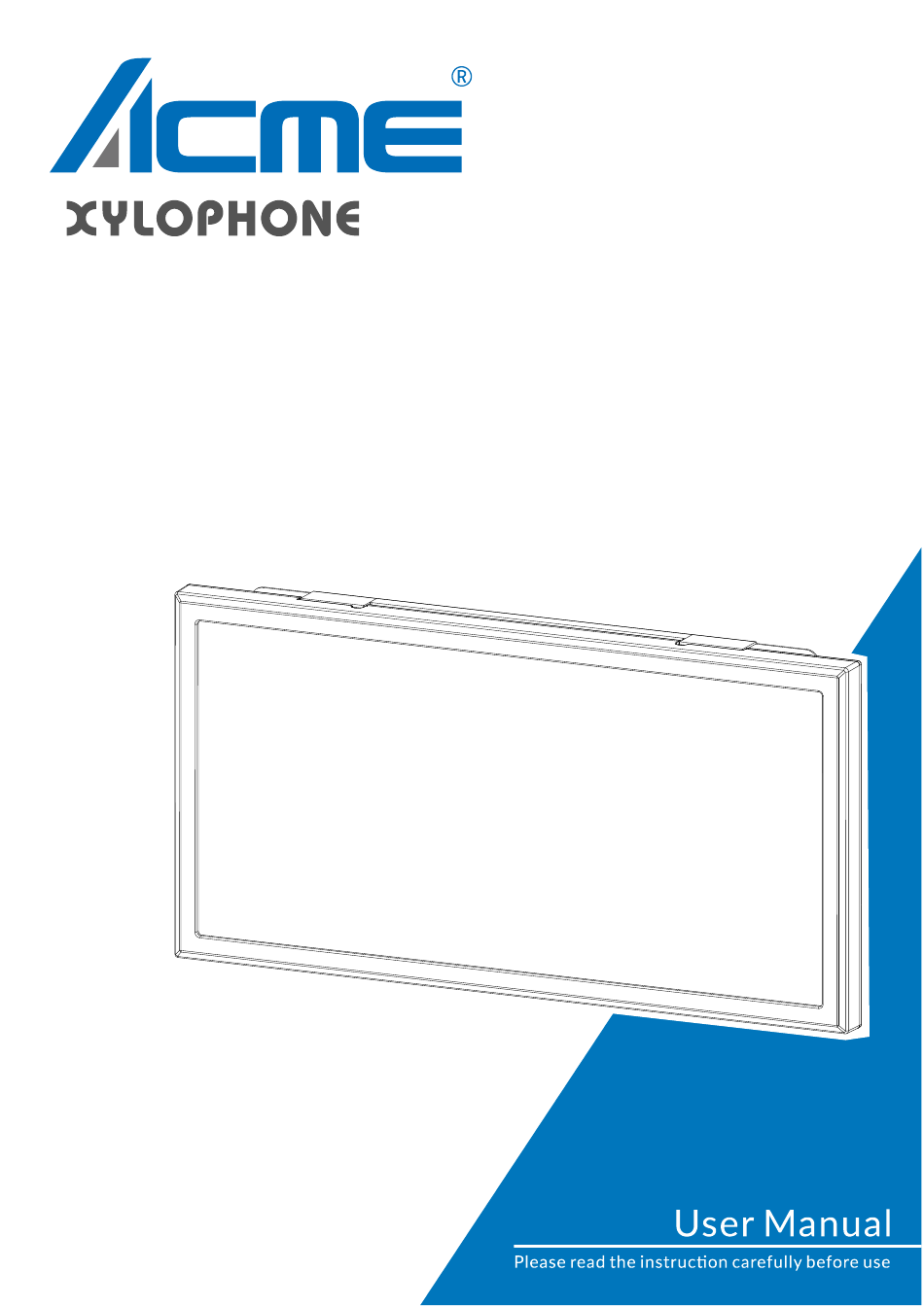

ACME XYLOPHONE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XYLOPHONE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME XYLOPHONE

Summary of Contents for ACME XYLOPHONE

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................4 03/ Control Panel ......................6 04/ Fixture Installation ....................7 05/ Control By Universal DMX Controller .............. 12 5.1 DMX512 Connection ................... 12 5.2 Address Setting ....................13 5.3 DMX512 Configuration ................13 06/ Error Information ....................

  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...

  • Page 5: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 180-240V~ 50/60Hz Power Consumption 150W 1x30W CW + 1x30W WW LED Light Source 796x0.25W RGB LED Color Temperature 3800K~6500K Beam Angle 42° 0-100% smooth dimming; outstanding strobe effect with variable Dimmer/Strobe speed DMX Channel 35/14 Channels DMX512 Control Control Mode...
  • Page 6 Photometric Diagram: - 5 -...

  • Page 7: 03/ Control Panel

    03/ Control Panel Version for installing clamp: Version for installing omega bracket: For DMX512 link, use 3-pin XLR cable to link the unit and DMX 1. DMX IN controller to input DMX signal (5-pin XLR cable is optional) For DMX512 link, use 3-pin XLR cable to link the next units to output 2.

  • Page 8: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 9 Steps for installing the clamp to the fixture: - 8 -...
  • Page 10 Steps for installing the omega bracket to the fixture: - 9 -...
  • Page 11 Fix the fixture on a flat level surface (such as the ceiling or a wall): 1. Drill four screw holes in the ceiling or wall. 2. Turn the two lock catch of the mounting bracket by 90 degrees to separate the mounting bracket.
  • Page 12 4. Put the back of the fixture into the mounting bracket and make the fixture flush with the mounting bracket. 5. Turn the two lock catch of the mounting bracket by 90 degrees to lock the fixture. - 11 -...

  • Page 13: 05/ Control By Universal Dmx Controller

    05/ Control By Universal DMX Controller 5.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 14: Address Setting

    5.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address between 1 and 512 so that the units can receive DMX signal. Please refer to the following diagram to address your DMX512 channel for the first 4 units. Unit 1 Unit 2 Unit 3...
  • Page 15 COOL WHITE 0%100% 000-255 RGB STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231 Slow Open Fast Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast 248-255...

  • Page 16: Effect Speed

    000-255 0%100% BLUE 5 000-255 0%100% RED 6 0%100% 000-255 GREEN 6 000-255 0%100% BLUE 6 000-255 0%100% RED 7 000-255 0%100% GREEN 7 000-255 0%100% BLUE 7 000-255 0%100% RED 8 000-255 0%100% GREEN 8 000-255 0%100% BLUE 8 000-255 0%100% EFFECT SELECT...
  • Page 17 060-069 Dimmer Curve: S Curve 070-209 Null 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-255 Null 14 Channels (Mode 2): CHANNEL VALUE FUNCTION WHITE STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231...
  • Page 18 GREEN 0%100% 000-255 BLUE 000-255 0%100% EFFECT SELECT 000-007 Null 008-025 Effect 1 026-043 Effect 2 044-061 Effect 3 062-079 Effect 4 080-097 Effect 5 098-115 Effect 6 116-133 Effect 7 134-151 Effect 8 152-169 Effect 9 170-187 Effect 10 188-205 Effect 11 206-223...
  • Page 19 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...
  • Page 20 125-255 WB_Blue_All 125-255 WB_Red_1 125-255 WB_Green_1 125-255 WB_Blue_1 125-255 …… …… WB_Red_8 125-255 WB_Green_8 125-255 WB_Blue_8 125-255 Reset Device Model ID (Displays the device operating hours) Device Hours (Displays the LED operating hours) Lamp Hours MF_Label ACME - 19 -...
  • Page 21 MENU SUBMENU OPTIONS DEV_Label ST 100 Ver_Label LED 1 (Displays the device temperature) Sensor LED 2 Linear Square Law Curve Inv SQ Law Dimmer Menu S Curve Fast Speed Smooth Blackout Hold No DMX Status Manual Show Primary Prim/Sec Secondary 1 Show Menu Secondary 2 Show 0...

  • Page 22: 06/ Error Information

    06/ Error Information Led Temperature Error Check whether the temperature detecting board is normal. Check whether the components of the temperature detecting board are damaged. Check whether the lead on the temperature detecting board is installed in place or disconnected. LED Timeout Use LED Too Hot Off When the fixture temperature reaches 80 ℃...

  • Page 23: 08/ Fixture Cleaning

    08/ Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on the application environment.
