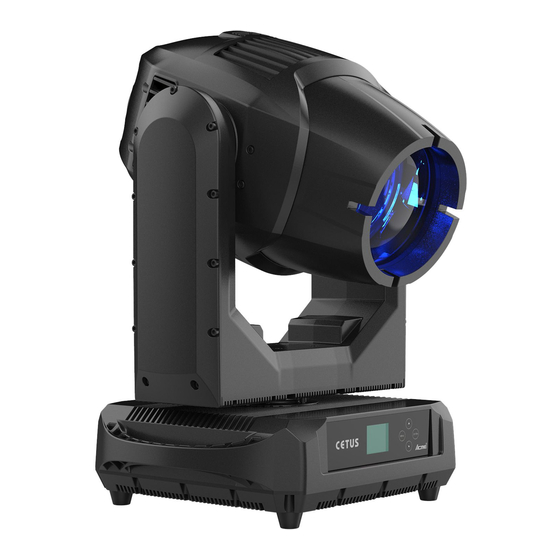

ACME Xperior XP-380 BEAM IP F User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XP-380 BEAM IP F

Advertisement

Table of Contents
loading

Related Manuals for ACME Xperior XP-380 BEAM IP F

Summary of Contents for ACME Xperior XP-380 BEAM IP F

  • Page 1 XP-380 BEAM IP F...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ................. 2 2. Technical Specifications ................. 3 3. Description ..................... 5 3.1 Control Panel ................5 4. Gobo/Color and Lamp ................6 4.1 Gobos/Color .................. 6 4.2 Light Source .................. 6 5. How To Set The Unit................7 5.1 Main Function ................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.

  • Page 4: Technical Specifications

    the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables. ...
  • Page 5 OLED Protection Rating： IP65 Color Temperature： 7800K Beam Angle： 3° Light Source OSRAM SIRIUS HRI®370W LL Optical system High efficiency optical system, delivering extremely powerful output High quality dichroic lenses Movement Pan: 540° Tilt: 270° Pan/Tilt moving speed adjustable. Automatic Pan/Tilt correction. Easy calibration and maintenance by magnetic home positioning.

  • Page 6: Description

    Dimension/Weight 330 mm 402× 330×628mm，30Kg 15.8"x12.9"x24.7"in, 66.1lbs 402 mm 3. Description 3.1 Control Panel 1. Monitor: 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go to move down in the menu ENTER To perform the desired functions 3.

  • Page 7: Gobo/Color And Lamp

    DMX 512 link, use 3 XLR cable to link the unit and DMX controller. 5. Power In: To connect to the mains supply 6. Power Out: To connect to the next fixture 4. Gobo/Color and Lamp 4.1 Gobos/Color DANGER! Install the gobos with the device switched off only. Unplug from mains before changing gobos! CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened!

  • Page 8: How To Set The Unit

    To protect the lamp, always turn off the lamp first (via control panel or DMX controller)  and let the unit run at least five minutes to cool down before switching off the mains supply. Never handle the lamp or luminary when it is hot. Do not touch the bulb with bare hands.
  • Page 10 DMX Functions To select DMX Functions press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, Channel Mode , DMX State or View DMX Value. DMX Address —DMX512 address setting To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 499/496, press the ENTER button to store.
  • Page 11 (normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Tilt Inverse To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal) or Yes (tilt inverse), press the ENTER button to store.
  • Page 12 Display Inverse Select Display Inverse, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to select No (normal display) or Yes (inverse display), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 13 idling one minute. (All channels value will become 0 after exiting Manual Test menu) Fixture Information Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to select Fixture use hour, Lamp Life Time, Lamp Time Reset, Temperature, Fan State or Firmware Version.
  • Page 14 Firmware Version Select Firmware Version, press the ENTER button to confirm, firmware version will show on the display, press the MENU button back to exit. Reset Functions Enter menu mode, select Reset Function, press the ENTER button to confirm, use the UP/DOWN button to select Pan/Tilt, Effect or All.

  • Page 15: Home Position Adjustment

    5.2 Home Position Adjustment Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.
  • Page 16 Color—Color home position adjustment Enter offset mode, Select Color, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.

  • Page 17: Error Information

    Frost—Frost home position adjustment Enter offset mode, Select Frost, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.

  • Page 18: Control By Universal Dmx Controller

    They may appear when turning on or resetting the unit, for some parts such as board P.C are damaged. Please contact the qualified maintenance. 6. Control By Universal DMX Controller 6.1 Connection ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference.

  • Page 19: Address Setting

    the units’ power is disconnected. 4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 0-511 (usually 0 & 1 are equal to 1). 5. The end of the DMX 512 system should be terminated to reduce signal errors. 6.
  • Page 20 14 Channels (Mode 1): CHANNEL VALUE FUNCTION 000-255 0 °  540° TILT 000-255 0 °  270° P/T SPEED 000-255 Fast  Slow COLOR 000-003 White 004-007 Color 1 008-011 Color 2 012-015 Color 3 016-019 Color 4 020-023 Color 5 024-027 Color 6...
  • Page 21 053-055 Gobo 16 056-127 Gobo shaking slow to fast 128-189 Clockwise Rotation Fast to Slow 190-193 Stop 194-255 Counter-Clockwise Rotation Slow to Fast PRISM1 000-007 Close 008-255 Open R-PRISM 1 000-127 0% ~ 100% 128-189 Counter-Clockwise rotation, fast  slow 190-193 Stop 194-255...
  • Page 22 140-149 Reset XY 150-159 Reset Effect 160-199 No Function 200-209 Reset All 210-229 No Function 230-239 Lamp Off 240-255 No Function 17 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0 °  540° Pan Fine 000-255 0% ~ 100% TILT 000-255 0 °...
  • Page 23 011-013 Gobo 2 014-016 Gobo 3 017-019 Gobo 4 020-022 Gobo 5 023-025 Gobo 6 026-028 Gobo 7 029-031 Gobo 8 032-034 Gobo 9 035-037 Gobo 10 038-040 Gobo 11 041-043 Gobo 12 044-046 Gobo 13 047-049 Gobo 14 050-052 Gobo 15 053-055 Gobo 16...

  • Page 24: Troubleshooting

    FOCUS 000-255 0% ~ 100% Focus Fine 000-255 0% ~ 100% Frost 000-007 Close 008-255 Open SPECIAL FUNCTION 000-069 No Function 070-079 Blackout While Pan Tilt Move Enable 080-089 Blackout While Pan Tilt Move Disable 090-099 Blackout While Color Move Enable 100-109 Blackout While Color Move Disable 110-119...
  • Page 25 4. Try to use another DMX controller. 5. Check to see if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit. C. One of the channels is not working well 1.

  • Page 26: Maintenance And Cleaning

    8. Maintenance and Cleaning Maintenance: Ballast A. As the pictures shown above, please replace the cable or cable joints immediately once they’ve turned yellow. B. Do maintain the fixtures every two months and make sure that all the screws and terminals have been locked firmly to make sure the normal performance of the fixtures.
  • Page 27 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 28 Innovation, Quality, Performance...
