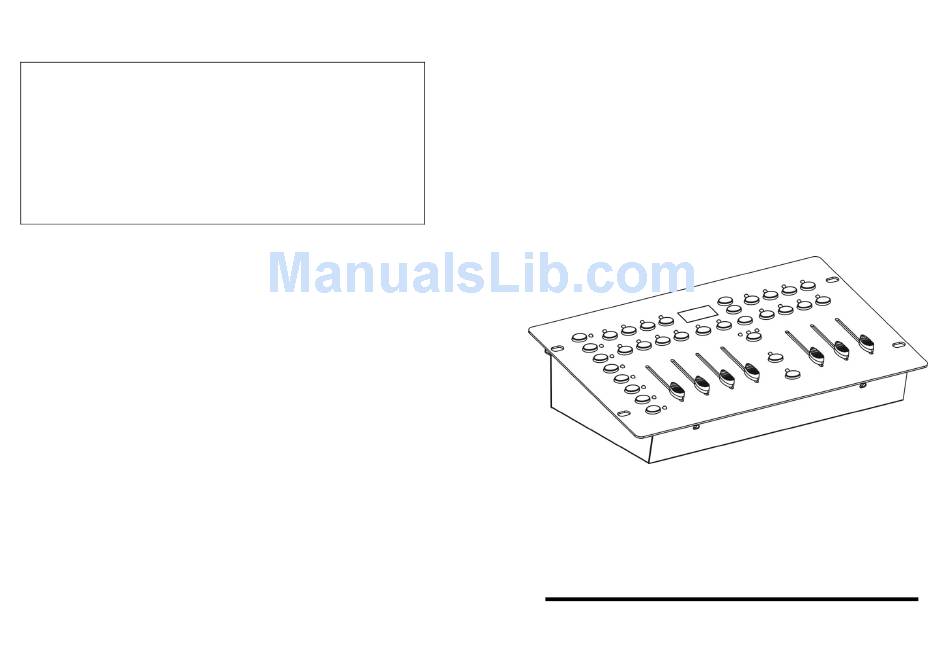

Technical Specification

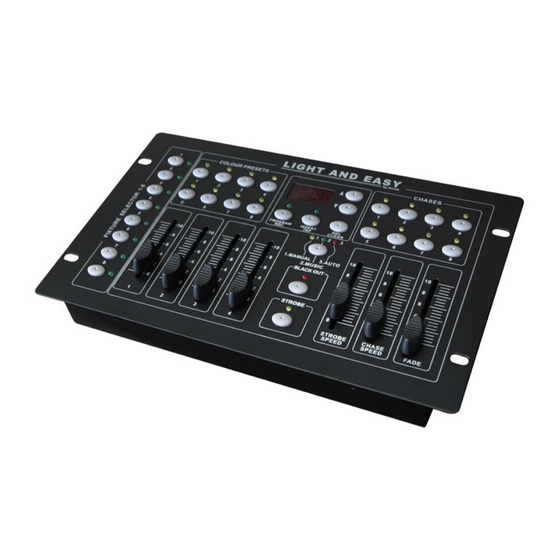

LIGHT AND EASY
Power Input .......................................................9-12 DC
DMX Output ..........................................................3 pin female XLR
Audio Input .........................................................By built-in microphone
LED-0408
Dimensions..........................................................280 x 170 x 66 mm
Weight......... ..................................... ......................1.8 kgs
User Guide
Please read these instructions carefully before use
Innovation, Quality, Performance
15-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED-0408 and is the answer not in the manual?

Questions and answers

Related Manuals for ACME LED-0408

Summary of Contents for ACME LED-0408

  • Page 1 Technical Specification LIGHT AND EASY Power Input ....…………………………..…...9-12 DC DMX Output .........……………..3 pin female XLR Audio Input .....………………..………….By built-in microphone LED-0408 Dimensions.....………………..……….280 x 170 x 66 mm Weight......……........1.8 kgs User Guide Please read these instructions carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Features ....................... 2  2. General Instruction ..................3  EC Declaration of Conformity 3. Overview ...................... 4  3.1 Front View ................... 4  We declare that our products (lighting equipments) comply with the following 3.2 Rear View ................... 5  specification and bears CE mark in accordance with the provision of the 4.

  • Page 3: Features

    4. 8 individual button s for selecting 8 groups of lighting fixtures 5. LED display for easy navigation CA-8F for 3 seconds to active the LED-0408. When the STAND BY indicator is blinking, 6. 8 Colour pre-set buttons with 4 Banks, 32 pre-set colours in total.

  • Page 4: General Instruction

    There are 3 kinds of black out mode that indicate by the LED. This unit must only be operated by adults. DO NOT allow children to tamper or play 1 LED off: LED-0408 is active. with it. 2 LED on: Pressing BLACK OUT button, corresponding LED on, NEVER use the unit under the following conditions: all units blackout and outputs become “0”...

  • Page 5: Overview

    the MANUAL LED on indicating into Manual Mode. 3. Overview 3.1 Front View 4 Press UP/DOWN button to change the step, UP to the last step, DOWN to the next step. B. Sound Mode 1 Insure the LED above BLACK OUT is off. 2 Press CHASE 1-8 button to run the CHASE, the display will show the present CHASE.

  • Page 6: Rear View

    Turn on the power, the controller access to the last control status of COLOUR PRESET desired. LED-0408 or CA-8F. Pressing BLACK OUT button to switch to LED-0408 or CA-8F control. Follow functions will be available under 3 Press COLOUR PRESET 1-8 button to run COLOUR PRESET.

  • Page 7: Store Colour Preset

    stored). Enter programming mode: hold PROGRAM/REC button for 3 seconds, 4 Press UP/DOWN button to choose the step desired to delete ( if the LED above the button blinking indicating program in active. you want to delete the fifth step, set the present display to “ST05”). 4.1 Store Colour Preset 5 Press DEL/CLEAR button, all LEDs blinking for 3 times 1 Enter programming mode.

  • Page 8: Program Chase

    3 Hold DEL/CLEAR button, press COLOUR PRESETS 1-8 3 Press INSERT/TAP button, the LED above it will on, the present button, all LED blinking for 3 times, the corresponding LED off step will show on the display (for example, it will show “ST00” indicating the colour preset deleted succeed.
